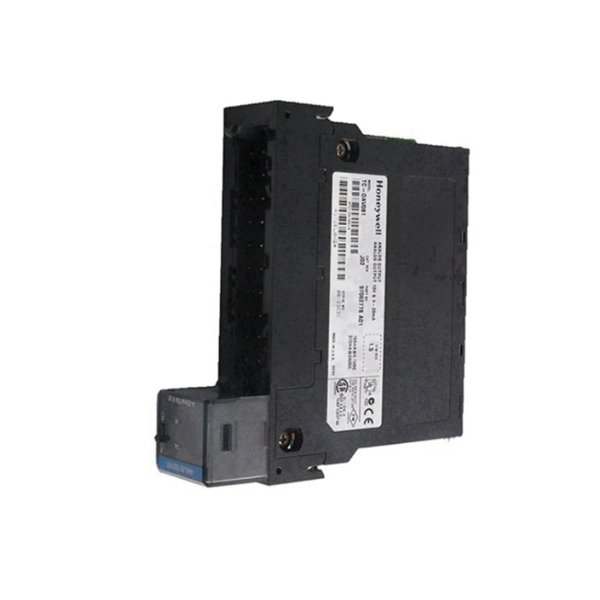

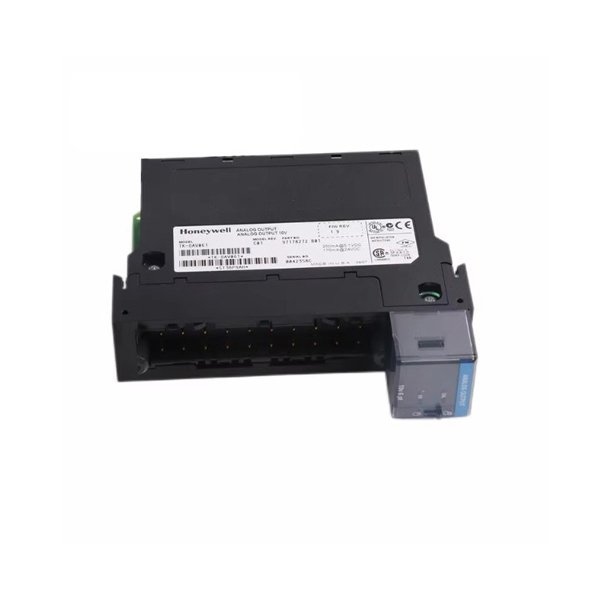

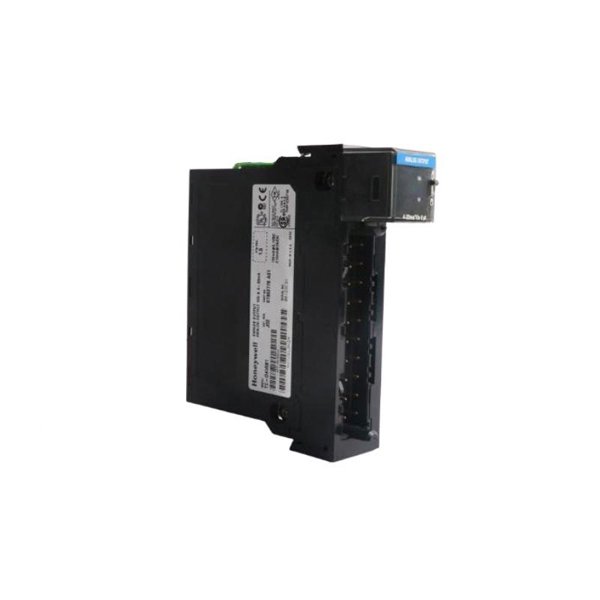

Honeywell TK-OAV061 Analog Output Module

The Honeywell TK-OAV061 is a high-performance analog output module designed for precise and stable analog signal control. It belongs to the TDC 3000 system family and is primarily used in process automation environments.

Technical Specifications

Applications

• Distributed control systems (DCS)

• Industrial process automation

• Oil and gas control systems

• Power plant instrumentation

• Chemical and pharmaceutical industries

• Batch control and monitoring systems

Product Advantages

• High-precision 12-bit analog output

• Robust and durable design

• Compatible with Honeywell TDC 3000 series

• Stable performance across industrial environments

• Easy integration into existing Honeywell systems

• Compact size for space-saving installations

Frequently Asked Questions (FAQ)

Q1: What is the function of the TK-OAV061 module?

A1: It provides 8 channels of 4–20 mA analog current output for process control systems.

Q2: Is it compatible with Honeywell TDC 3000 systems?

A2: Yes, it is designed specifically for the TDC 3000 control architecture.

Q3: What kind of signals does it output?

A3: It outputs analog current signals ranging from 4 to 20 mA.

Q4: Can it be used in harsh industrial environments?

A4: Yes, it operates reliably within a temperature range of 0°C to 60°C.

Q5: What is the resolution of the output?

A5: The module features 12-bit resolution for fine signal control.

Q6: What is the accuracy of the output signals?

A6: The output accuracy is ±0.1% of the signal span.

Q7: How is the module powered?

A7: It is powered by a 24 VDC external power source.

Q8: What is the weight and size of the unit?

A8: It measures 114 × 50 × 120 mm and weighs 0.4 kg.

Q9: Is it easy to integrate into existing systems?

A9: Yes, its design allows easy integration with Honeywell control systems.

Q10: What industries commonly use this module?

A10: It’s widely used in oil & gas, power, chemical, and manufacturing industries.
