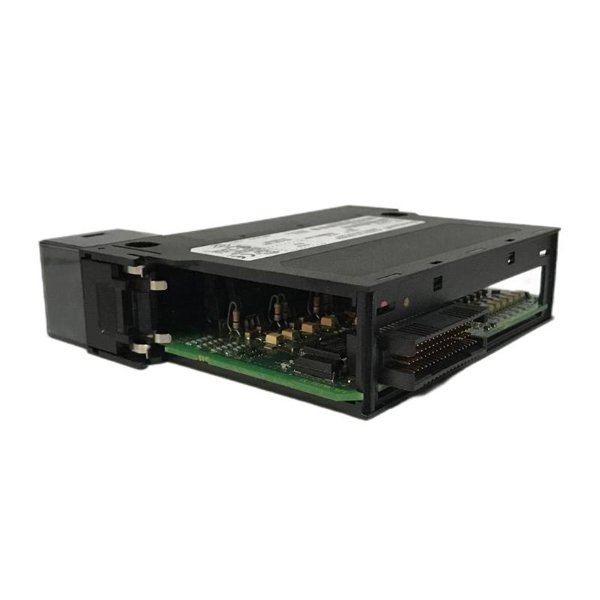

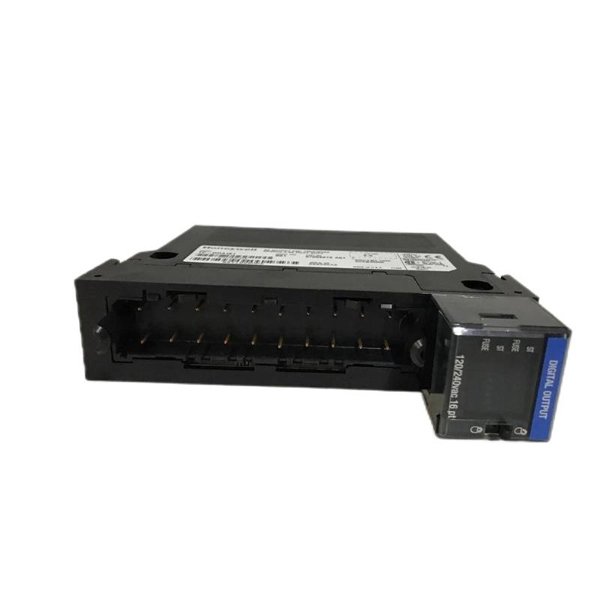

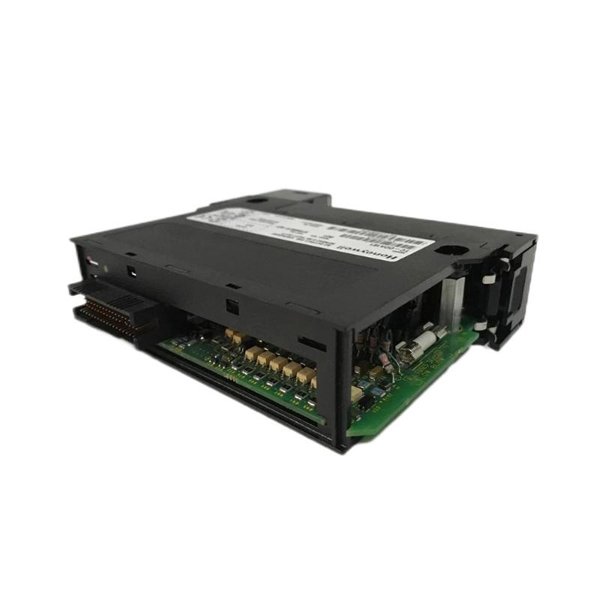

The Honeywell TC-ODA161 is a 16-point AC digital output module designed for the Experion LS control platform. It provides reliable switching of 120/220 VAC loads, making it ideal for interfacing field devices such as relays, indicators, and contactors. Built for industrial environments, it ensures dependable operation in a wide range of automation applications.

Technical Specifications

Applications

• Factory automation systems

• Process control I/O systems

• Power distribution panels

• Machine control systems

• Building management systems

• OEM equipment integration

Product Advantages

• High-density 16-point AC output in a compact form

• Compatible with the Experion LS platform

• Electrical isolation enhances system safety

• Fast switching for real-time control

• Designed for long operational life

• Easy integration with other Honeywell modules

Frequently Asked Questions (FAQ)

Q1: What type of loads can the TC-ODA161 control?

A1: It can switch AC-powered loads like relays, indicators, contactors, and solenoids.

Q2: Is the module compatible with other Honeywell controllers?

A2: Yes, it is part of the Experion LS I/O system and works seamlessly with compatible Honeywell controllers.

Q3: Can I mix different voltage levels on the same module?

A3: No, all outputs should be operated within the specified AC voltage range uniformly.

Q4: How is the module protected against electrical surges?

A4: It includes built-in electrical isolation and robust circuitry for noise and surge immunity.

Q5: Does the TC-ODA161 support diagnostic feedback?

A5: No, it does not have onboard diagnostics for output status or fault detection.

Q6: What is the wiring method for this module?

A6: It uses screw-terminal connections suitable for industrial-grade cabling.

Q7: Can this module be used in hazardous areas?

A7: Not directly. It requires external barriers or certified enclosures for hazardous environments.

Q8: Is hot-swapping supported on the TC-ODA161?

A8: No, the module should be powered down before insertion or removal.

Q9: What certifications does this module carry?

A9: It complies with industrial standards such as CE and UL, depending on the region.

Q10: How does the module handle overcurrent situations?

A10: It relies on external circuit protection like fuses or breakers; it does not include internal fusing.
