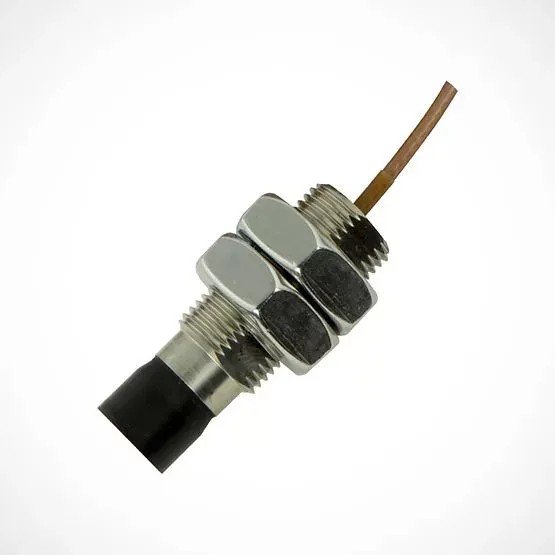

Emerson EPRO PR6424/01 CS is a Non-Contact Sensor for Turbomachinery Applications. Designed for critical turbomachinery applications such as steam, gas, and hydro turbines, compressors, pumps, and fans, this sensor measures radial and axial shaft dynamic displacement, position, eccentricity, and speed/key.

Specifications

• Sensitivity/Linearity: 4 V/mm (101.6 mV/mil) ±1.5% max
• Air Gap (Center): Approx. 2.7 mm (0.11″) Nominal
• Range (Static): ±2.0 mm (0.079″)
• Range (Dynamic): 0 to 1,000µm (0 to 0.039″)
• Shaft Diameter: ≥80mm
• Weight (Sensor & 1M Cable, No Armor): 200 grams (7.05 oz)
• Operating Temperature: -35 to 180°C (-31 to 356°F)
• Shock and Vibration: 5g @ 60 Hz @ 25°C (77°F)

Features

• Options include field or enclosure mounting
• Suitable for small to large shaft measurements
• Complies with industry safety ratings
• Eddy current sensors offer focused measurement areas compared to air-coil-based sensors
