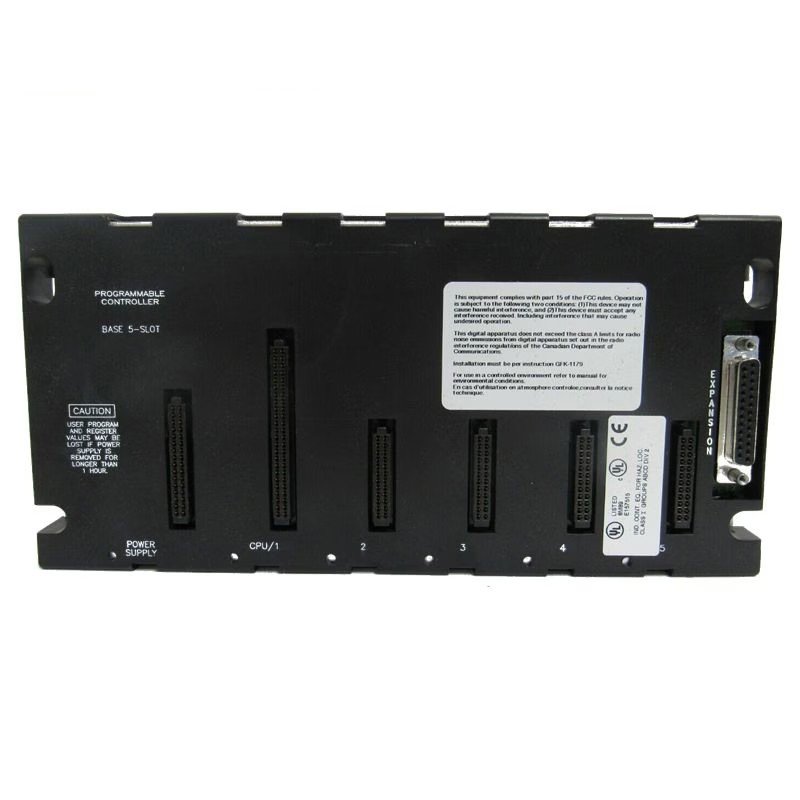

The GE Fanuc IC693CHS397H is a 5-slot modular CPU baseplate designed for GE Fanuc Series 90-30 PLC systems. It provides flexibility for automation system configurations, offering expansion possibilities with dedicated slots for the power supply, CPU, and I/O modules. This baseplate enables efficient integration and customization of control systems to meet diverse industrial automation needs.

Technical Specifications

• Model Number: IC693CHS397H
• Manufacturer: GE Fanuc (part of Emerson Automation Solutions)
• Type: 5-slot modular CPU baseplate
• Number of Slots: 5
  • Power Supply Slot: Slot 0, dedicated for the power supply module
  • CPU Slot: Slot 1, for CPU or special option module
  • I/O Slots: Slots 2 and above, for I/O or option modules
• Expansion Capability: Supports remote baseplates via a 25-pin D-type female expansion connector
• Dimensions: 10.6 x 7.0 x 3.0 inches
• Weight: 2.2 lbs
• Operating Voltage: +5VDC
• Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
• Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
