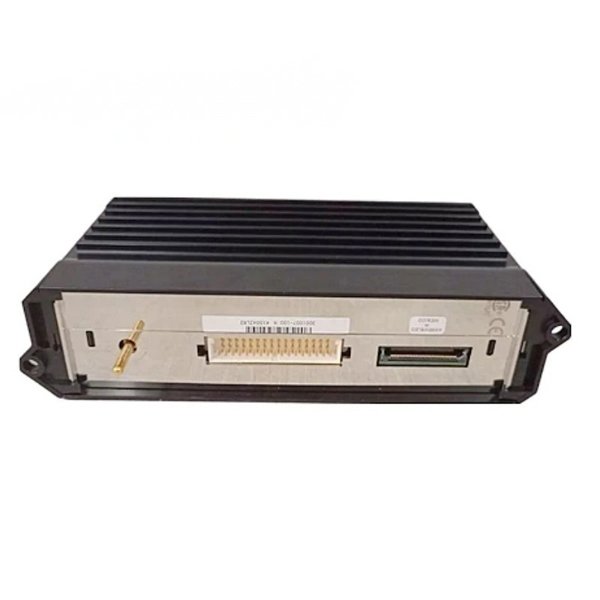

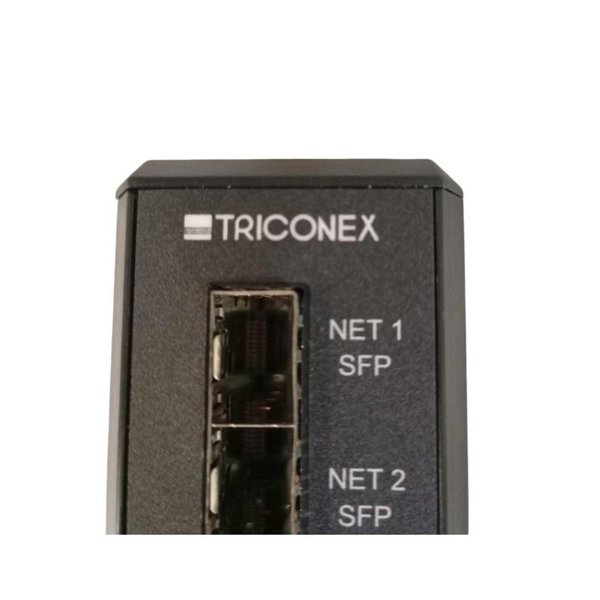

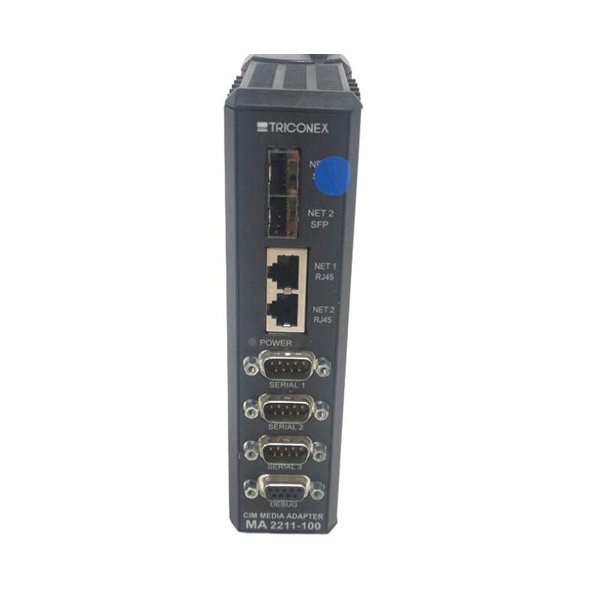

Triconex 2211-100 Analog Input Modules

Triconex modules like the 2211-100 are built to meet stringent international safety standards, combining advanced fault tolerance with triple modular redundancy (TMR) architecture. These systems help prevent unsafe events, reduce downtime, and protect both personnel and assets.

Technical Specifications

Product Applications

• Emergency Shutdown Systems (ESD)

• Burner Management Systems (BMS)

• Turbine Control and Protection Systems

• Fire and Gas Detection Systems (FGS)

• Boiler control and safety interlocks

• Refining, petrochemical, and chemical plant safety systems

• Critical control systems in nuclear and thermal power generation

These applications benefit from the high integrity and reliability offered by Triconex TMR technology.

Product Advantages

• High reliability: Triple Modular Redundancy (TMR) ensures that single-point failures do not compromise system safety.

• Advanced diagnostics: Real-time fault detection and isolation help maintain system integrity and availability.

• Scalability: Easily integrates into small or large safety systems, allowing expansion as plant requirements grow.

• Compliance: Certified to meet rigorous international safety standards including IEC 61508 SIL3.

• Hot replacement capability: Modules can be replaced without system shutdown, minimizing downtime.

• Longevity: Built for harsh environments and continuous operation, ensuring a long lifecycle.

FAQ

Q1: What makes the Triconex 2211-100 suitable for critical safety applications?

A1: Its TMR architecture, built-in diagnostics, and compliance with SIL3 standards make it highly reliable and safe.

Q2: Can I replace the 2211-100 module without shutting down the entire system?

A2: Yes, it supports hot-swap replacement, allowing maintenance without system downtime.

Q3: What type of outputs does the 2211-100 provide?

A3: It is a digital output module, typically providing discrete signals for actuators, relays, or alarms.

Q4: Which industries use the 2211-100 most?

A4: Mainly oil & gas, chemical plants, power generation, and other safety-critical process industries.

Q5: Is the module certified for international safety standards?

A5: Yes, it is certified to IEC 61508 SIL3, and other standards such as CE, UL, and CSA.

Q6: How many output channels are available?

A6: The module typically offers 32 discrete output channels.

Q7: What is the operating temperature range of the module?

A7: It operates reliably from -20°C to +60°C.

Q8: How heavy is the Triconex 2211-100?

A8: The module weighs 1.8 kg.

Q9: Can it be integrated into existing Triconex systems?

A9: Yes, it’s designed for seamless integration within the Triconex family.

Q10: Does it include diagnostic functions?

A10: Yes, it features built-in diagnostics and fault detection for each channel.
