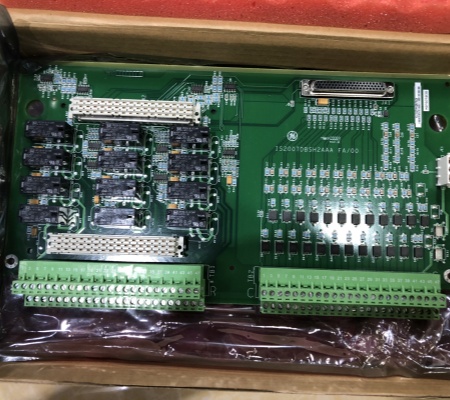

The GE IS200TDBSH2A is a discrete simplex card terminal board used in GE industrial control systems. It manages discrete I/O signals in a simplex configuration, binary on/off signals.

The IS200TDBSH2A handles control or monitoring of devices such as relays, switches, sensors and actuators. It also features discrete signals with two possible states, on or off.

The simplex configuration uses a single signal path for input or output with no redundancy. It is used where system simplicity and cost-effectiveness are a priority and where redundancy or bidirectional communication is not required.

The card is equipped with terminal block connections to easily connect discrete field devices directly to the card. This interface is particularly convenient for maintenance and troubleshooting in industrial environments.

Frequently asked questions about the product are as follows:

-What kind of input and output signals does the IS200TDBSH2A handle?

The IS200TDBSH2A module is designed to handle digital I/O signals, it handles simple on/off, high/low or true/false signals.

-What is the difference between simplex and redundant configurations?

Simple is a single controller and a single module, failure affects the entire system. RedundancyIn a redundant system, there are two controllers/modules working together, if one fails, the backup controller/module can take over to ensure continuous operation.

-Can the IS200TDBSH2A module be used in non-turbine applications?

Although it is primarily used in turbine control systems, its digital I/O capabilities make it suitable for any industrial automation application that requires simple discrete control.
