Manufacturer:ABB
Product Number:TB846 3BSE021439R1
Product Type:Redundant ModuleBus Cable Adaptor
Origin:Sweden (SE)
Dimensions:43 × 31.5 × 186 mm
Weight:0.18 kg
Views:51
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

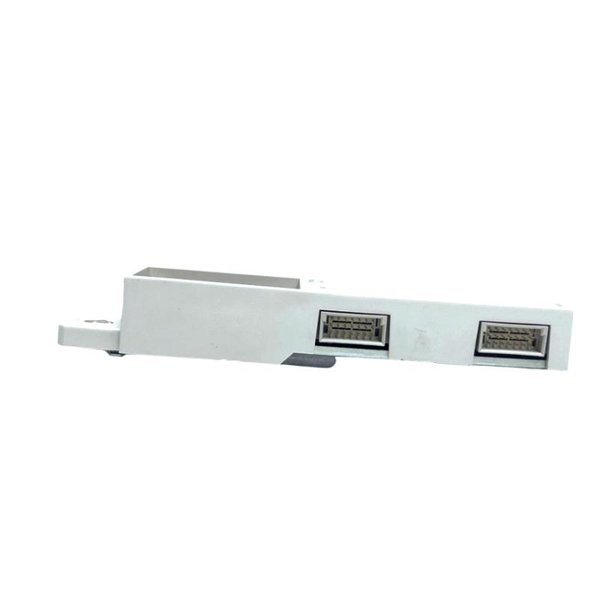

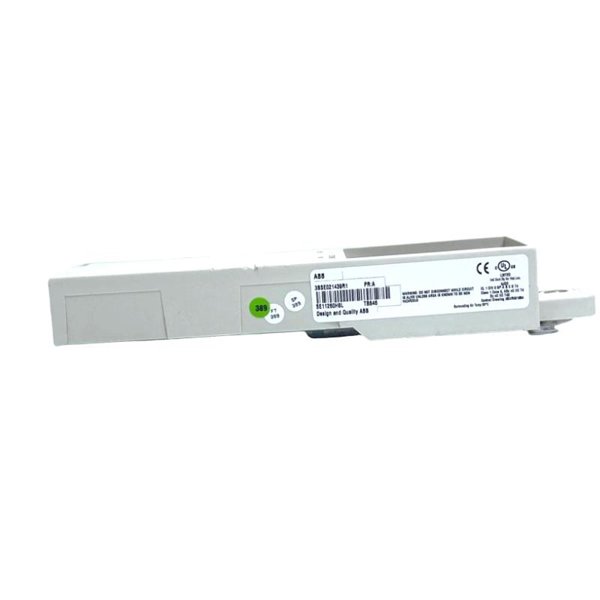

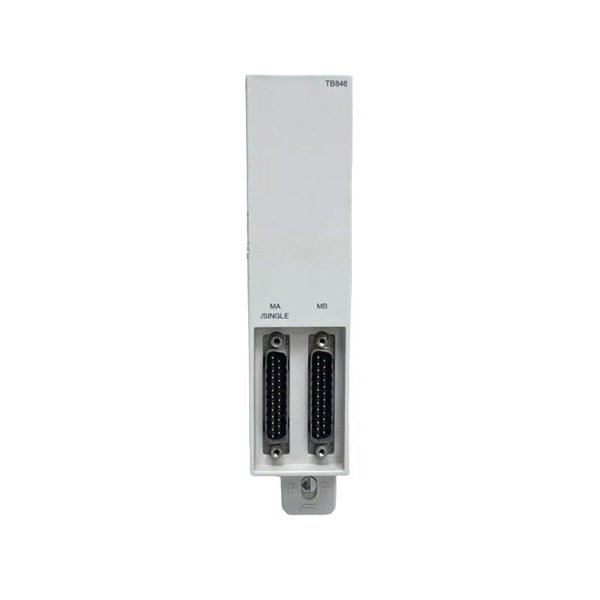

The ABB TB846 3BSE021439R1 is a redundant ModuleBus cable adaptor designed for use within the ABB Ability™ System 800xA® architecture. It facilitates redundant and extended ModuleBus connectivity when used with components such as TB845 and TK801V0xx cables. It also supports optical extension with TB842.
Enables redundant ModuleBus extension.
Supports distributed I/O modules across multiple DIN rails.
Compatible with both electrical and optical extension configurations.
Certified for harsh environments including marine and hazardous locations.
High reliability due to robust industrial design.
Distributed control systems in industrial automation.
Process control networks requiring extended or redundant I/O configurations.
Environments requiring secure and certified bus communication, including marine and hazardous areas.
ABB System 800xA and Symphony Plus installations.
| Parameter | Value |
|---|---|
| Product Type | Redundant ModuleBus Cable Adaptor |
| Article Number | 3BSE021439R1 |
| System Compatibility | ABB Ability™ System 800xA®, Symphony Plus |
| Interface | Used with TB845 and TK801V0xx, or TB842 |
| Dimensions (W × D × H) | 43 × 31.5 × 186 mm |
| Weight | 0.18 kg |
| Protection Class | IP20 (IEC 60529) |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -25 to +70 °C |
| Humidity | 5 to 95% RH (non-condensing) |
| Safety Standards | IEC 61131-2, UL 61010-1, UL 61010-2-201 |
| EMC Compliance | EN 61000-6-4, EN 61000-6-2 |
| Hazardous Location Compliance | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine Certifications | ABS, BV, DNV, LR |
| Corrosion Protection | ISA-S71.04 G3 |
| Overvoltage Category | IEC/EN 60664-1 |
| RoHS Compliance | DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
Q1: What is the primary function of the TB846?
A1: It serves as a redundant ModuleBus cable adaptor to extend bus connections across multiple DIN rails or optically with TB842.
Q2: Can TB846 be used in optical ModuleBus extensions?
A2: Yes, when used in combination with TB842.
Q3: Is TB846 suitable for use in hazardous areas?
A3: Yes, it is certified for C1 Div 2, Zone 2, and ATEX Zone 2 environments.
Q4: What components must TB846 be used with for electrical extension?
A4: It is used together with TB845 and two TK801V0xx cables.
Q5: What type of system is TB846 designed for?
A5: It is designed for ABB System 800xA® and Symphony Plus systems.
Q6: Is TB846 compliant with marine certifications?
A6: Yes, it is certified by ABS, BV, DNV, and LR.
Q7: What environmental protection class does the TB846 meet?
A7: It has IP20 protection according to IEC 60529.
Q8: What is the pollution degree classification?
A8: Pollution Degree 2 as per IEC 60664-1.
Q9: What corrosion protection standard does TB846 meet?
A9: It conforms to ISA-S71.04 G3.
Q10: Does TB846 support redundant configurations?
A10: Yes, it supports redundant ModuleBus configurations for enhanced system reliability.
