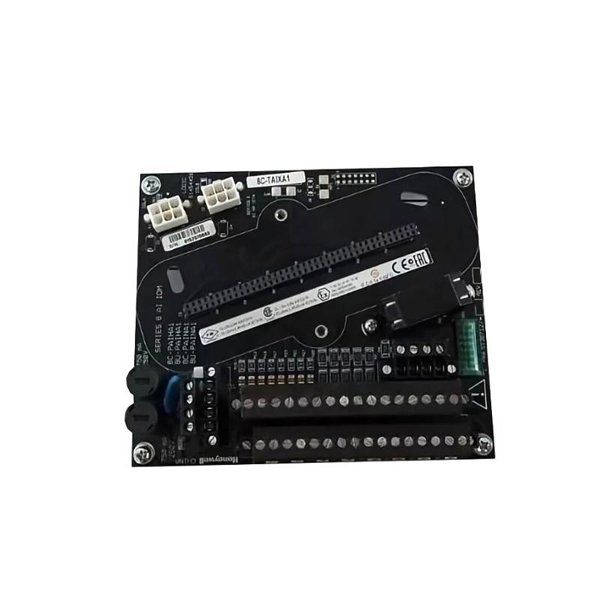

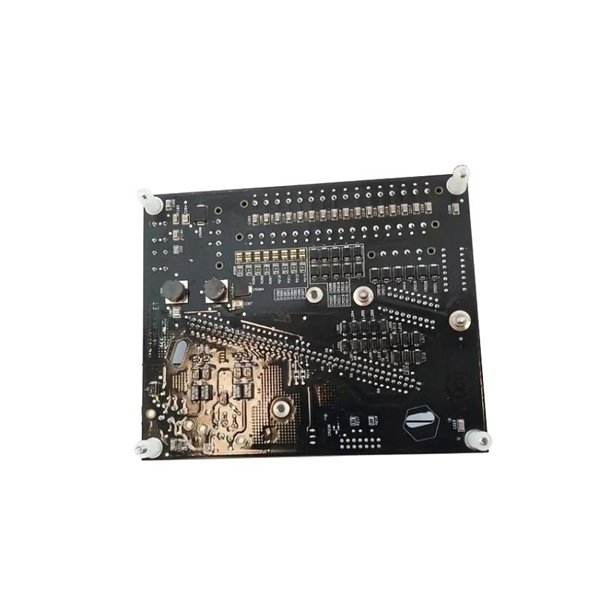

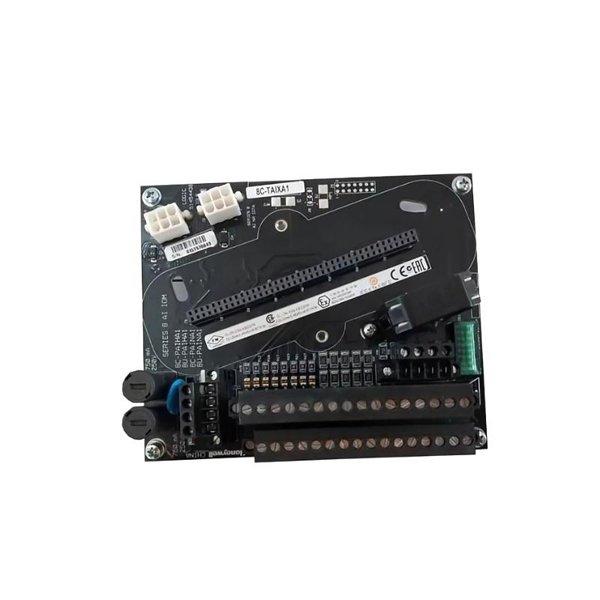

The Honeywell 8C-TAIXA1 (51307127-175) is a versatile analog input module designed to integrate with Honeywell’s Experion Process Knowledge System (PKS) and other distributed control systems. It provides reliable analog signal acquisition from field devices such as transmitters and sensors, converting various analog signals into precise digital data that can be utilized by control systems for process automation.

This module is crafted for use in challenging industrial environments, where durability and accuracy are paramount. It supports multiple input types and ranges, allowing it to interface flexibly with a wide variety of sensors. Built with a rugged construction and advanced electrical isolation, the 8C-TAIXA1 ensures signal integrity and system protection against electrical interference.

Product Specifications

Applications

The Honeywell 8C-TAIXA1 Analog Input Module is employed in a wide range of industrial and process control environments, including but not limited to:

• Oil & Gas: Monitoring pressure, temperature, and flow sensors for safe and efficient operations.

• Chemical and Petrochemical Plants: Acquisition of analog signals from critical process variables ensuring quality and safety.

• Power Generation: Input module for controlling boilers, turbines, and auxiliary systems by collecting real-time analog data.

• Water and Wastewater Treatment: Accurate measurement of pH, conductivity, turbidity, and other analog signals in treatment plants.

• Pharmaceutical Manufacturing: Process control through precise analog measurements ensuring product consistency and compliance.

• Food & Beverage: Monitoring of process parameters in automated production lines to maintain hygiene and quality standards.

• General Industrial Automation: Used in factory automation systems for collecting sensor signals and providing feedback for control.

Advantages

• High Precision: Offers an accuracy of ±0.05% ensuring dependable data for critical control processes.

• Versatile Input Support: Accepts various analog input types such as 4-20 mA, 0-10 V, and resistance signals.

• Robust Construction: Designed for reliable operation in harsh industrial environments with strong electrical isolation.

• Flexible Installation: Supports both DIN rail and panel mounting to accommodate different cabinet layouts.

• Quick Response: Low latency signal processing with a response time under 100 milliseconds.

• Electrical Noise Immunity: Optical isolation helps prevent signal distortion caused by transient voltages or electrical noise.

• Easy Maintenance: Screw terminal wiring facilitates fast installation and trouble-free servicing.

• Compatibility: Seamlessly integrates with Honeywell Experion PKS and other Honeywell Distributed Control Systems.

• Compact Size: Space-efficient form factor enables dense installation without compromising accessibility.

• Certified Reliability: Meets relevant international safety and EMC standards, assuring compliance and operational safety.

FAQ

1. What types of analog inputs does the 8C-TAIXA1 support?

   It supports 4-20 mA current, 0-10 V voltage, and resistance inputs.

2. How many input channels does this module have?

   There are 8 independent analog input channels.

3. What level of accuracy does the module provide?

   The accuracy is ±0.05% of full scale.

4. What are the physical dimensions and weight of the module?

   Dimensions: 220 x 120 x 152.4 mm; Weight: 0.3 kg.

5. Is the module electrically isolated from the control system?

   Yes, it has optical isolation for each input channel.

6. What is the operational temperature range?

   The module operates between -20°C and +70°C.

7. Can it be mounted on a DIN rail?

   Yes, it supports DIN rail and panel mounting options.

8. Which Honeywell control systems are compatible with this module?

   Compatible with Honeywell Experion PKS and other Honeywell DCS systems.

9. How fast does the module respond to input signal changes?

   It has a response time of less than 100 milliseconds.

10. Does this module comply with any industry standards?

    Yes, it is CE and UL certified depending on configuration.
