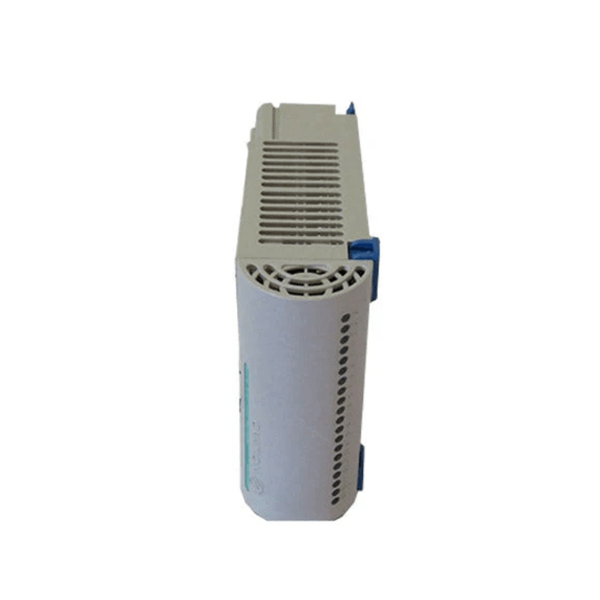

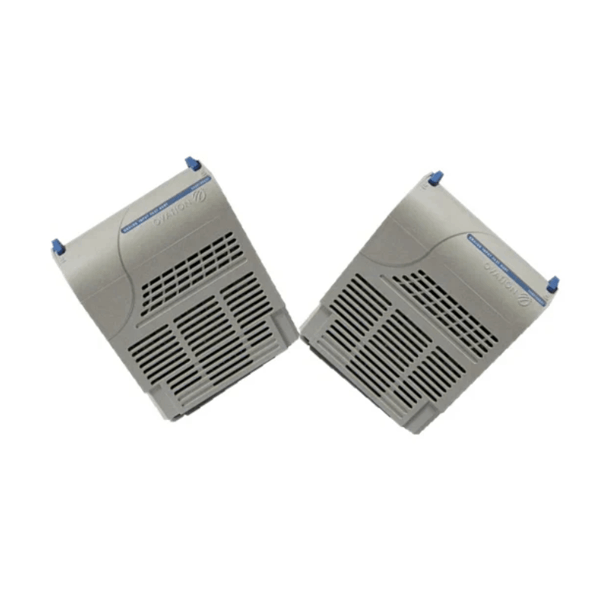

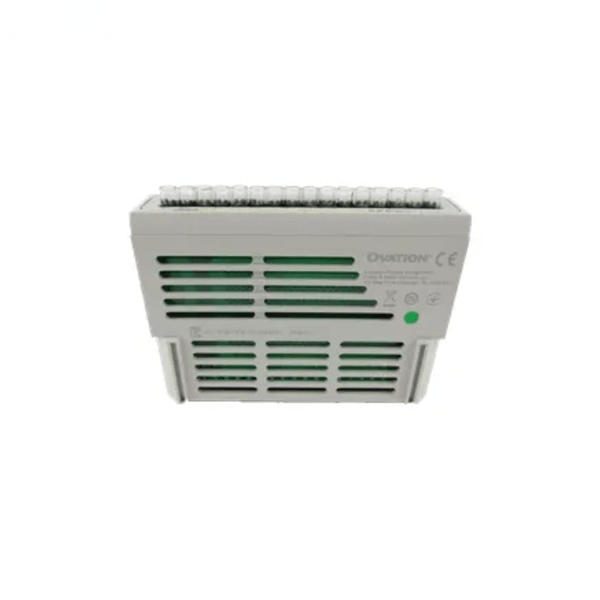

Designed for robust operation, the 5X00411G01 provides analog and/or digital input/output handling depending on configuration, supporting a wide range of field devices. The module is hot-swappable, allowing maintenance without interrupting plant operations. It plays a key role in ensuring that plant instrumentation, sensors, and actuators function harmoniously with the control infrastructure.

Technical Specifications

Product Applications

• Power Generation: Used extensively in fossil, nuclear, and renewable power plants for monitoring and controlling generator status, turbine functions, and balance-of-plant operations.

• Water & Wastewater Management: Interfaces with pump stations, valve controllers, and flow meters for real-time water quality and distribution control.

• Chemical Processing: Monitors temperature, flow, and chemical mixture levels within automated production environments.

• Oil & Gas Facilities: Used in upstream and downstream operations for wellhead monitoring, refining processes, and pipeline management.

• Pulp & Paper Mills: Tracks moisture content, pressure, and temperature in the pulping and papermaking process.

• Metals & Mining: Provides real-time process feedback from crushers, conveyors, and furnaces.

Product Advantages

• Modular Design: Easy to integrate, replace, or upgrade without full system shutdown.

• High Reliability: Built for continuous operation in mission-critical environments with minimal failure rates.

• Hot Swappable: Enables live maintenance with zero interruption to control functions.

• System Compatibility: Native support with OVATION DCS architecture ensures seamless communication and synchronization.

• Advanced Diagnostics: Built-in monitoring allows for real-time health and status feedback.

• Scalability: Supports both small process loops and extensive distributed control networks.

• Environment-Resistant: Designed to operate reliably in extreme industrial conditions.

FAQs

Q1: What does the 5X00411G01 module do?

A1: It serves as an I/O interface in the Emerson Ovation system, enabling data exchange between field devices and the DCS.

Q2: Is this module analog or digital?

A2: The 5X00411G01 can support either analog or digital I/O depending on its configured variant.

Q3: Can this module be replaced while the system is running?

A3: Yes, it is hot-swappable, meaning it can be replaced without powering down the system.

Q4: How many channels does it support?

A4: Typically, it supports up to 16 channels, which can vary based on the specific version.

Q5: Does this module require a dedicated power supply?

A5: No, it draws power from the I/O backplane in most configurations, within an 18–32 VDC range.

Q6: What environments is it suited for?

A6: It is ideal for industrial environments such as power plants, water treatment facilities, and chemical plants.

Q7: Is it compatible with third-party systems?

A7: It is designed for tight integration with Emerson’s Ovation DCS and may not directly support third-party systems.

Q8: What kind of diagnostics does it offer?

A8: It includes onboard diagnostics for channel status, internal faults, and communication integrity.

Q9: What is its expected operational life?

A9: With proper environmental conditions and usage, it can last well over 5 years.

Q10: Is it RoHS compliant?

A10: Yes, the 5X00411G01 complies with RoHS standards, ensuring minimal environmental impact.
