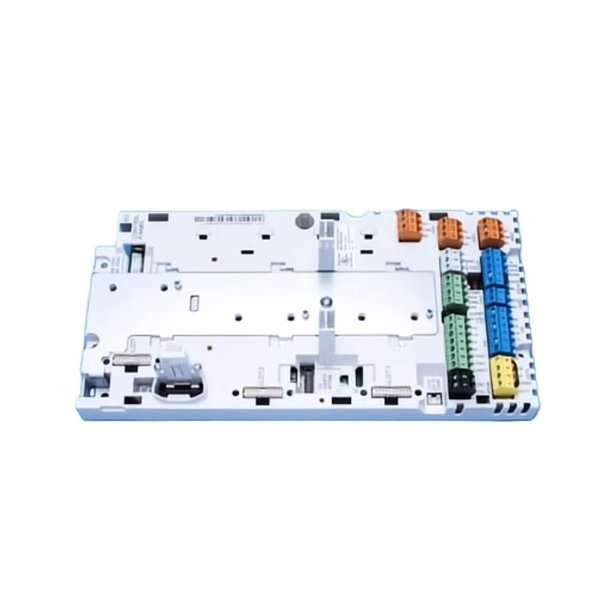

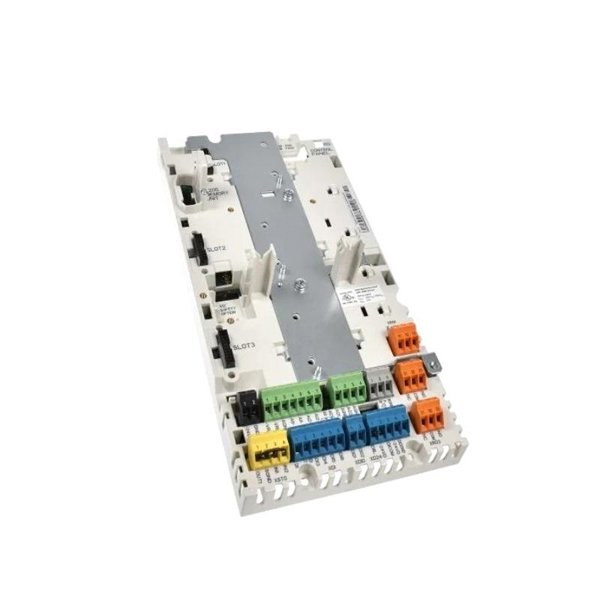

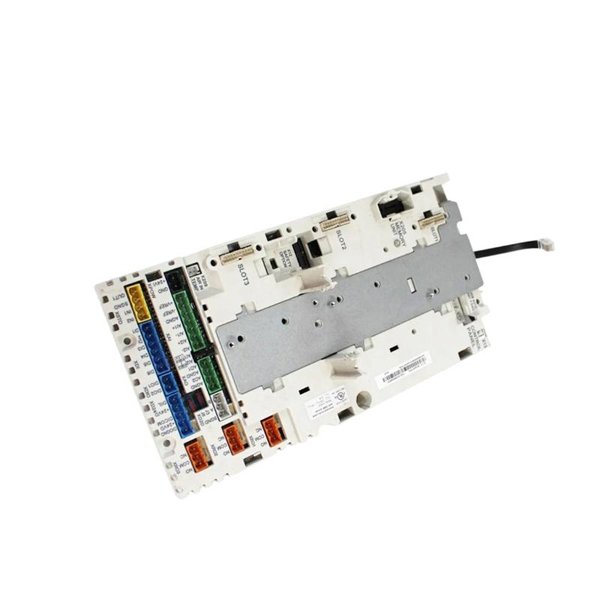

The ABB ZCU-12 3AXD50000183012 Control Unit is a high-performance control system used primarily in industrial automation and process control applications. Designed to deliver precise control and monitoring, the ZCU-12 provides an advanced interface between operators and various automation processes. It is built to handle complex control tasks in diverse industries such as energy, manufacturing, and transportation.

This unit integrates seamlessly into ABB’s broader automation solutions, ensuring reliable, real-time control over industrial processes. The ZCU-12 stands out with its robust design, reliability, and adaptability to various industrial protocols and requirements. As part of the ZCU series, it is tailored to meet the needs of both large-scale and compact systems, with advanced communication features, intuitive diagnostics, and high system availability.

Product Specifications

Product Applications

The ABB ZCU-12 Control Unit is an excellent choice for a wide range of industrial applications due to its flexibility, robustness, and integration capabilities. Some of its key applications include:

1. Industrial Automation: The ZCU-12 is widely used in automation systems to monitor and control industrial processes, ranging from manufacturing lines to production control systems.

2. Energy Management: In power plants and energy distribution networks, it serves as a central control hub for managing energy generation, distribution, and consumption.

3. Building Automation: It integrates with HVAC systems, lighting, and security systems, enabling centralized control and monitoring of building infrastructures.

4. Transportation Control Systems: In transport systems such as railways or airports, the ZCU-12 ensures seamless communication between different control subsystems like signalization and safety systems.

5. Process Control: The unit is used in chemical, petrochemical, and food industries for controlling processes, ensuring safety, and optimizing production.

6. SCADA Systems: It acts as a crucial component of SCADA systems for real-time monitoring and control of critical industrial processes.

Product Advantages

1. High Reliability: The ZCU-12 is designed to operate continuously in harsh industrial environments, with features like robust build quality, wide temperature range, and high MTBF.

2. Advanced Communication Capabilities: The unit supports multiple industry-standard communication protocols like Modbus TCP/IP, Profibus, EtherCAT, and OPC-UA, ensuring easy integration with a variety of control systems and devices.

3. Scalability: The modular design of the ZCU-12 allows for easy system expansion and adaptation to various process control needs, from small-scale installations to large, complex control networks.

4. User-Friendly Interface: With an integrated LCD touch display, the ZCU-12 provides an intuitive and easy-to-navigate interface for monitoring system status, making configuration and diagnostics simpler.

5. Flexible Mounting Options: The ZCU-12 can be mounted on DIN rails or directly onto control panels, providing flexibility in system design and integration.

6. Energy Efficient: The 24V DC power supply and low energy consumption of the unit contribute to overall system efficiency, reducing operating costs over time.

7. Real-Time Data Processing: The ZCU-12 is equipped with a high-speed processor and ample memory to support real-time data processing, ensuring timely and accurate decision-making.

FAQ (Frequently Asked Questions)

1. What is the ABB ZCU-12 Control Unit used for?

   • The ZCU-12 is primarily used for industrial process control, automation systems, and real-time monitoring of operations across various industries.

2. What communication protocols are supported by the ZCU-12?

   • The ZCU-12 supports Modbus TCP/IP, Profibus, EtherCAT, and OPC-UA, ensuring compatibility with a wide range of control systems and field devices.

3. Can the ZCU-12 be mounted on a DIN rail?

   • Yes, the ZCU-12 can be mounted on a DIN rail, providing a convenient installation method for industrial environments.

4. What is the operating temperature range of the ZCU-12?

   • The ZCU-12 operates in a temperature range from -20°C to +60°C, making it suitable for a wide range of industrial conditions.

5. What is the storage temperature range of the ZCU-12?

   • The ZCU-12 can be safely stored in temperatures ranging from -40°C to +85°C.

6. Does the ZCU-12 have an LCD display?

   • Yes, the ZCU-12 is equipped with an LCD display that supports touch functionality, allowing operators to interact directly with the unit.

7. What is the power supply requirement for the ZCU-12?

   • The ZCU-12 requires a 24V DC ±20% power supply to operate effectively.

8. Is the ZCU-12 suitable for outdoor use?

   • No, the ZCU-12 has an IP20 rating, meaning it is intended for indoor use only.

9. What are the dimensions of the ZCU-12?

   • The dimensions of the ZCU-12 are 272 × 138 × 70 mm.

10. What is the expected MTBF of the ZCU-12?

    • The expected Mean Time Between Failures (MTBF) for the ZCU-12 is approximately 150,000 hours, ensuring long-term reliability and reduced downtime.
