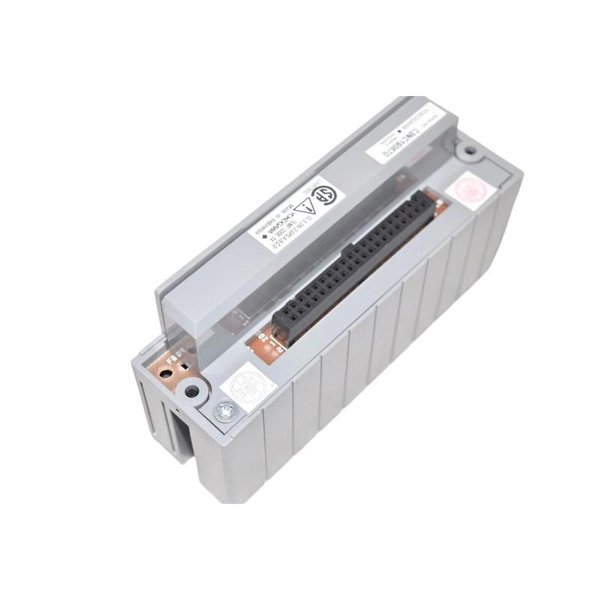

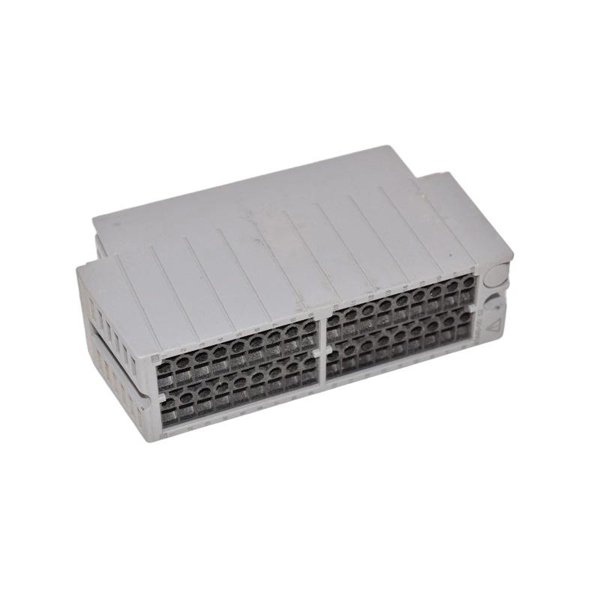

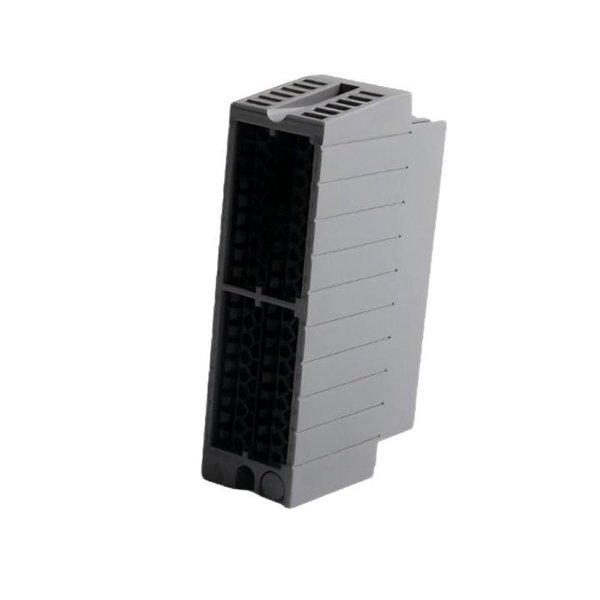

The Yokogawa ATA4S-00 S2 is a robust pressure terminal block designed to deliver reliable, accurate pressure measurements in demanding industrial environments. The product’s dual redundant design ensures that it can handle system failures without compromising the continuity of pressure monitoring, which is crucial in applications where uptime and safety are critical. Built with advanced features for high reliability, the ATA4S-00 S2 is well-suited for integration into complex process control systems, where precision and safety are of paramount importance. This model provides easy installation, minimal maintenance requirements, and maximum operational uptime.

Product Parameters

Applications

The ATA4S-00 S2 is ideal for applications that require precise pressure monitoring and system redundancy to ensure uninterrupted performance. Its versatile design makes it useful in several industries:

• Oil and Gas: Essential for monitoring pressure in pipelines, production facilities, and storage tanks, ensuring safe and optimal operations.

• Chemical Processing: Used for accurate pressure measurements in reactors, pipelines, and chemical storage units to avoid hazards and ensure system stability.

• Power Generation: Helps maintain optimal pressure levels in turbines, boilers, and cooling systems, ensuring efficient power production and safety.

• Process Control Systems: Integrated into automated systems for pressure monitoring, ensuring stable and consistent data for the entire process.

• HVAC and Building Automation: Provides essential pressure control for HVAC systems, ensuring consistent air pressure regulation and energy-efficient building operation.

Advantages

1. Dual Redundant Design: The ATA4S-00 S2 offers dual redundant connections, ensuring continuous operation even in the event of failure in one of the channels, which is crucial for mission-critical applications.

2. Compact and Lightweight: With a compact design of 114 x 32.6 x 60.5 mm and a weight of only 0.2 kg, this terminal block is space-efficient and easy to integrate into systems with limited space.

3. Accurate and Reliable Pressure Monitoring: Offers low contact resistance (<1 ohm) and high insulation resistance (500 VAC), providing accurate and reliable pressure readings.

4. Durability: Its polycarbonate enclosure ensures protection against environmental and chemical damage, allowing it to perform well even in harsh conditions.

5. Wide Operating Temperature Range: With an operating temperature range of -40°C to 85°C, the ATA4S-00 S2 is adaptable to a variety of industrial environments, from extreme cold to high heat.

6. Minimal Maintenance: The design minimizes maintenance requirements and ensures long-lasting performance, reducing the total cost of ownership over time.

FAQ

1. What is the maximum pressure that the ATA4S-00 S2 can handle?

   The ATA4S-00 S2 is designed to handle a maximum pressure of up to 1000 psi, making it suitable for high-pressure applications across industries such as oil, gas, and chemicals.

2. What is the required voltage for the ATA4S-00 S2?

   The ATA4S-00 S2 operates on 24 VDC, which is commonly used in industrial automation and control systems for reliable operation.

3. How does the dual redundant feature work in the ATA4S-00 S2?

   The ATA4S-00 S2 uses a dual redundant connection system, ensuring that if one connection fails, the second one will continue to function, preventing system disruption.

4. What materials are used in the construction of the ATA4S-00 S2?

   The ATA4S-00 S2 features a polycarbonate enclosure, providing excellent resistance to environmental and chemical damage, ensuring its long-lasting reliability.

5. Can the ATA4S-00 S2 be used in hazardous environments?

   Yes, the ATA4S-00 S2 is suitable for hazardous environments, provided it meets local industry regulations. It offers safety and reliability in demanding conditions.

6. What is the insulation resistance rating of the ATA4S-00 S2?

   The ATA4S-00 S2 has an insulation resistance rating of 500 VAC, providing a high level of safety and preventing electrical faults in sensitive environments.

7. How does the ATA4S-00 S2 ensure accurate pressure measurements?

   The ATA4S-00 S2 provides high-precision pressure readings with a low contact resistance of less than 1 ohm, ensuring stable and accurate pressure data transmission.

8. Can the ATA4S-00 S2 be used in outdoor applications?

   Yes, the ATA4S-00 S2 can be used outdoors, as long as it is protected from extreme weather conditions and environmental factors that might compromise its performance.

9. How is the ATA4S-00 S2 installed?

   The ATA4S-00 S2 is designed for easy installation with clear wiring connections. It can be quickly integrated into existing control systems, minimizing system downtime.

10. What safety features does the ATA4S-00 S2 offer?

    The ATA4S-00 S2 offers high insulation resistance and a polycarbonate enclosure to ensure electrical safety, as well as a redundant design to maintain functionality in case of a failure.
