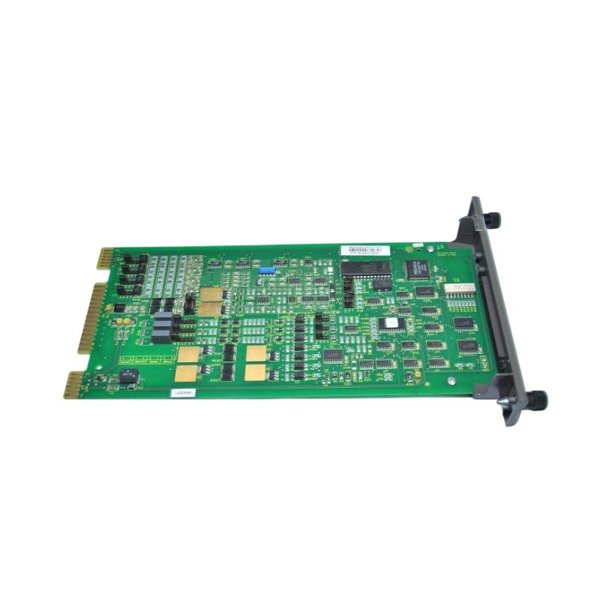

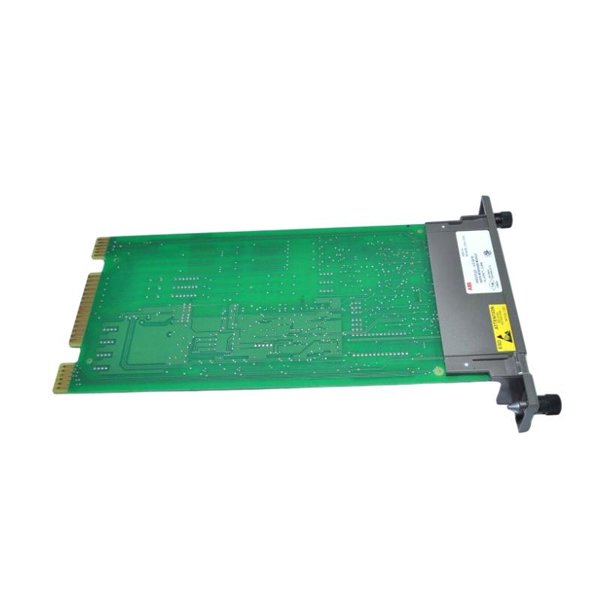

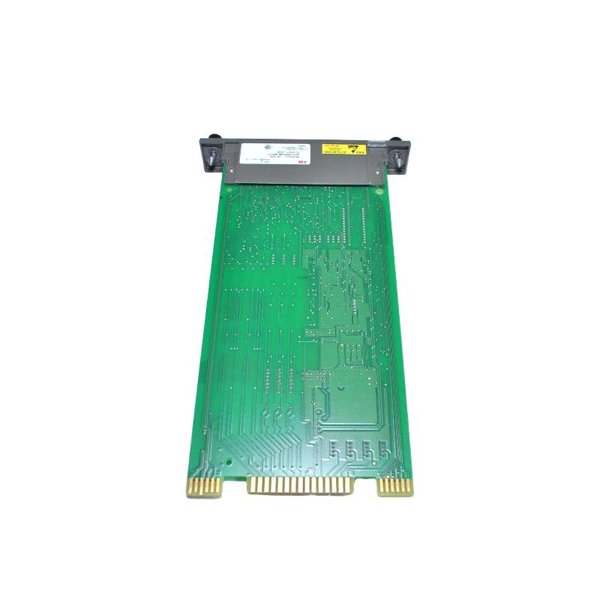

The ABB Bailey IMQRS22 is a high-speed Quick Response I/O Module, engineered to perform rapid data acquisition and output operations within ABB’s Symphony and INFI 90 control systems. This module is specifically designed to handle applications where low latency and deterministic I/O behavior are critical, such as in emergency shutdown systems, turbine control loops, or real-time process alarms.

With its capability to process digital I/O changes nearly instantaneously, the IMQRS22 plays a vital role in safety instrumented systems and high-speed interlocking operations. It ensures that field data is captured and acted upon with minimal delay, thereby safeguarding process stability and operational safety.

Technical Specifications

Applications

The IMQRS22 module is utilized in mission-critical systems where real-time responsiveness is non-negotiable. It serves diverse roles in:

• Turbine and Generator Control Systems: For immediate response to speed, pressure, and temperature thresholds.

• Emergency Shutdown Systems (ESD): To execute interlocks with minimal delay.

• Oil and Gas Automation: Monitoring and controlling safety-critical field signals.

• Substation Automation: Ensuring millisecond switching actions for circuit breakers.

• Manufacturing Systems: Used in fast mechanical control environments such as robotics or conveyor logic.

• Alarm and Annunciation Systems: Captures and acts on fault signals in near real-time.

Product Advantages

• Ultra-Low Latency: Designed for sub-millisecond I/O response, enabling prompt reactions in critical systems.

• Dual Functionality: Supports both input and output signals on a single board, reducing hardware requirements.

• High Reliability: Incorporates diagnostic features and redundancy capabilities for failsafe operations.

• Flexible Integration: Easily integrates with ABB Symphony/INFI 90 systems without complex configuration.

• Industrial Grade Design: Withstands harsh environmental conditions typical of process facilities.

• Visual Diagnostics: LED indicators for immediate I/O and system status verification.

Frequently Asked Questions (FAQ)

1. What does the IMQRS22 module do?

   It enables fast response digital I/O operations within process automation and safety systems.

2. How fast can it react to input changes?

   It can process and respond to changes in under one millisecond.

3. Can the channels be configured as both input and output?

   Yes, depending on system setup, each channel can be configured for either input or output.

4. What types of systems require quick response I/O?

   Systems such as turbine control, ESD systems, and alarm handling units benefit most.

5. Is it suitable for safety instrumented functions?

   Yes, especially when used in redundant architectures for mission-critical systems.

6. Does the IMQRS22 support time synchronization?

   It synchronizes with local ABB time standards and works well with modules like IMSET01.

7. What happens if power is lost?

   The module resumes operation immediately upon restoration and can work with backup systems.

8. Is this module compatible with legacy ABB systems?

   Yes, it is compatible with most existing Bailey INFI 90 configurations.

9. How many I/O channels does it support?

   It provides 16 configurable channels for digital input/output tasks.

10. Can it be replaced while the system is running?

    Typically, it is not hot-swappable; a system halt is recommended for replacement.
