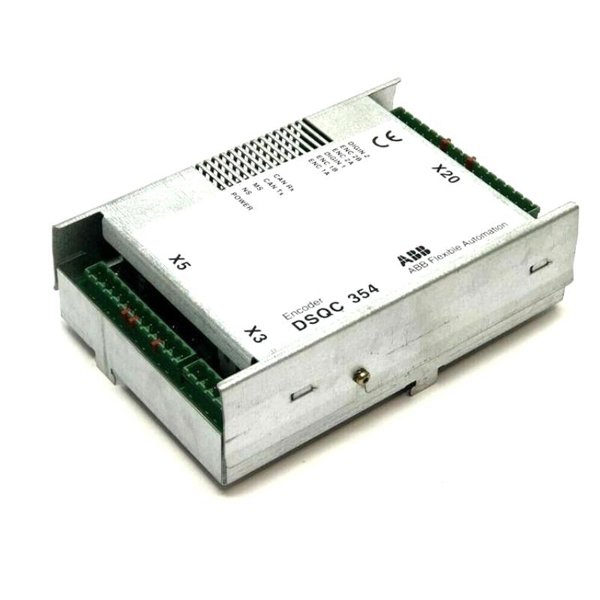

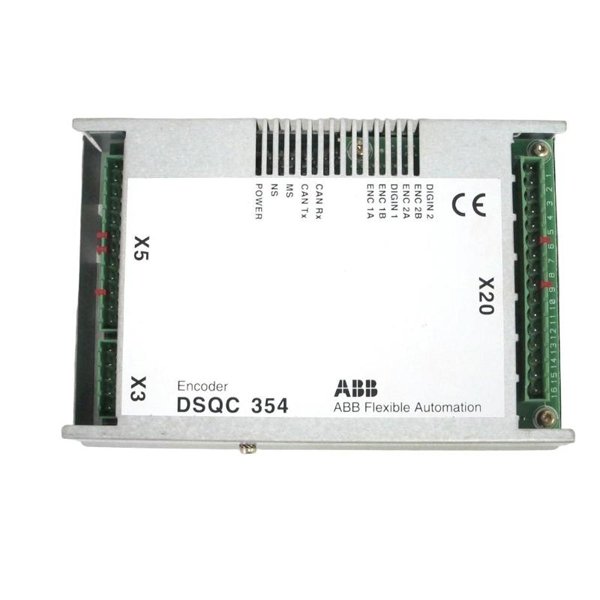

The ABB DSQC 354 3HNE00065-1 is a high-performance industrial I/O module designed for robust automation applications. It is part of ABB’s renowned DSQC series, known for reliability and flexibility in robotic and control systems. This module facilitates seamless communication between controllers and peripheral devices, ensuring efficient data handling and system integration.

Product Parameters

The table below outlines the key technical specifications of the DSQC 354 3HNE00065-1:

Product Applications

The DSQC 354 3HNE00065-1 is widely used in industrial automation, particularly in:

• Robotic Systems: Integrates with ABB robots for precise I/O control.

• Manufacturing Lines: Manages conveyor belts, sensors, and actuators.

• Material Handling: Controls sorting and packaging systems.

• Automotive Industry: Supports assembly line automation.

• Energy Sector: Monitors and controls power distribution systems.

Product Advantages

1. High Reliability: Built to withstand harsh industrial environments.

2. Flexible Configuration: Supports multiple communication protocols.

3. Compact Design: Saves space in control cabinets.

4. Easy Installation: DIN rail or panel mounting options.

5. Scalability: Compatible with ABB’s extensive automation ecosystem.

Frequently Asked Questions (FAQ)

1. What communication protocols does the DSQC 354 support?

   It supports DeviceNet and Profibus, with options for other protocols via configuration.

2. Can this module be used with non-ABB controllers?

   Yes, it is compatible with third-party controllers supporting DeviceNet or Profibus.

3. What is the maximum operating temperature?

   The module operates reliably between 0°C and +55°C.

4. How many I/O points does it have?

   It provides 16 digital inputs and 16 digital outputs.

5. Is the DSQC 354 suitable for outdoor use?

   No, its IP20 rating limits it to indoor applications.

6. What is the power supply requirement?

   It requires a 24V DC power supply with ±10% tolerance.

7. Can I expand the I/O capacity?

   Yes, additional modules can be added for expanded I/O needs.

8. What is the warranty period?

   ABB typically offers a 12-month warranty, subject to terms.

9. How do I troubleshoot communication errors?

   Check cabling, power supply, and protocol settings. Refer to the manual for error codes.

10. Is the module certified for industrial compliance?

    Yes, it meets CE, UL, CSA, and RoHS standards
