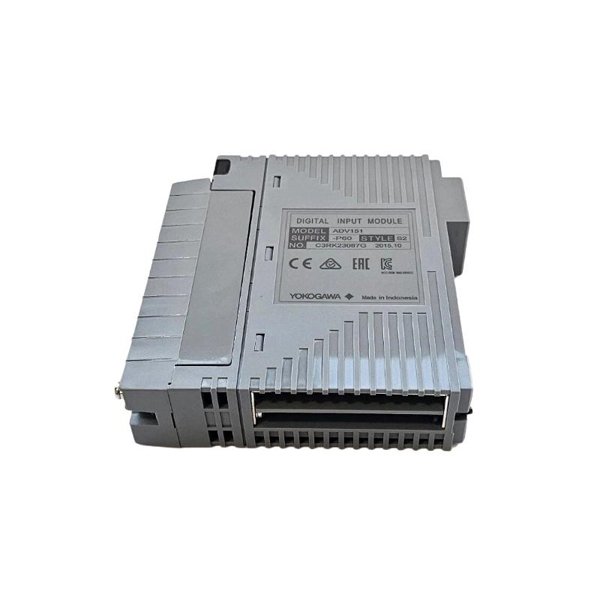

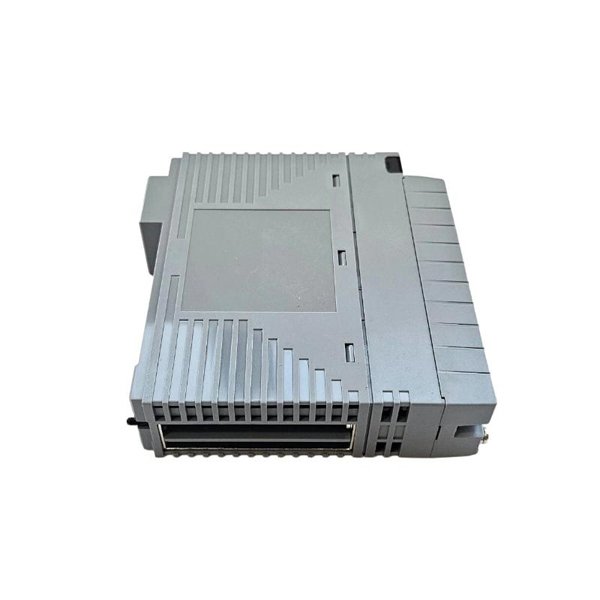

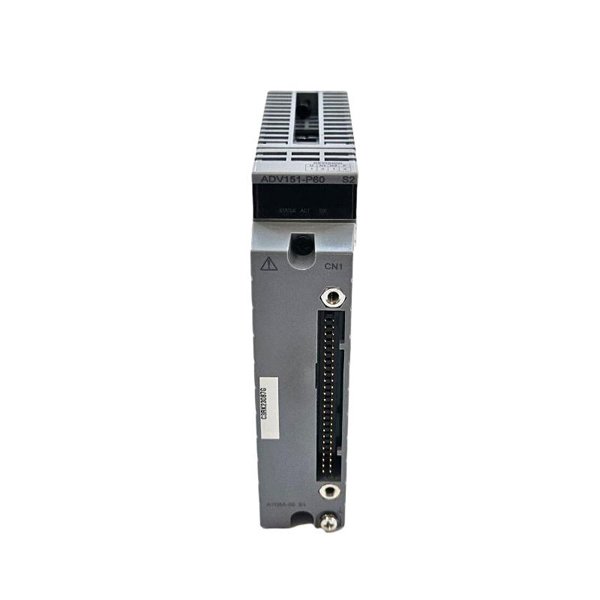

The Yokogawa ADV151-P60/B5S00 Digital Input Module is an advanced, high-performance digital input device designed for demanding industrial automation and process control environments. As part of Yokogawa’s CENTUM VP distributed control system, this module offers reliable and accurate digital signal acquisition, enabling seamless monitoring and control of field devices. The ADV151-P60/B5S00 supports both dry contact and 24 VDC voltage inputs, making it versatile for a wide range of industrial applications.

Equipped with state-of-the-art optical isolation technology, the module safeguards the control system from electrical noise and transient voltages, enhancing system stability and integrity. Its compact modular design allows for easy installation, replacement, and maintenance with minimal downtime. This digital input module is well-suited for use in industries such as oil and gas, power generation, chemical processing, and manufacturing, where precise and dependable input signal monitoring is critical.

Product Parameters

Product Applications

The ADV151-P60/B5S00 Digital Input Module is widely deployed in critical industrial environments including:

• Oil and Gas Sector: Monitoring valve positions, pump statuses, and emergency shutdown signals.

• Power Generation: Supervising breaker positions, turbine operating states, and protection relay inputs.

• Chemical and Petrochemical Plants: Monitoring process alarms, discrete control signals, and safety interlocks.

• Manufacturing Automation: Detecting equipment status, fault conditions, and safety shutdown signals.

• Water and Wastewater Treatment: Managing inputs from pumps, valves, and control switches.

• Infrastructure Automation: Supervising signals in transportation, building management, and utility control systems.

Product Advantages

• High Reliability and Accuracy: Guarantees precise digital input signal acquisition for consistent system performance.

• Fast Response Time: Capable of detecting and processing signals within 5 milliseconds.

• Robust Optical Isolation: Protects control circuits from voltage spikes and electrical noise, ensuring stable operation.

• Compact and Modular: Easy to install, maintain, and expand within limited panel space.

• Hot-Swappable: Supports module replacement without requiring system shutdown, minimizing downtime.

• Wide Environmental Tolerance: Operates reliably over a broad temperature and humidity range.

• Energy Efficient: Low power consumption contributes to lower operating costs and reduced heat generation.

• Diagnostic Features: Integrated fault detection and status monitoring improve maintenance and troubleshooting.

FAQ

1. How many input channels are provided on the ADV151-P60/B5S00 module?

The module provides 16 isolated digital input channels.

2. What types of digital inputs does this module support?

It supports dry contact inputs and 24 VDC voltage inputs.

3. What is the nominal input voltage range for this module?

The nominal input voltage range is 19–32 VDC, with 24 VDC typical operation.

4. What is the response time for input signal detection?

The module responds within 5 milliseconds or less.

5. Does the module include electrical isolation?

Yes, it uses optical isolation to separate input signals from control logic circuits.

6. Can the module be replaced while the system is operating?

Yes, it is hot-swappable to allow module replacement without shutting down the system.

7. Is the ADV151-P60/B5S00 compatible with the Yokogawa CENTUM VP system?

Yes, it is fully compatible and integrates seamlessly with CENTUM VP systems.

8. What environmental conditions can the module tolerate?

It operates in temperatures from 0°C to 55°C and relative humidity of 5–95% non-condensing.

9. What diagnostic capabilities does this module offer?

It provides channel status monitoring and fault detection for predictive maintenance.

10. What power supply voltage is required for the module?

The module operates on 5 VDC power supplied by the base unit.
