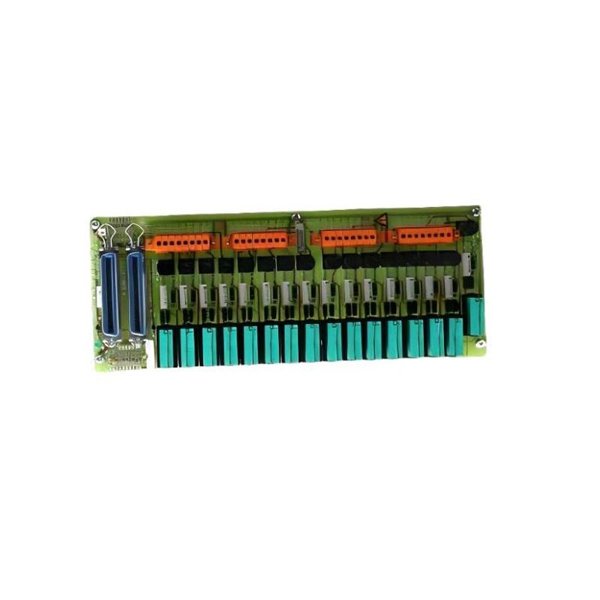

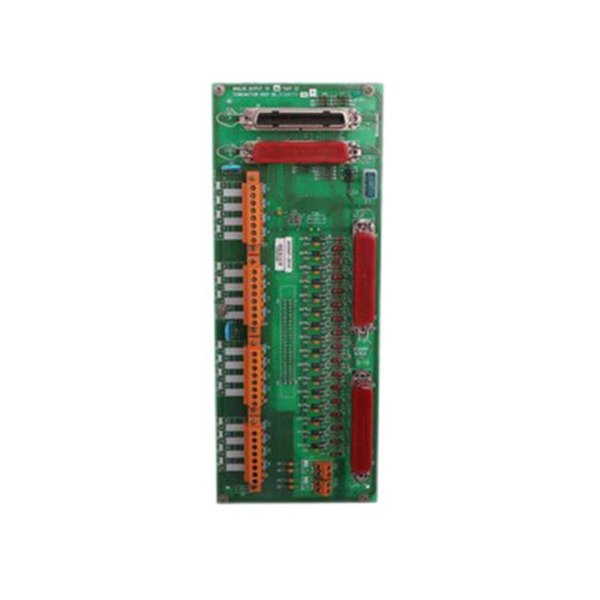

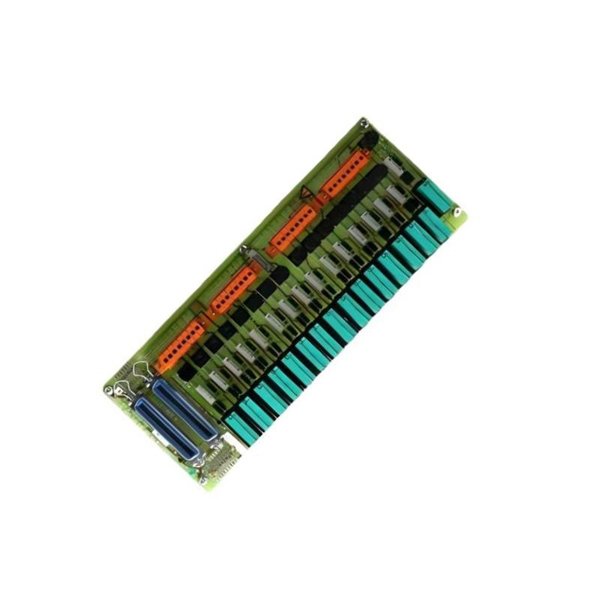

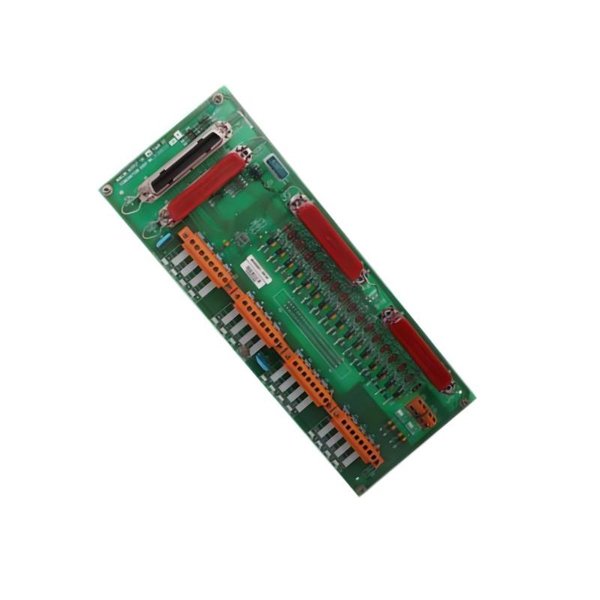

The Honeywell MC-TSTX13 51309142-175 is a highly reliable smart transmitter interface (FTA) designed to facilitate seamless communication and integration between field instruments and control systems. It supports a wide range of smart transmitters, converting analog and digital signals into usable data for process control and monitoring.

This interface is engineered to improve signal accuracy, integrity, and diagnostic capability in process automation environments. Its compact size of 307.5 x 120.5 mm and lightweight construction of 0.3 kg allow for flexible installation within control cabinets or distributed I/O systems.

The MC-TSTX13 enhances system reliability by providing fault-tolerant signal processing and integration, ensuring continuous operation in demanding industrial environments. It supports Honeywell’s FTA (Fault Tolerant Assembly) concept, delivering high availability and compliance with industry safety standards.

Product Parameters

Product Applications

The MC-TSTX13 smart transmitter interface is commonly employed in industrial automation settings that require precise, reliable communication with smart field instruments. Typical applications include:

• Process Control Systems: Facilitates communication and data acquisition from smart transmitters in chemical, petrochemical, and pharmaceutical plants.

• Safety Instrumented Systems (SIS): Integrates transmitter data with safety controllers for fault detection and shutdown.

• Power Generation: Supports instrumentation for boilers, turbines, and generator monitoring.

• Oil and Gas Facilities: Connects smart sensors in drilling, refining, and pipeline management.

• Water and Wastewater Treatment: Interfaces with smart flow, level, and pressure transmitters.

• Manufacturing Automation: Provides reliable interface for sensors in automotive, food, and consumer goods production.

Product Advantages

• Multi-Protocol Support: Compatible with HART, FOUNDATION Fieldbus, and Modbus protocols for versatile integration.

• Fault Tolerant Assembly: Ensures continuous operation and enhanced reliability in safety-critical environments.

• High Signal Accuracy: Provides precise signal conversion and conditioning for accurate process measurements.

• Compact and Lightweight: Its size and weight facilitate installation in tight control cabinet spaces.

• Robust Electrical Isolation: Channel-to-channel isolation prevents signal interference and noise.

• Fast Response Time: Supports timely data processing with less than 100 ms latency.

• Wide Operating Range: Suitable for a broad range of industrial environments with temperatures from –20°C to +70°C.

• Compliance and Certification: Meets international standards including IEC 61508 and SIL, ensuring safety and quality.

• Flexible Mounting: Supports DIN rail and panel mounting options for varied installation needs.

• Seamless Integration: Designed to work optimally with Honeywell’s distributed control and safety systems.

Frequently Asked Questions (FAQ)

Q1: What are the dimensions and weight of the MC-TSTX13?

A1: The device measures 307.5 x 120.5 mm and weighs 0.3 kg.

Q2: What types of transmitter signals does this interface support?

A2: It supports 4-20 mA analog signals as well as digital protocols including HART and FOUNDATION Fieldbus.

Q3: Can the MC-TSTX13 operate in hazardous environments?

A3: Yes, it is designed to meet SIL certifications and is suitable for safety instrumented systems.

Q4: What is the response time for signal processing?

A4: The response time is less than 100 milliseconds.

Q5: How is the device mounted?

A5: It can be mounted on DIN rails or panels depending on installation requirements.

Q6: Does the device provide electrical isolation?

A6: Yes, it offers channel-to-channel electrical isolation to prevent signal interference.

Q7: What is the operating temperature range?

A7: The device operates reliably between –20°C and +70°C.

Q8: What communication protocols are supported?

A8: It supports HART, FOUNDATION Fieldbus, and Modbus protocols.

Q9: Is this device compatible with Honeywell control systems?

A9: Yes, it is fully compatible with Honeywell’s Safety Manager and other control architectures.

Q10: Which industries commonly use this transmitter interface?

A10: Common industries include chemical processing, power generation, oil and gas, water treatment, and manufacturing.
