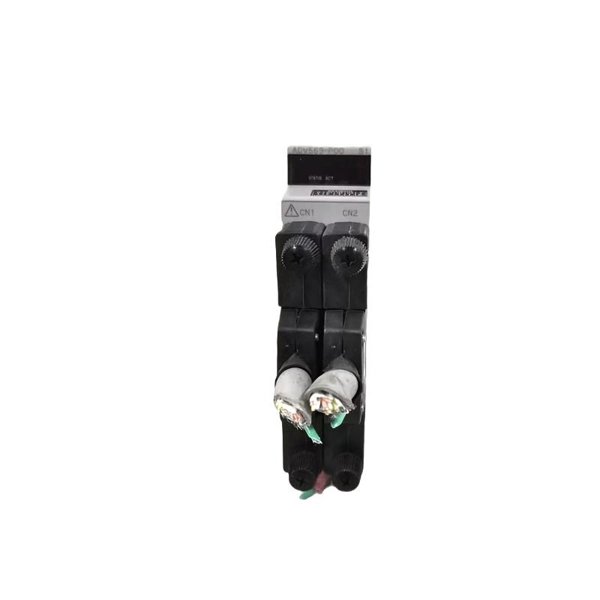

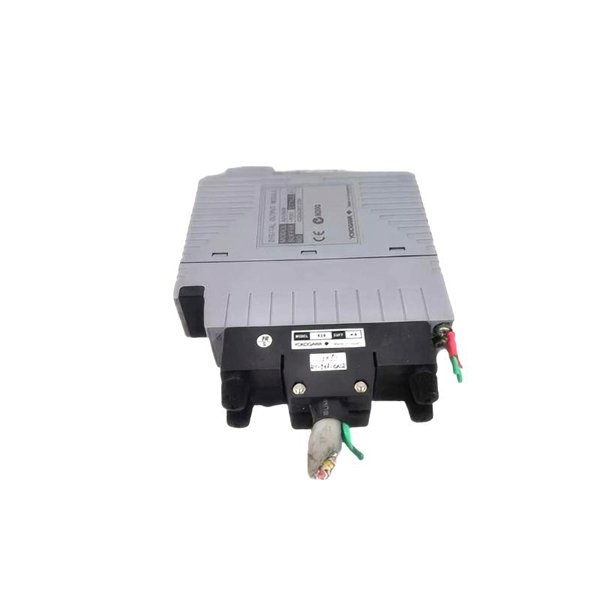

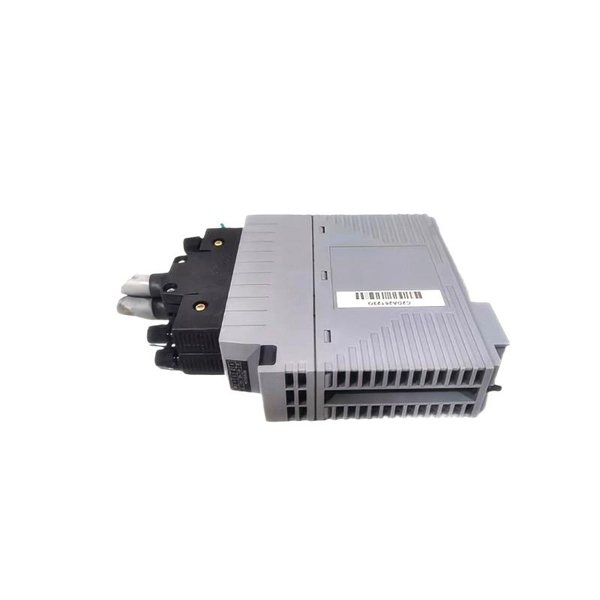

The Yokogawa ADV569-P00 Digital I/O Module is a robust and versatile module designed for use in Yokogawa’s advanced Distributed Control Systems (DCS). It integrates both digital input and digital output channels in a single compact unit, making it an efficient choice for managing discrete signals in complex industrial control environments. This module is a part of the ADV500 series, known for its reliability and precision in demanding automation applications.

The ADV569-P00 is built to provide stable, accurate signal transmission with high-speed switching capability, essential for process control, safety systems, and industrial automation. Its dual I/O functionality reduces cabinet space requirements and simplifies wiring, helping optimize system architecture.

Product Specifications

Applications

The ADV569-P00 Digital I/O Module is widely applied in industries requiring precise control and monitoring of discrete signals. Typical applications include:

• Process Industries: Chemical, petrochemical, and pharmaceutical plants use this module to monitor and control valves, switches, alarms, and other discrete devices.

• Factory Automation: Controls actuators, sensors, and other equipment in assembly lines and manufacturing plants.

• Power Generation: Used for status monitoring and control of generators, turbines, and protection relays.

• Oil and Gas: Manages digital signals for emergency shutdown systems, valve controls, and safety interlocks.

• Water and Wastewater Treatment: Controls pumps, valves, and alarms in purification and distribution systems.

• Building Automation: Interfaces with HVAC systems, lighting controls, and security systems to manage on/off states.

Product Advantages

1. Dual Functionality in One Module

   The ADV569-P00 combines both digital inputs and outputs, reducing the number of modules needed, saving space and simplifying system design.

2. High Reliability

   Engineered for harsh industrial environments, it performs reliably across wide temperature ranges (-20°C to +60°C) and humidity levels (up to 95% RH).

3. Compact Design

   Small footprint with dimensions of 130 x 127.2 x 32.8 mm allows for dense panel layouts and efficient space use in control cabinets.

4. High-Speed Response

   The module’s response time of less than 10 ms ensures quick reaction to input changes, which is critical for real-time control applications.

5. Wide Compatibility

   Fully compatible with Yokogawa DCS systems and supports standard communication protocols, facilitating seamless integration.

6. Easy Installation and Maintenance

   DIN rail mounting and screw terminal connectors simplify installation and wiring. The robust design requires minimal maintenance.

7. Energy Efficient

   Low power consumption of approximately 4 W ensures minimal heat generation and operational costs.

8. Safety and Compliance

   Meets international standards including CE, UL, and RoHS, ensuring safe and environmentally friendly operation.

9. Versatile Application Range

   Suitable for a broad range of industrial automation tasks, supporting both status monitoring and control functions.

10. Proven Industry Performance

    Used worldwide, Yokogawa’s ADV569-P00 has a strong track record for stability and longevity in critical systems.

Frequently Asked Questions (FAQ)

1. How many digital inputs and outputs does the ADV569-P00 have?

   It has 8 digital inputs and 8 digital outputs.

2. What is the nominal input and output voltage?

   Both input and output nominal voltage is 24 V DC.

3. What is the output current capacity per channel?

   Each output channel can deliver up to 0.5 A.

4. What is the operating temperature range?

   The module operates between -20°C and +60°C.

5. How is the module mounted?

   It is mounted using a standard DIN rail.

6. What is the response time for signal changes?

   The response time is less than or equal to 10 milliseconds.

7. Is the ADV569-P00 suitable for hazardous environments?

   It is designed for industrial environments but is not intrinsically safe for hazardous zones without additional certification.

8. What type of connectors does it use?

   It uses screw terminal connectors for reliable wiring.

9. Is this module compatible with all Yokogawa DCS systems?

   It is compatible with most Yokogawa DCS platforms supporting the ADV500 series modules.

10. What are the dimensions and weight of the ADV569-P00?

    Dimensions: 130 x 127.2 x 32.8 mm; Weight: 0.3 kg.
