Manufacturer:ABB
Product Number:TU849 3BSE042560R1
Product Type:Redundant Module Termination Unit
Origin:Sweden (SE)
Dimensions:124 x 186.5 x 47 mm
Weight:0.45 kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

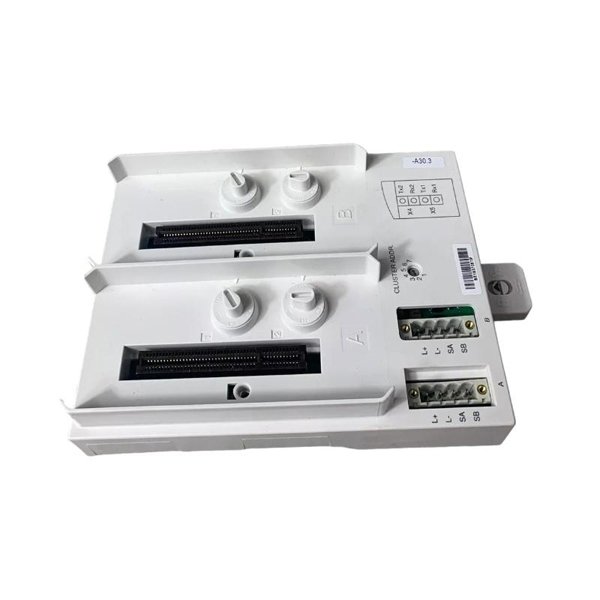

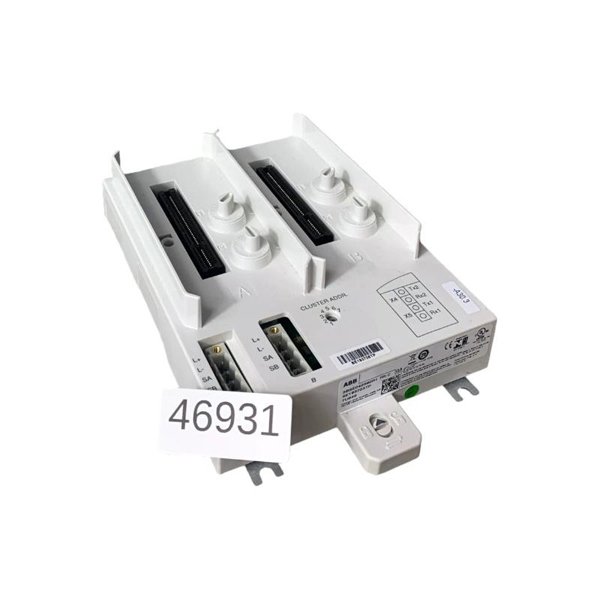

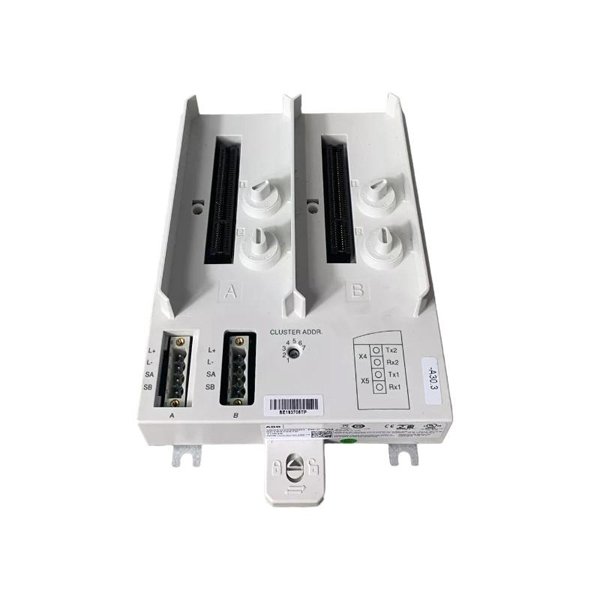

The ABB TU849 is a passive Module Termination Unit (MTU) designed for the redundant configuration of the Optical ModuleBus Modem TB840/TB840A within the System 800xA architecture. It provides dual power supply inputs, secure DIN rail mounting, mechanical keying, and configurable cluster addressing, ensuring high reliability in automation environments.
| Parameter | Value |
|---|---|
| Product Type | Redundant Module Termination Unit (MTU) |
| Article Number | 3BSE042560R1 |
| Supported Modems | TB840 / TB840A |
| Power Supply | Dual 24 V DC (19.2–30 V DC) |
| ModuleBus | Single electrical ModuleBus |
| ModuleBus Current Distribution | 5 V – max 1.5 A, 24 V – max 1.5 A |
| Power Dissipation | 2.5 W |
| Cluster Address | Rotary switch (1–7) |
| Mechanical Keys | 36 configurations (6 positions × 6) |
| Wire Size | 0.2 – 2.5 mm² (24–12 AWG) |
| Mounting | DIN rail (vertical or horizontal) |
| Rated Insulation Voltage | 50 V |
| Dielectric Strength | 500 V AC |
| Operating Temperature | 55°C (horizontal), 40°C (vertical) |
| Storage Temperature | -25°C to +70°C |
| Protection Class | IP20 |
| Certifications | cULus, ATEX Zone 2, CE, ABS, DNV-GL, BV, LR |
| RoHS/WEEE Compliance | Yes |
| Dimensions (W x H x D) | 124 × 186.5 × 47 mm |
| Weight | 0.45 kg |
Redundant configuration for TB840/TB840A optical modems
Industrial automation systems using ABB System 800xA
Control system applications requiring reliable dual power input
I/O extension setups with non-redundant I/O networks
Environments needing secure DIN rail module mounting
Redundancy Ready: Supports two TB840/TB840A modems and dual power supplies
Secure Configuration: Mechanical keying prevents incorrect module insertion
Simplified Installation: Tool-operated latch for DIN rail locking
Flexible Mounting: Vertical or horizontal installation options
Addressable Networking: Rotary switch for quick cluster addressing
Certified for Harsh Environments: IP20 protection, ATEX Zone 2, marine approvals
Q1: What is the function of the TU849?
A1: It serves as a termination unit for connecting TB840/TB840A to non-redundant I/O in redundant configurations.
Q2: Can the TU849 be hot-swapped?
A2: No, the TU849 does not support hot-swapping.
Q3: What type of power supply does it support?
A3: It supports dual 24 V DC power supplies, with a range of 19.2–30 V DC.
Q4: How many address clusters can be configured?
A4: The rotary switch allows up to 7 address clusters (1 to 7).
Q5: What mounting options are supported?
A5: The unit supports both vertical and horizontal DIN rail mounting.
Q6: Does it support redundant ModuleBus connections?
A6: No, it connects to a single electrical ModuleBus.
Q7: Is the TU849 compliant with RoHS directives?
A7: Yes, it meets RoHS compliance under directive 2011/65/EU.
Q8: Can it operate in marine environments?
A8: Yes, it holds certifications from ABS, BV, DNV-GL, and LR.
Q9: What is the rated insulation voltage?
A9: The rated insulation voltage is 50 V.
Q10: How many mechanical keying combinations are available?
A10: There are 36 possible mechanical keying configurations.
Manufacturer:ABB
Product Number:TU849 3BSE042560R1
Product Type:Redundant Module Termination Unit
Origin:Sweden (SE)
Dimensions:124 x 186.5 x 47 mm
Weight:0.45 kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
The ABB TU849 is a passive Module Termination Unit (MTU) designed for the redundant configuration of the Optical ModuleBus Modem TB840/TB840A within the System 800xA architecture. It provides dual power supply inputs, secure DIN rail mounting, mechanical keying, and configurable cluster addressing, ensuring high reliability in automation environments.
| Parameter | Value |
|---|---|
| Product Type | Redundant Module Termination Unit (MTU) |
| Article Number | 3BSE042560R1 |
| Supported Modems | TB840 / TB840A |
| Power Supply | Dual 24 V DC (19.2–30 V DC) |
| ModuleBus | Single electrical ModuleBus |
| ModuleBus Current Distribution | 5 V – max 1.5 A, 24 V – max 1.5 A |
| Power Dissipation | 2.5 W |
| Cluster Address | Rotary switch (1–7) |
| Mechanical Keys | 36 configurations (6 positions × 6) |
| Wire Size | 0.2 – 2.5 mm² (24–12 AWG) |
| Mounting | DIN rail (vertical or horizontal) |
| Rated Insulation Voltage | 50 V |
| Dielectric Strength | 500 V AC |
| Operating Temperature | 55°C (horizontal), 40°C (vertical) |
| Storage Temperature | -25°C to +70°C |
| Protection Class | IP20 |
| Certifications | cULus, ATEX Zone 2, CE, ABS, DNV-GL, BV, LR |
| RoHS/WEEE Compliance | Yes |
| Dimensions (W x H x D) | 124 × 186.5 × 47 mm |
| Weight | 0.45 kg |
Redundant configuration for TB840/TB840A optical modems
Industrial automation systems using ABB System 800xA
Control system applications requiring reliable dual power input
I/O extension setups with non-redundant I/O networks
Environments needing secure DIN rail module mounting
Redundancy Ready: Supports two TB840/TB840A modems and dual power supplies
Secure Configuration: Mechanical keying prevents incorrect module insertion
Simplified Installation: Tool-operated latch for DIN rail locking
Flexible Mounting: Vertical or horizontal installation options
Addressable Networking: Rotary switch for quick cluster addressing
Certified for Harsh Environments: IP20 protection, ATEX Zone 2, marine approvals
Q1: What is the function of the TU849?
A1: It serves as a termination unit for connecting TB840/TB840A to non-redundant I/O in redundant configurations.
Q2: Can the TU849 be hot-swapped?
A2: No, the TU849 does not support hot-swapping.
Q3: What type of power supply does it support?
A3: It supports dual 24 V DC power supplies, with a range of 19.2–30 V DC.
Q4: How many address clusters can be configured?
A4: The rotary switch allows up to 7 address clusters (1 to 7).
Q5: What mounting options are supported?
A5: The unit supports both vertical and horizontal DIN rail mounting.
Q6: Does it support redundant ModuleBus connections?
A6: No, it connects to a single electrical ModuleBus.
Q7: Is the TU849 compliant with RoHS directives?
A7: Yes, it meets RoHS compliance under directive 2011/65/EU.
Q8: Can it operate in marine environments?
A8: Yes, it holds certifications from ABS, BV, DNV-GL, and LR.
Q9: What is the rated insulation voltage?
A9: The rated insulation voltage is 50 V.
Q10: How many mechanical keying combinations are available?
A10: There are 36 possible mechanical keying configurations.
