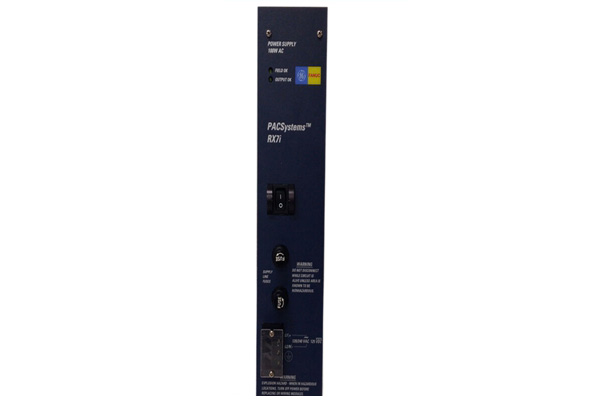

General Electric IC698PSA100 multiFunctional Power Module
Module Number:IC698PSA100
Product status:Discontinued
Delivery time:In stock
Product status:100% new
Sales country:All over the world
Product situation:one year warranty
Product Description
IC698PSA100 is a multifunctional power module. The following is detailed information and features about it:
Brand and manufacturer
The IC698PSA100 is manufactured by Emerson Automation and was previously part of the General Electric Intelligent Platform (GE IP).
Installation and purpose
The power module is installed in the leftmost slot of the RX7i standard rack, which is slot 0.
It provides+5 VDC,+12 VDC, and -12 VDC power supplies and logic level sorting signals for modules on the backplane.
Electrical characteristics
Input voltage range: 85 to 264 VAC (nominal voltage 120/240 VAC) or 100 to 150 VDC (nominal voltage 125 VDC).
Frequency range: 47 to 63 Hz.
Maximum output power: 100 watts (total power).
Output voltage and current
+5 VDC: 4.875 to 5.25 volts, 0-20 amps
+12 VDC: 11.64 to 12.6 volts, 0-2 amps
-12 VDC: -12.60 to -11.64 volts, 0-1 ampere
