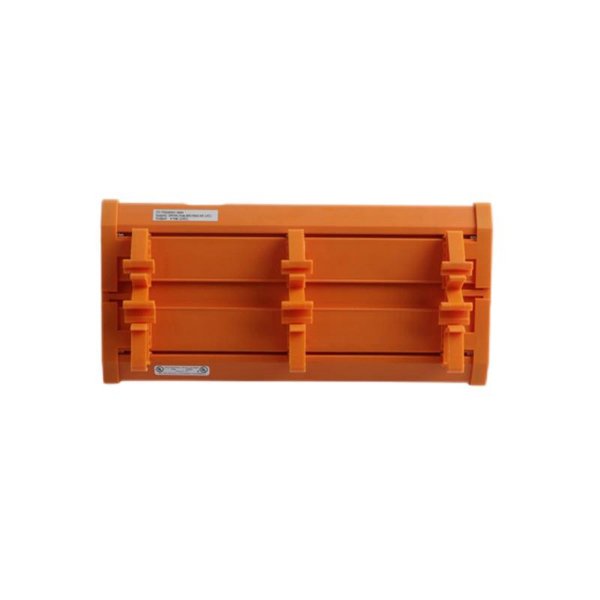

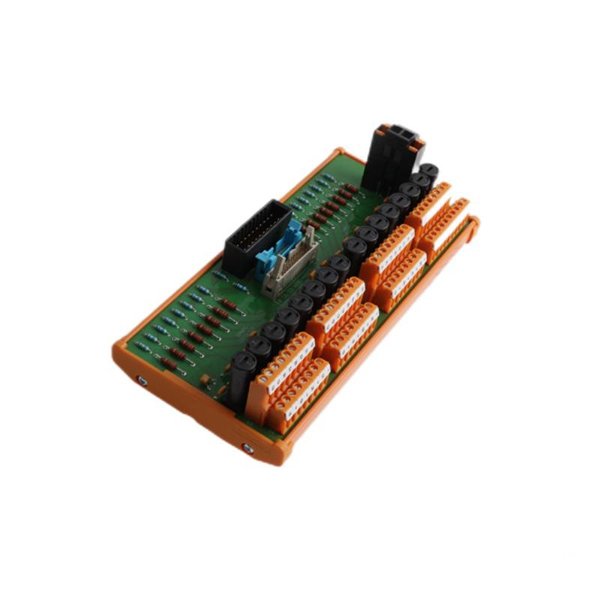

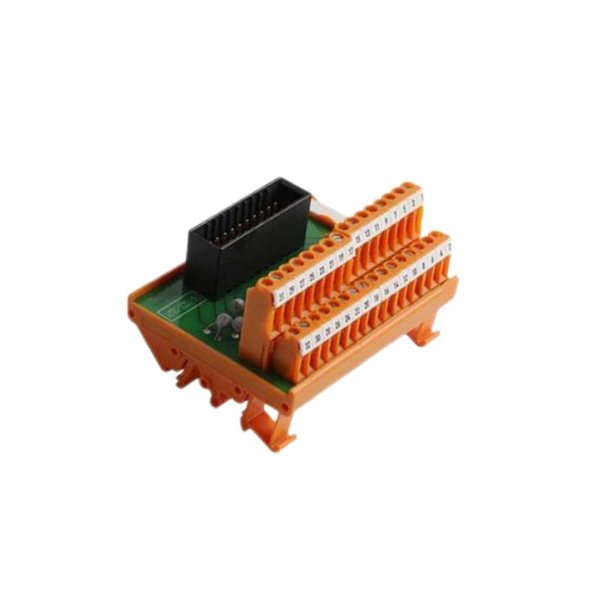

The Honeywell FC-TSJASH-1624CC is a high-performance I/O module designed for use within the Experion PKS (Process Knowledge System) environment. It serves as a critical component for integrating analog and digital signals in industrial process control applications. Engineered with a robust, compact build, the module provides enhanced reliability and communication performance, enabling accurate data acquisition and control over complex automation processes.

This model is part of the Honeywell Field Control (FC) series and is optimized for seamless interoperability within distributed control systems (DCS). Its compact size, plug-in design, and extended operating parameters make it ideal for demanding industrial environments, including power plants, chemical processing, and oil and gas installations.

Product Advantages

• High Signal Integrity: Delivers precise signal transmission and processing with minimized noise interference.

• Robust Build Quality: Built to withstand harsh industrial environments including temperature fluctuations and electrical noise.

• Plug-and-Play Integration: Easily integrates with Honeywell’s C300 controller and other system modules in the Experion PKS platform.

• Compact Form Factor: Allows for dense installation in control cabinets, saving space without compromising performance.

• Enhanced Diagnostics: Supports advanced fault detection and diagnostic feedback for faster maintenance and reduced downtime.

• Long Product Lifecycle: Designed for long-term system support and backward compatibility.

Technical Specifications

Product Applications

• Power Generation Facilities – Used for analog signal acquisition in turbine and auxiliary system control.

• Oil & Gas Plants – Ideal for upstream and downstream automation processes, including wellhead monitoring.

• Chemical and Petrochemical Plants – Interfaces field sensors and transmitters with process control systems.

• Water Treatment Plants – Manages flow, pressure, and level sensors to ensure optimized process flow.

• Pharmaceutical Manufacturing – Ensures precise environmental and process monitoring.

• Metallurgy and Mining – Supports harsh-condition analog monitoring in steel mills and mining facilities.

Compatible Models

The Honeywell FC-TSJASH-1624CC works seamlessly with the following modules within the Experion and C300 controller ecosystem:

• C300 Controller

• FC-TSROCH-1624P

• FC-TSGASH-1624P

• FC-TSDI-1624

• FC-TSAI-1620

• FC-TSDO-0824

Installation Instructions

1. Ensure the control cabinet is powered down and ESD precautions are observed.

2. Mount the module on a DIN rail or fixed panel in a vertical orientation for optimal airflow.

3. Connect I/O signals via shielded twisted-pair cables.

4. Use the appropriate I/O termination assembly specified for this module.

5. Secure communication to the I/O Link interface and configure addressing using Control Builder.

6. Power up the cabinet and verify module recognition via the Experion Station.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the FC-TSJASH-1624CC module?

A1: It serves as a 16-channel analog input module for reading 4–20 mA signals from field devices.

Q2: Is the module hot-swappable?

A2: No. Power must be turned off before removing or installing the module to prevent damage.

Q3: Can this module be used in hazardous environments?

A3: Yes, it is certified to meet industrial safety and EMC standards for harsh settings.

Q4: How is the module configured after installation?

A4: Configuration is done via Honeywell’s Control Builder within the Experion PKS system.

Q5: What types of field devices can be connected?

A5: Any 4–20 mA analog transmitters, such as pressure, level, temperature, or flow sensors.

Q6: What is the accuracy of the analog input readings?

A6: The module features a 16-bit resolution, offering high accuracy for industrial applications.

Q7: What is the recommended cable type for signal connection?

A7: Shielded twisted pair cables are recommended to minimize electrical interference.

Q8: Does the module provide channel-level diagnostics?

A8: Yes, it includes channel diagnostics for open loop, short circuit, and range errors.

Q9: Is the module compatible with legacy Honeywell systems?

A9: It is primarily intended for Experion systems but may support legacy integration via I/O link interfaces.

Q10: What maintenance is required for this module?

A10: Periodic inspection for physical integrity, cable condition, and diagnostic logs via Experion HMI is recommended.
