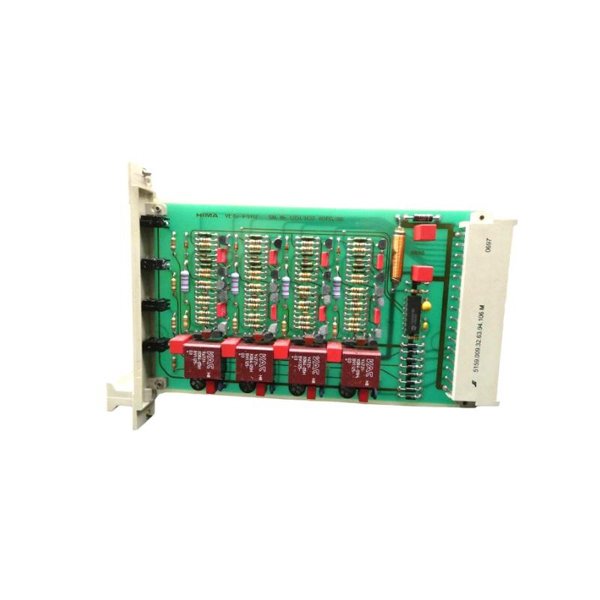

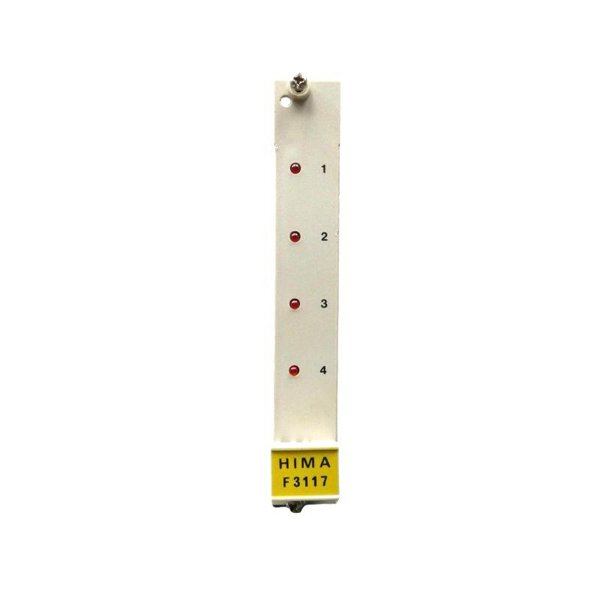

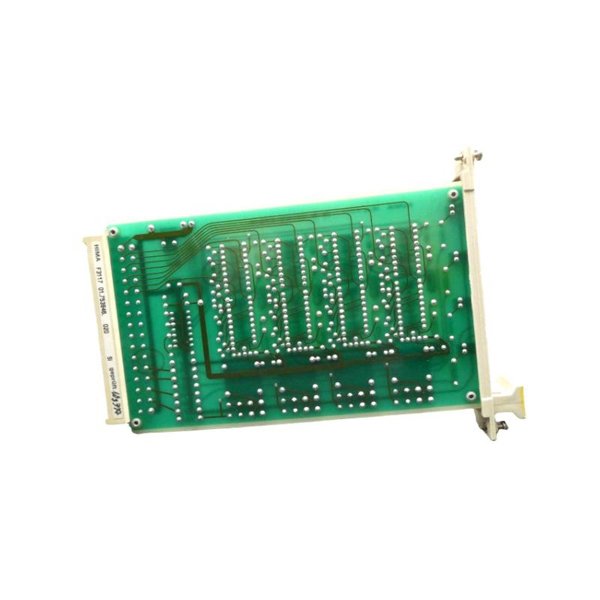

The HIMA F3117 is a Planar F System Safety Relay Amplifier Switch Module designed for reliable signal amplification and safe switching in industrial safety applications. It ensures high integrity of safety-related signals and meets stringent safety standards in critical process environments.

Technical Specifications

Applications

• Process safety systems in chemical and petrochemical plants

• Emergency shutdown systems

• Power generation safety controls

• Burner management systems

• Railway signaling and automation

• Industrial machine safety interlocks

Advantages

• Compact size with high performance

• Certified for safety-critical applications (SIL)

• Reliable signal amplification and isolation

• Easy integration into Planar F systems

• Low power consumption

• Robust and durable design for harsh environments

FAQ

Q1: What is the primary function of the HIMA F3117?

A1: It amplifies and safely switches control signals in safety-related circuits.

Q2: Is the F3117 certified for SIL applications?

A2: Yes, it is designed to meet SIL safety requirements.

Q3: What system is the F3117 compatible with?

A3: It is compatible with the HIMA Planar F safety system.

Q4: What is the supply voltage of the F3117?

A4: The supply voltage is 24 V DC.

Q5: Can the F3117 operate in high-temperature environments?

A5: It operates reliably within a range of 0 to 60°C.

Q6: How is the module mounted?

A6: It is mounted on a standard DIN rail.

Q7: What are its typical industrial applications?

A7: It is used in ESD, BMS, power plants, and process automation.

Q8: What makes the F3117 suitable for harsh conditions?

A8: Its robust design and certified safety performance ensure reliability.

Q9: Does it provide electrical isolation?

A9: Yes, it provides safe galvanic isolation of signals.

Q10: What are the dimensions and weight of the module?

A10: 130 x 25 x 120 mm, with a weight of 0.37 kg.
