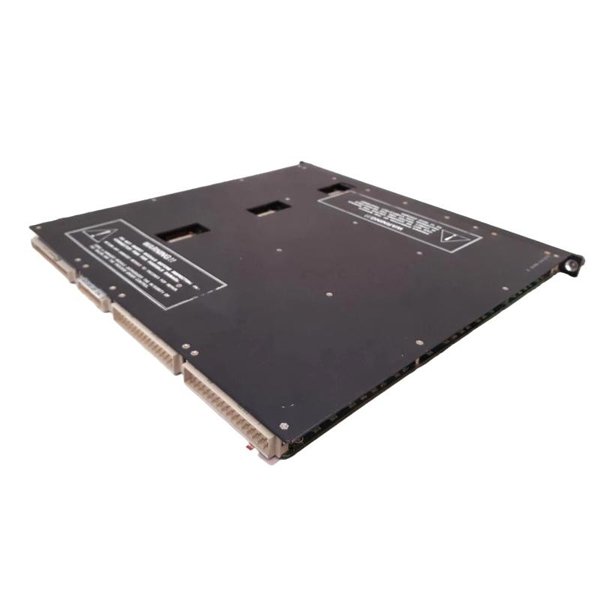

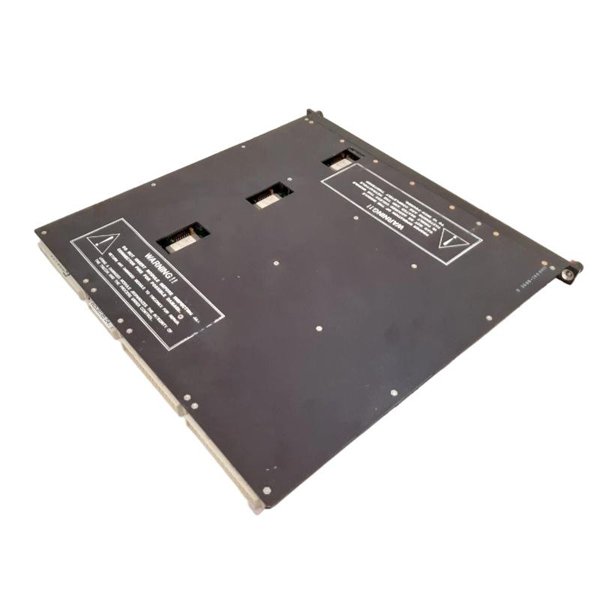

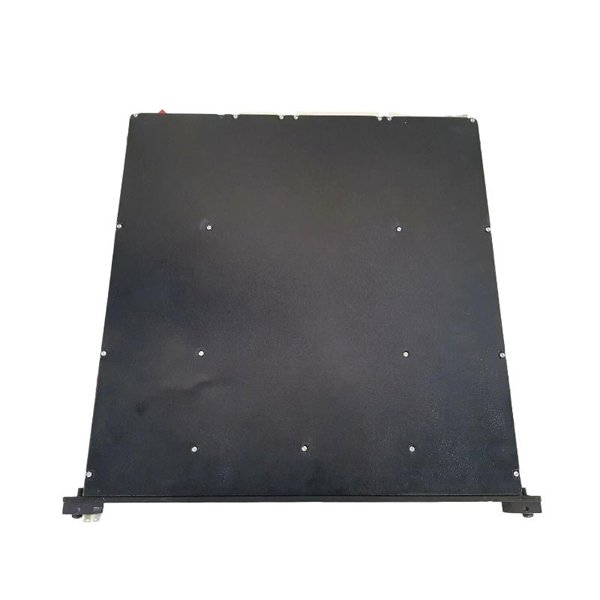

The Triconex 9100 TCP Port Module is a high-performance communication interface designed to integrate Triconex safety and control systems with modern Ethernet-based networks. It provides a reliable and secure TCP/IP connection for data exchange, enabling real-time monitoring, diagnostics, and integration with Distributed Control Systems (DCS), Human-Machine Interfaces (HMI), and third-party supervisory software.

This module supports industrial Ethernet standards and is engineered to operate in demanding industrial environments such as oil & gas, petrochemical, power generation, and process automation. With its fault-tolerant architecture and built-in security features, the 9100 ensures seamless data communication while maintaining the high safety integrity levels expected from Triconex systems.

Product Specifications

Applications

The Triconex 9100 TCP Port Module is widely deployed in mission-critical environments where secure and continuous Ethernet communication is vital:

• Safety Instrumented Systems (SIS) – Provides reliable TCP/IP interface for safety monitoring and control.

• Process Automation – Integrates real-time process data with SCADA or DCS platforms.

• Remote Monitoring – Enables remote diagnostics and system health reporting.

• Power Generation Plants – Facilitates high-speed communication between turbines, boilers, and plant control systems.

• Oil & Gas Facilities – Supports supervisory and control networks in upstream and downstream operations.

• Chemical & Pharmaceutical Production – Ensures accurate data transfer for regulatory compliance and safety.

Advantages

The Triconex 9100 TCP Port Module provides a series of technical and operational benefits:

• High-Speed Ethernet Connectivity – Ensures rapid data transfer for real-time control.

• Redundant Network Ports – Enhances availability and reliability in critical networks.

• Robust Security – Built-in encryption and user authentication prevent unauthorized access.

• Comprehensive Diagnostics – Built-in LEDs and fault logging simplify maintenance.

• Seamless Integration – Compatible with industry-standard protocols such as Modbus TCP and OPC.

• Industrial Durability – Designed to operate reliably under harsh environmental conditions.

• Safety Certification – Meets IEC 61508 SIL3 for safety instrumented systems.

• Flexible Deployment – Supports redundant architectures and scalable networking.

FAQ

1. What communication protocols does the 9100 support?

   It supports TCP/IP, Modbus TCP, and OPC-compatible protocols.

2. Does the module provide redundant network ports?

   Yes, it features dual RJ45 ports for network redundancy.

3. What is the maximum data transfer rate?

   It supports 10/100 Mbps auto-negotiation.

4. How is security implemented in the 9100 TCP Port Module?

   Through user authentication and optional encryption for data traffic.

5. Can the module operate in high-temperature environments?

   Yes, it operates reliably from –20 °C to +70 °C.

6. Is it possible to perform remote diagnostics?

   Yes, built-in diagnostics and status LEDs allow remote health monitoring.

7. What power supply is required for the module?

   The module operates at a nominal 24 VDC supply and supports redundant power inputs.

8. Does it support integration with SCADA or DCS systems?

   Yes, it is fully compatible with SCADA and DCS platforms using Modbus TCP or OPC.

9. Is the 9100 certified for use in safety instrumented systems?

   Yes, it is SIL3 certified under IEC 61508.

10. How does the module handle network failures?

    It automatically switches to the redundant port to maintain continuous communication.
