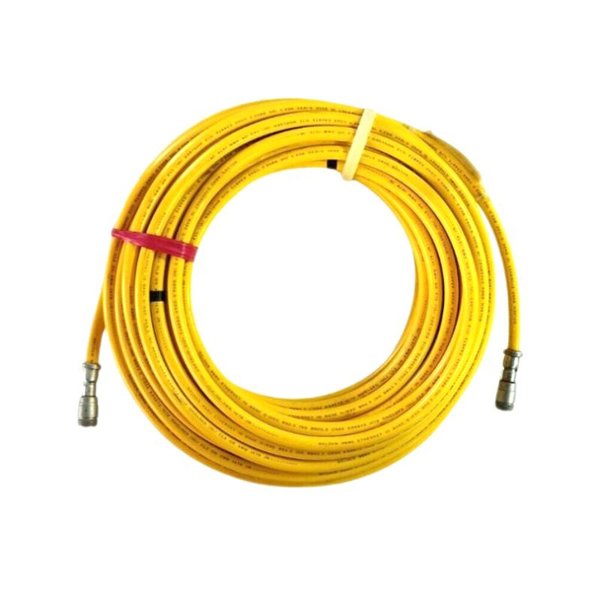

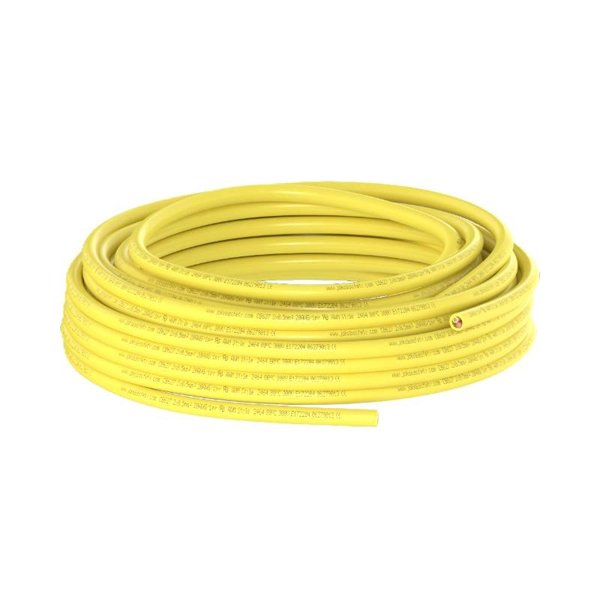

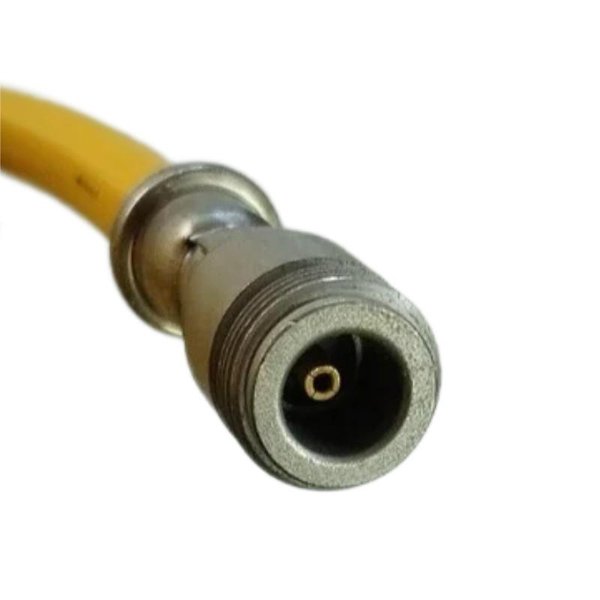

The ABB Bailey NKCL01-50 INFI-Net Cable is a precision-engineered communication cable designed specifically for ABB’s INFI-Net control network, which serves as the critical backbone of Bailey INFI 90 and Harmony Distributed Control Systems (DCS).

The NKCL01-50 model — with its 50 feet standard length — is ideally suited for medium-length interconnections between controllers, modules, and network components in industrial automation environments. Its dual-shielded construction ensures that data integrity is maintained even in environments with high electromagnetic interference (EMI) or mechanical vibration.

This cable delivers the consistent, noise-free transmission needed for high-speed, real-time process control. Whether deployed in existing ABB installations or as part of a new system rollout, the NKCL01-50 is widely trusted across industries for its reliability, durability, and ABB-certified performance.

Product Specifications

Applications

• ABB Bailey INFI-Net communication backbone

• Controller-to-controller communication in INFI 90 and Harmony DCS

• I/O module-to-controller communication

• Medium-run network segments in distributed control systems

• Process control networks in Oil & Gas refining and petrochemicals

• Power generation plant control systems (thermal, hydro, nuclear)

• Industrial water treatment and wastewater plants

• Chemical, pharmaceutical, and food & beverage automation systems

• Pulp & Paper production networks

• Metals, mining, and materials processing plants

Product Advantages

• Ideal Medium-Length Option: 50-foot length provides flexibility for inter-rack and inter-cabinet connections.

• Superior EMI/RFI Protection: Dual shielding (foil and braid) ensures signal integrity in electrically noisy environments.

• ABB-Certified for INFI-Net: Fully tested and approved for use with ABB INFI 90 / Harmony DCS networks.

• Industrial Durability: Withstands mechanical stress, vibration, and environmental extremes.

• Stable High-Speed Transmission: Maintains low capacitance and correct impedance for INFI-Net’s 2 Mbps network performance.

• Compact Design: Slim 10 mm diameter allows easy routing through control panels and conduits.

• Flame Retardant: PVC jacket rated UL VW-1 and CSA FT1 for increased safety.

• Long Service Life: Engineered for long-term use, with low maintenance needs.

• Compatible with Existing Infrastructure: Seamlessly integrates into new or legacy INFI-Net systems.

• Part of ABB Lifecycle Program: Fully supported in ABB’s modernization and lifecycle extension services.

Frequently Asked Questions (FAQ)

1. What is the primary purpose of the NKCL01-50 cable?

   It provides reliable communication between controllers and modules on the ABB INFI-Net network.

2. What is the standard length of this model?

   The NKCL01-50 is 50 feet long.

3. What network data rate does this cable support?

   It supports the INFI-Net standard 2 Mbps network speed.

4. Does the cable have EMI shielding?

   Yes, it features foil and braided shielding for excellent EMI/RFI immunity.

5. What is the nominal impedance of the NKCL01-50?

   120 Ohms nominal, optimized for INFI-Net systems.

6. Can I use this cable in retrofitted systems?

   Yes, it is ideal for both new installations and upgrades of existing ABB Bailey DCS networks.

7. Is the cable flexible for routing in control panels?

   Yes, with a 10 mm diameter and bend radius of 5x cable diameter, it is very install-friendly.

8. Is the cable approved by ABB?

   Yes, it is fully ABB-certified and used worldwide in ABB INFI 90 and Harmony systems.

9. Is this cable compliant with international standards?

   Yes, it meets CE, UL, and CSA standards.

10. What industries typically use this cable?

    It is widely used in oil & gas, power, water treatment, chemicals, pulp & paper, metals & mining, and other heavy industries.
