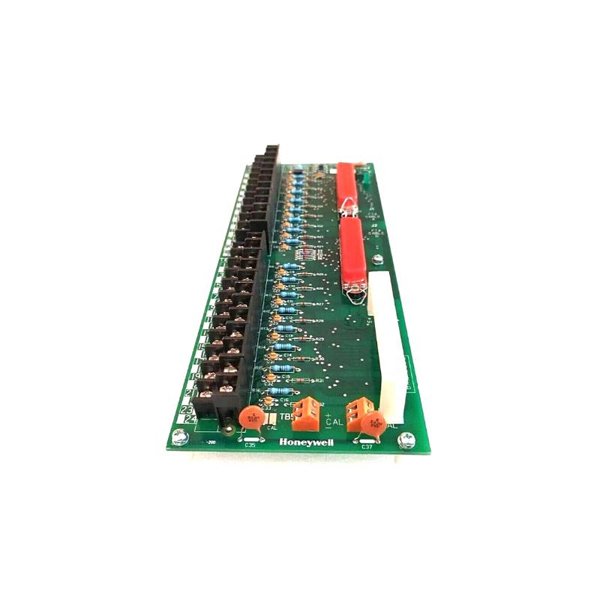

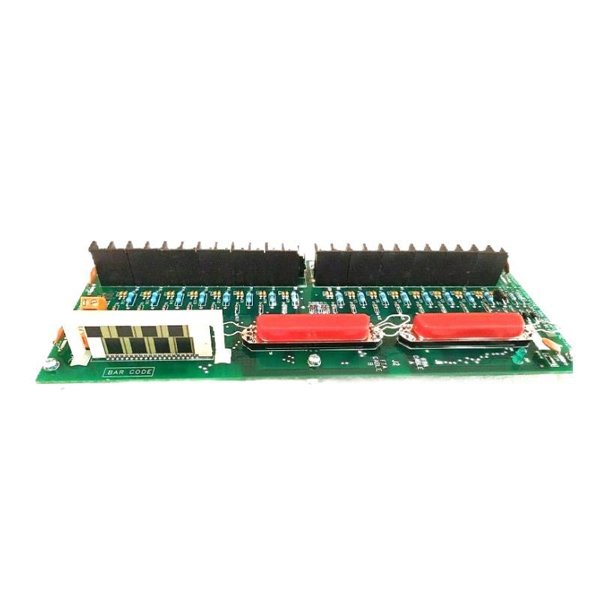

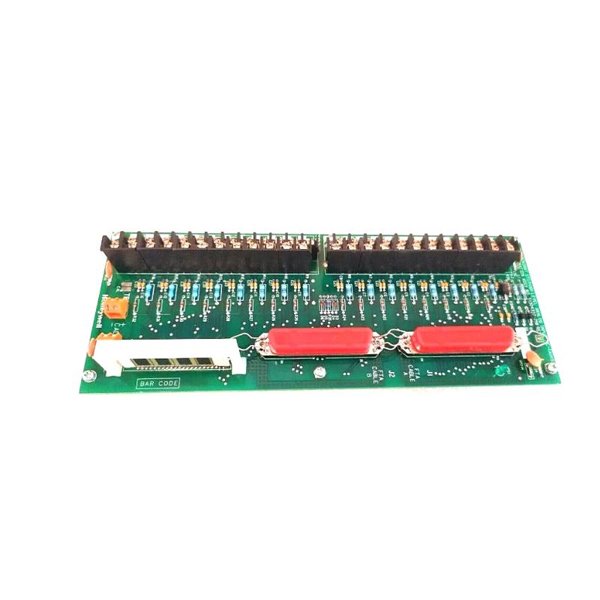

The Honeywell MC-TAIH52 51304337-250 High Level Analog Input Module is part of Honeywell’s advanced control system solutions designed for high-performance signal acquisition in industrial applications. This module is specifically engineered to handle high-level analog signals and ensure accurate and reliable data transmission to a control system, supporting a variety of critical processes in industries such as oil and gas, chemical processing, and power generation.

As part of Honeywell’s Experion PKS and other distributed control systems (DCS), the MC-TAIH52 provides a robust solution for collecting high-level analog inputs from a variety of sources, including field instruments like flow meters, temperature sensors, and other process monitoring devices. It features high-resolution analog input and is designed to work seamlessly in harsh industrial environments.

This module’s primary function is to convert high-level analog signals into usable data for control systems, enabling real-time process adjustments and improved control accuracy. Whether it’s used in manufacturing systems or power plants, the MC-TAIH52 provides high accuracy and stability that ensures processes are operated efficiently and safely.

Product Specifications

Product Applications

The Honeywell MC-TAIH52 51304337-250 High Level Analog Input Module is designed to support industries that require high-performance signal processing. Below are some of the key industries and applications where this module is widely used:

• Oil and Gas Industry: In upstream and downstream operations, the MC-TAIH52 is used for monitoring and controlling flow rates, pressures, and other critical parameters in exploration, production, and refining processes.

• Power Generation: This module plays a vital role in monitoring turbine performance, energy distribution systems, and environmental control in power plants. It is used to ensure that the plant operates at optimal efficiency.

• Chemical Processing: In chemical plants, the MC-TAIH52 is used to collect data from temperature, pressure, and flow sensors to control chemical reactions, mixing processes, and ensure compliance with safety standards.

• Manufacturing: The module is used to monitor and control automated manufacturing processes, ensuring the system’s accuracy in controlling production lines and machinery.

• Water Treatment: In water and wastewater treatment facilities, this module is used to collect data from various monitoring devices, ensuring water quality standards are met, and operational efficiency is maintained.

Product Advantages

1. High Accuracy: With an accuracy of ±0.1% FS, the MC-TAIH52 ensures precise analog signal measurements, making it ideal for applications requiring high levels of precision.

2. Multiple Input Signal Compatibility: The module supports various input signals, including 4-20 mA, 0-20 mA, and 0-10 V, providing flexibility for integration into different systems.

3. High-Resolution Measurement: The 16-bit resolution ensures fine control and detailed monitoring, allowing for fast response times in industrial systems.

4. Wide Operating Temperature Range: The MC-TAIH52 operates in extreme environments, with a temperature range of -40°C to 70°C, making it suitable for outdoor and harsh industrial conditions.

5. Compact and Easy to Install: The DIN Rail mountable design ensures ease of installation and saves space in control panels, making it an ideal solution for cramped environments.

6. Reliable Power Supply: The module operates on a 24V DC power supply, ensuring energy efficiency while delivering reliable performance.

7. Robust Construction: Built with durable materials, the MC-TAIH52 is designed to withstand industrial conditions, providing long-term reliability and reducing the need for frequent maintenance.

8. Seamless Integration: It integrates smoothly with Honeywell’s Experion PKS control systems, providing a comprehensive and reliable solution for industrial automation and process control.

9. Versatile Field Applications: The module is ideal for a wide range of process control applications, including monitoring instrumentation and control systems in complex industrial processes.

10. Minimal Maintenance Needs: With low-maintenance requirements, the MC-TAIH52 ensures continuous operation with minimal downtime, which is critical for mission-critical systems.

Frequently Asked Questions (FAQs)

1. What input signals are supported by the MC-TAIH52?

   • The module supports 4-20 mA, 0-20 mA, and 0-10 V input signals, providing compatibility with a wide range of field devices.

2. How many channels does the MC-TAIH52 module support?

   • The MC-TAIH52 supports 8 input channels.

3. What is the accuracy of the MC-TAIH52 module?

   • The MC-TAIH52 has an accuracy of ±0.1% FS.

4. What is the temperature range in which the MC-TAIH52 can operate?

   • The module operates in an environment with a temperature range of -40°C to 70°C.

5. What is the power supply requirement for the MC-TAIH52?

   • The MC-TAIH52 requires a 24V DC power supply.

6. What is the resolution of the MC-TAIH52?

   • The MC-TAIH52 provides a 16-bit resolution, ensuring fine signal measurements.

7. How is the MC-TAIH52 mounted?

   • The module is designed to be mounted on a DIN rail.

8. What is the weight of the MC-TAIH52 module?

   • The module weighs 0.5 kg.

9. What industries can benefit from using the MC-TAIH52?

   • The MC-TAIH52 is ideal for industries such as oil and gas, power generation, chemical processing, manufacturing, and water treatment.

10. Can the MC-TAIH52 module be used in hazardous environments?

• Yes, the MC-TAIH52 is designed to function in harsh industrial environments, making it suitable for hazardous applications.
