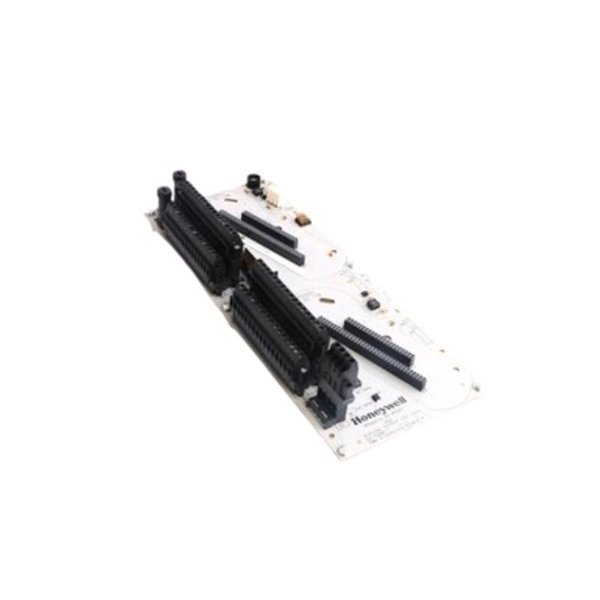

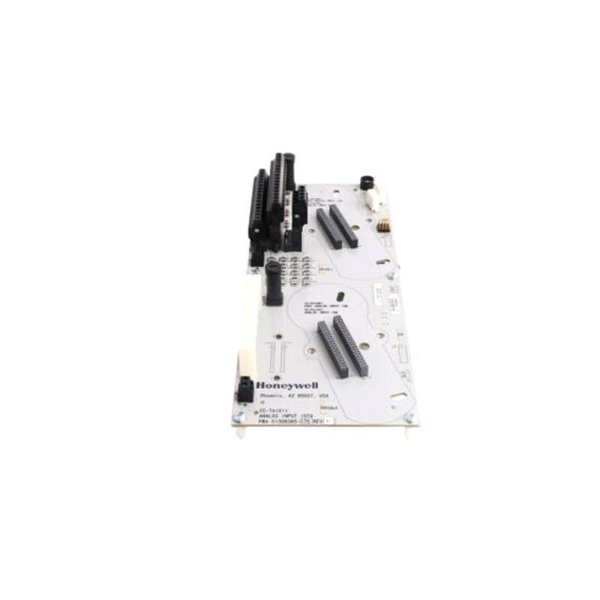

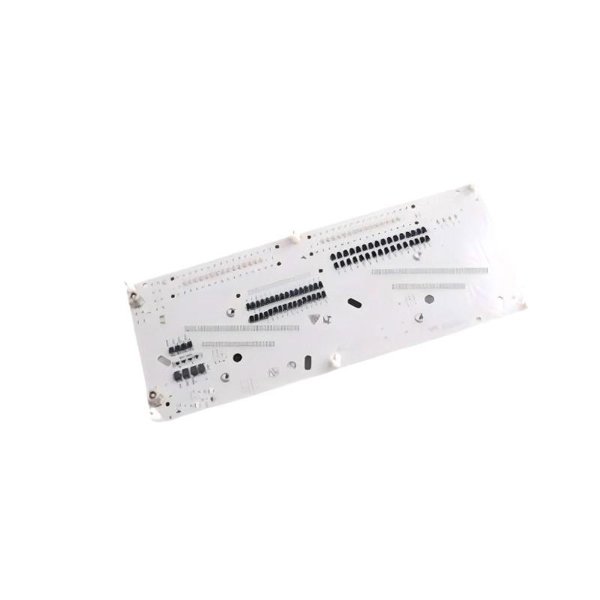

The Honeywell DC-TAIX11 is a high-performance Analog Input Module designed to provide precise and reliable signal acquisition for industrial control and monitoring systems. It belongs to Honeywell’s DC-TAI series, known for durability and accuracy in demanding environments.

This module processes analog signals from various sensors and field devices, converting them into digital signals that control systems can interpret. It features a compact footprint with dimensions of 22 x 124 x 126 mm and a weight of 1.6 kg, making it suitable for installation in tight control cabinets without compromising robustness.

The DC-TAIX11 is widely utilized in process automation, manufacturing, energy, and infrastructure projects, offering high fidelity input conversion with consistent performance.

Product Parameters

Product Applications

The Honeywell DC-TAIX11 module is designed for multiple industrial applications requiring precise analog data acquisition:

• Process Automation

  Captures sensor signals for pressure, temperature, flow, and level control in chemical, pharmaceutical, and food processing plants.

• Manufacturing

  Used for real-time monitoring of production lines, enabling fine control of machinery and equipment.

• Energy Sector

  Monitors signals from turbines, generators, and electrical systems to ensure safe and efficient operation.

• Building Automation

  Interfaces with HVAC sensors, lighting systems, and environmental monitoring devices.

• Water Treatment

  Measures sensor data for pumps, valves, and water quality monitoring instruments.

• Infrastructure Monitoring

  Supports data acquisition from structural health sensors and environmental stations.

Product Advantages

1. High Accuracy and Resolution

   The 16-bit ADC delivers precise conversion of analog signals, ensuring accurate system responses.

2. Multiple Input Types Supported

   Compatible with voltage and current inputs (4-20mA, 0-10V), offering flexibility for various sensor types.

3. Compact and Lightweight

   With dimensions of 22 x 124 x 126 mm and weight of 1.6 kg, the module fits easily into dense control panels.

4. Fast Sampling Rate

   Up to 1 kHz per channel enables real-time monitoring and control of fast-changing processes.

5. Wide Operating Temperature Range

   Designed to operate reliably between -20°C and +70°C for diverse industrial conditions.

6. Robust Power Supply Requirements

   Operates on standard 24 VDC, ensuring stable performance with common industrial power systems.

7. Easy Installation

   DIN rail mounting facilitates quick, secure installation and maintenance.

8. Reliable Signal Isolation

   Minimizes interference, ensuring clean and stable signal processing.

9. Durable Construction

   Engineered to withstand harsh environments, reducing downtime and maintenance costs.

10. Seamless Integration

    Fully compatible with Honeywell’s distributed control systems and other automation platforms.

Frequently Asked Questions (FAQ)

1. Q: What types of analog inputs does the DC-TAIX11 support?

   A: It supports voltage inputs (0-10V, ±10V) and current inputs (4-20 mA, 0-20 mA).

2. Q: How many input channels are available on the module?

   A: The module has 8 analog input channels.

3. Q: What is the input resolution?

   A: It features a 16-bit analog-to-digital converter.

4. Q: What are the physical dimensions of the module?

   A: The dimensions are 22 x 124 x 126 mm.

5. Q: What is the operating temperature range?

   A: The module operates between -20°C and +70°C.

6. Q: How is the module mounted?

   A: It uses DIN rail mounting for easy installation.

7. Q: What is the power supply requirement?

   A: It requires 24 VDC power input.

8. Q: Is the module compatible with Honeywell control systems?

   A: Yes, it integrates seamlessly with Honeywell DCS and automation systems.

9. Q: Can it be used in harsh industrial environments?

   A: Yes, it is designed for durability and reliable operation in harsh conditions.

10. Q: What is the maximum sampling rate?

    A: Up to 1 kHz per channel.
