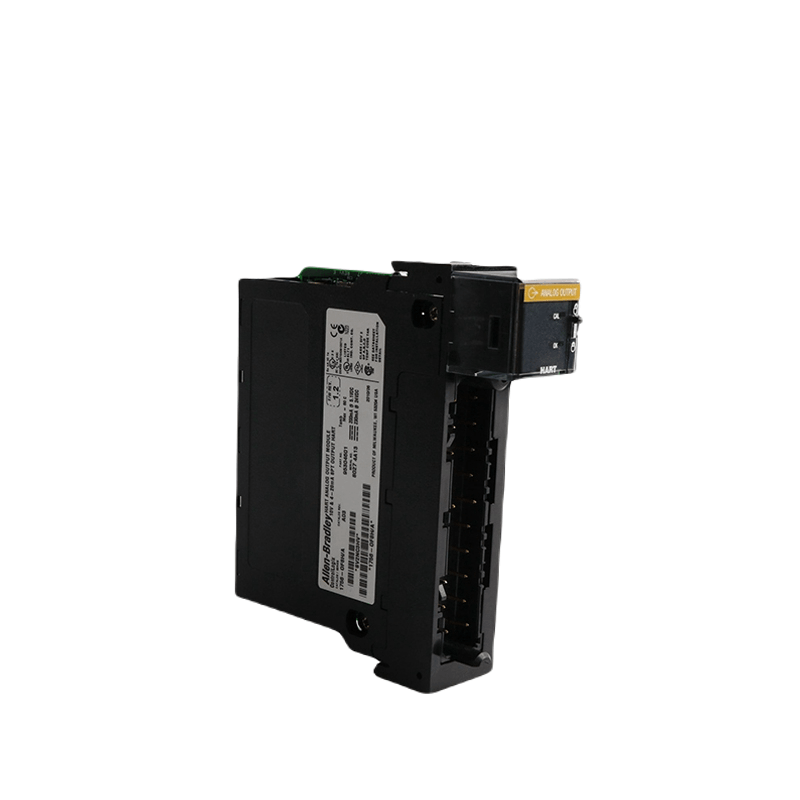

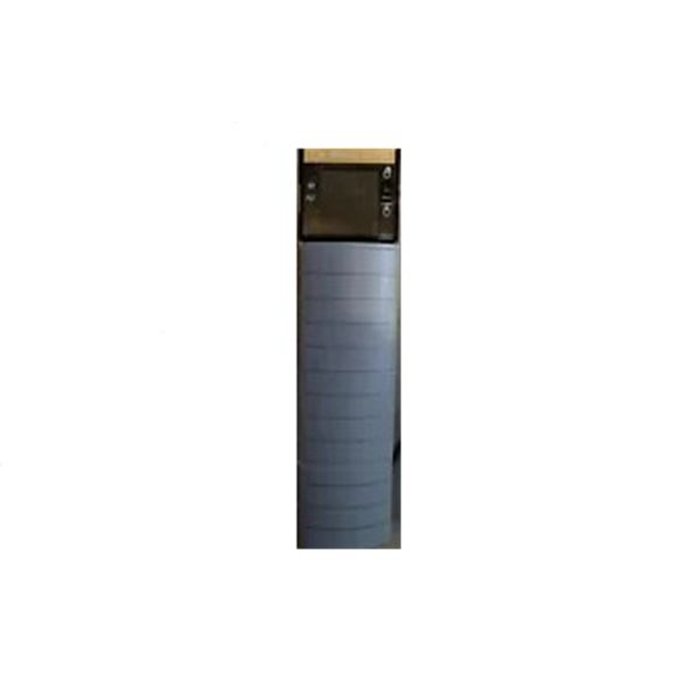

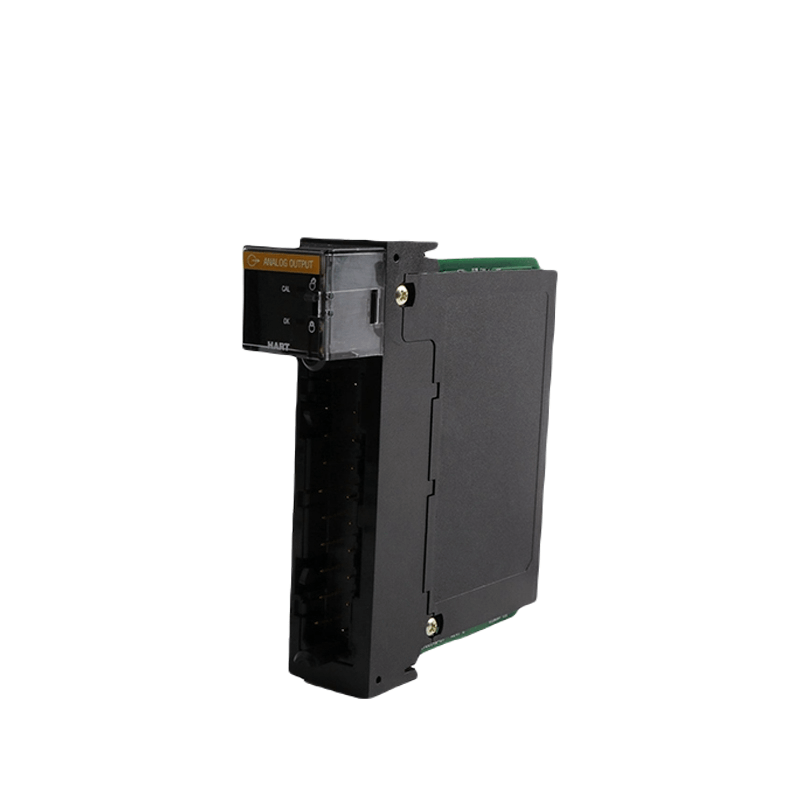

Allen-Bradley 1756-OF8 ControlLogix 8 Pt A/O I or V Module
Manufacturer: Allen-Bradley Rockwell
Part Number: 1756-OF8
Type: Analog Output Module (ControlLogix)
Number of Channels: 8 isolated outputs
Output Types: 4-20 mA (0.5-20.5 mA), 0-10 V, ±10 V (configurable per channel)
Resolution: 16-bit
Backplane Current: 400 mA at 5.1 V, 50 mA at 24 V
Power Dissipation: 4.7 W
Accuracy: ±0.1% of range
Isolation: 250 V continuous (channel-to-backplane)
Operating Temperature: 0°C to +60°C
Application: Analog output control for actuators, valves, drives
Product Description
The 1756-OF8 is an 8-point, isolated analog output module for the ControlLogix 5580 Controllers. It provides 4-20 mA or 0-10 VDC output signals, with a maximum output current of 100 mA per channel. The module is isolated from the controller, providing protection against electrical noise and ground loops.
Features
- 8-point, isolated analog output
- 4-20 mA or 0-10 VDC output signals
- Maximum output current of 100 mA per channel
- Isolated from the controller
- High-speed communication
- DIN rail mounting
Technical specifications
- Voltage range: 10-31 VDC
- Current range: 4-20 mA or 0-10 VDC
- Output current: 100 mA per channel
- Isolation voltage: 3,000 VDC
- Communication rate: 19.2 kbps
- Dimensions: 4.3 x 2.1 x 0.7 in. (110 x 53 x 18 mm)
- Weight: 0.3 lb (0.14 kg)
