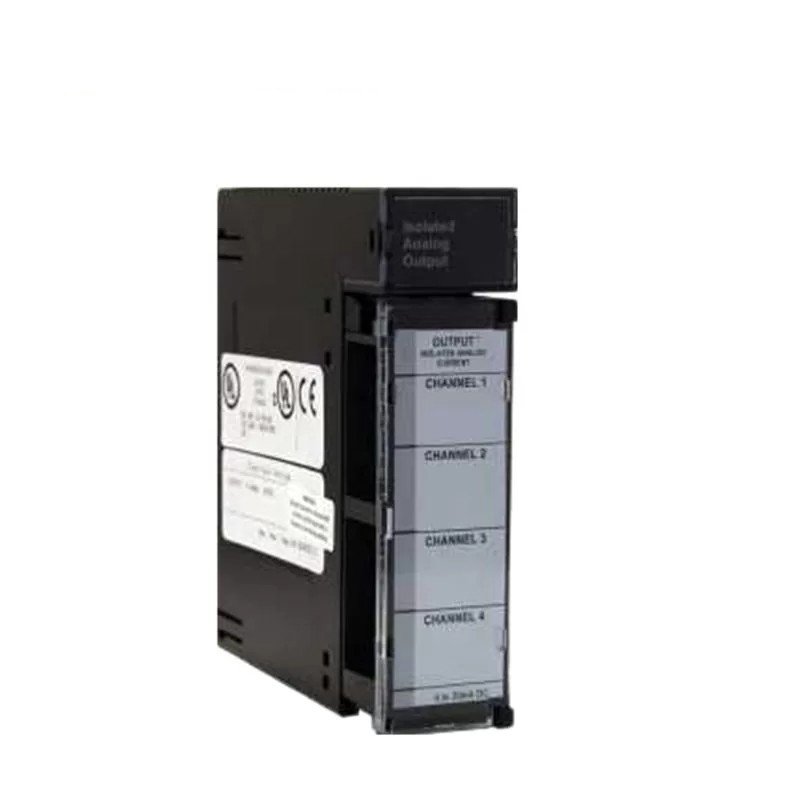

GE Fanuc HE693DAC420 Isolated Analog Output Module
Manufacturer: GE Fanuc
Product Number: HE693DAC420
Category: Isolated Analog Output Module (Series 90-30)
Number of Channels: 4
Output Signal Types: 4-20mA or 0-20mA (configurable)
Resolution: 14-bit (13 bits plus sign)
Accuracy: ±0.1% full scale (4-20mA), ±0.15% (0-20mA)
Isolation: 1500VAC channel-to-channel, 2000VDC channel-to-ground
Load Impedance: ≤1.1 kΩ at 24V loop voltage
Response Time: ≤2 ms settling to 0.1% accuracy
Power Consumption: 90mA @ 5VDC, 120mA @ 24VDC
Operating Temperature: -40°C to +60°C
System Compatibility: GE Fanuc Series 90-30 PLC
Product Description
The GE Fanuc HE693DAC420 is an isolated analog output module designed for industrial automation applications. It provides a reliable solution for controlling various processes.
Key Features and Specifications
- Isolated: The module’s circuitry is electrically separated from the system bus. This design enhances noise immunity and improves safety.
- Analog Output: It generates analog signals, such as voltage or current, to control devices like valves, motors, or actuators.
- Number of Channels: This module supports multiple analog outputs. The exact number may vary depending on the specific model.
- Voltage/Current Range: It can output a range of voltage or current, allowing for flexible control of different devices.
- Resolution: The module’s resolution affects the precision of the output signal, impacting control accuracy.
- Communication: It communicates with a PLC or other control systems via a specific communication protocol.
Applications
- Process Control: Regulates temperature, pressure, flow rate, and other process variables.
- Motor Control: Controls the speed and torque of motors.
- Data Acquisition: Converts analog signals from sensors into digital values for further processing.
