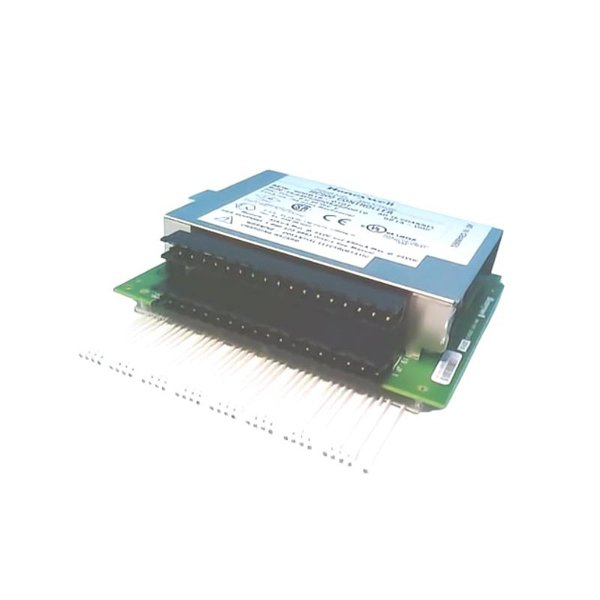

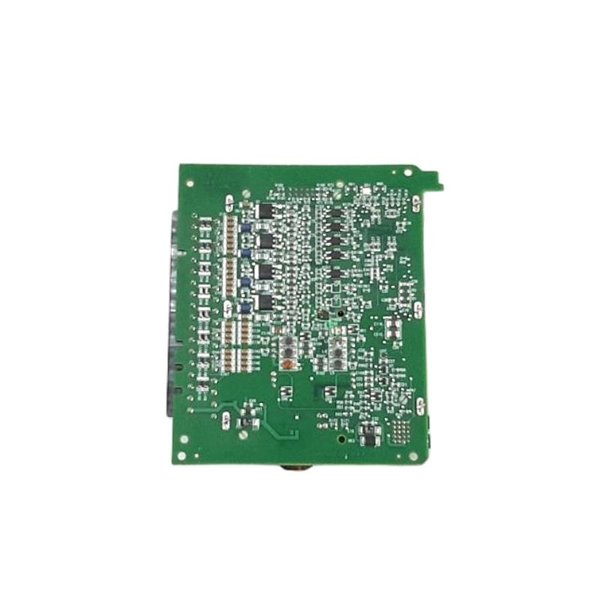

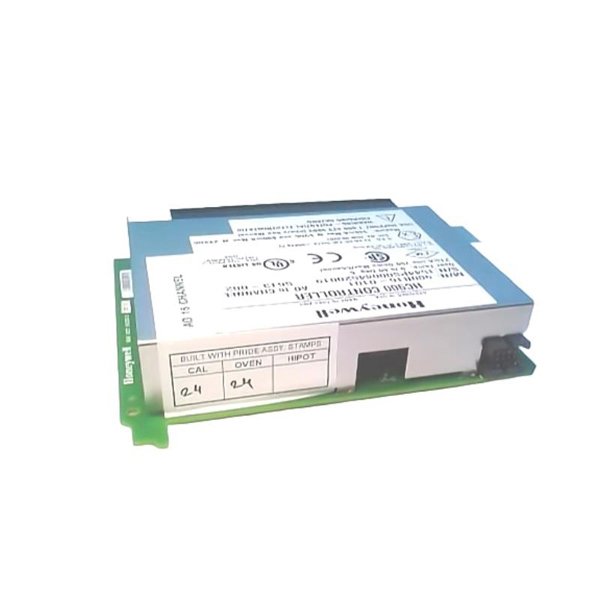

The Honeywell 900B16-0101 Analog Output Module is part of Honeywell’s family of industrial control systems designed for precise, reliable signal management in various automation applications. This module plays a crucial role in converting digital signals into accurate, analog outputs that are essential for controlling processes such as valves, actuators, and other industrial equipment. Designed for ease of integration and robust performance, the 900B16-0101 is ideal for industries that demand high-accuracy control with minimal downtime.

Product Specifications

Product Applications

The Honeywell 900B16-0101 Analog Output Module is ideal for applications across various industrial sectors, including:

• Process Control Systems: Used in industries such as chemical, pharmaceutical, and oil & gas to precisely control valves, dampers, and actuators.

• Automation Systems: Perfect for controlling systems where consistent and reliable analog output is required for feedback mechanisms in automation loops.

• Building Management Systems: Provides accurate output signals for HVAC systems, lighting controls, and other building automation devices.

• Energy Management: Applied in systems that require real-time monitoring and control, such as power plants, to regulate output to machines and processes.

Product Advantages

1. High Accuracy and Reliability: With an accuracy of ±0.1% FS, the module ensures precise signal conversion, which is essential in critical control applications.

2. Flexible Output Range: Supporting 4-20 mA current output, this module is highly versatile and can be easily integrated into a wide range of industrial systems.

3. Quick Response Time: Its <100 ms response time ensures that the module can handle fast-changing industrial environments and processes.

4. Wide Operating Temperature: The module operates effectively in a temperature range from -20°C to +60°C, making it suitable for harsh environments.

5. Space-saving Design: With compact dimensions (140 x 120 x 100 mm), the module can be easily installed in crowded control panels, saving valuable space.

6. DIN Rail Mountable: It simplifies installation, allowing for a secure and easy-to-manage mounting on standard DIN rails.

FAQ

1. What is the output range of the Honeywell 900B16-0101 Analog Output Module?

   The module provides a 4-20 mA output range, which is standard for many industrial control systems.

2. Can this module be used in hazardous environments?

   While it is designed for general industrial use, specific certifications for hazardous environments should be checked based on the application.

3. What is the response time of the Honeywell 900B16-0101?

   The response time is less than 100 ms, ensuring it can quickly adapt to changes in the system.

4. What power supply does this module require?

   The module requires a 24 V DC power supply.

5. How many output channels does the 900B16-0101 have?

   It has 16 output channels for managing multiple devices in complex systems.

6. What is the accuracy of the output signal?

   The accuracy is ±0.1% of the full-scale output.

7. What is the operating temperature range of the module?

   The operating temperature range is from -20°C to +60°C.

8. How is the Honeywell 900B16-0101 mounted?

   It is designed to be mounted on a DIN rail, which simplifies installation.

9. What industries can benefit from this module?

   Industries such as chemical, pharmaceutical, oil & gas, building management, and energy management can all benefit from the 900B16-0101.

10. Is the module easy to integrate with existing systems?

    Yes, the 900B16-0101 is designed to be easily integrated with existing industrial automation systems, offering seamless compatibility.
