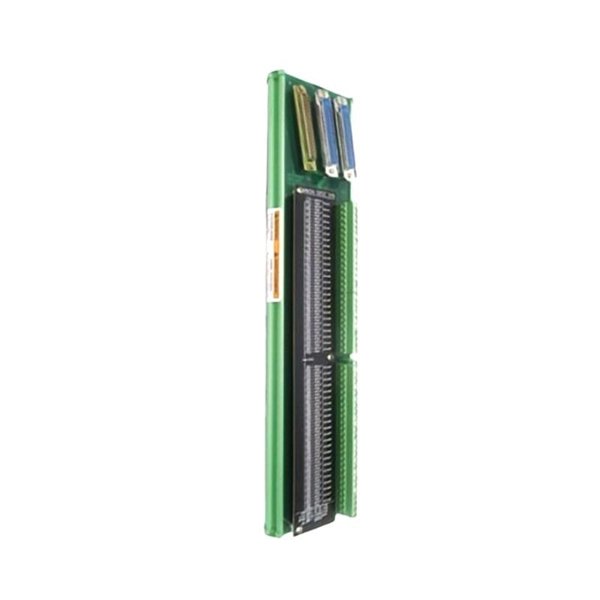

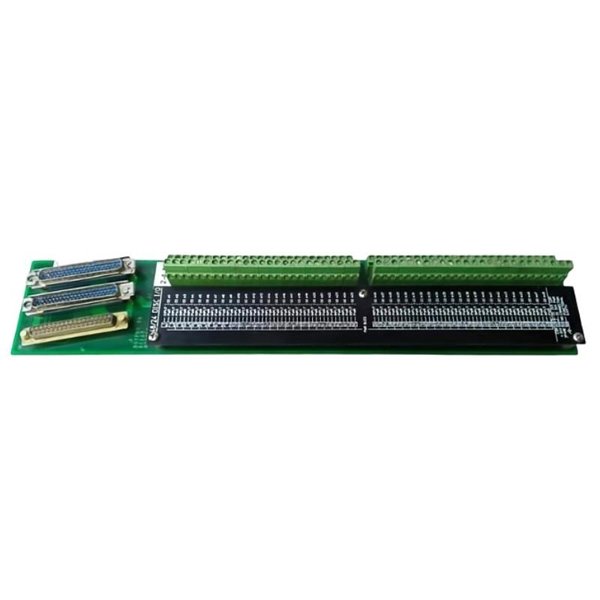

The Woodward 5501-367 Simplex LV Discrete FTM Module is a highly efficient, versatile, and reliable module designed for use in industrial control systems. It is part of Woodward’s well-established control system platform, providing discrete input and output functionality for various control applications. The module operates within the Low Voltage (LV) range, offering robust performance in both simple and complex industrial environments.

This module is used to interface with discrete devices, converting signals from sensors, switches, and other input devices to be processed by the control system. With its compact and reliable design, the Woodward 5501-367 is suitable for a wide range of applications, including power generation, manufacturing, and automation systems.

Technical Specifications

Applications

The Woodward 5501-367 Simplex LV Discrete FTM Module is widely used in a variety of industries where high-performance control and signal conversion are needed:

• Power Generation: Used to interface with various power generation equipment, providing reliable signal processing for turbines, generators, and transformers.

• Industrial Automation: Ideal for use in factories, where it connects input/output devices such as limit switches, sensors, and actuators with automation systems.

• Oil & Gas: Facilitates discrete signal conversion in control systems that manage oil rigs, pipelines, and gas processing facilities.

• Manufacturing: Supports production lines by integrating sensors and devices into automated control systems, ensuring precision and efficiency.

• Marine: Used in controlling ship engines and monitoring systems where discrete signal conversion is critical.

• Transportation: Provides integration solutions for transportation systems requiring discrete control signals for safety, communication, and monitoring.

Advantages

• Compact and Reliable Design: The module is designed to fit within standard 19-inch racks, saving valuable space while ensuring high reliability.

• Multiple Communication Protocols: With support for CANopen and MODBUS, it can easily integrate with existing industrial systems.

• Wide Temperature Range: The module operates effectively in temperatures ranging from -40°C to +70°C, making it suitable for diverse industrial environments.

• High-Speed Performance: With a response time of less than 10 milliseconds, the module can process signals quickly and accurately, supporting high-speed control applications.

• Redundancy Options: Supports redundant configurations for enhanced reliability and fault tolerance in critical systems.

• Low Power Consumption: With a power consumption of only 8W, the module is energy-efficient, helping to reduce operational costs.

• Easy Integration: The Woodward 5501-367 module can be easily integrated into various industrial control systems, improving system functionality.

• Global Compliance: The module meets global standards such as UL, CE, and RoHS, ensuring safety, quality, and environmental compatibility.

• High Number of I/O Channels: Offers 16 discrete inputs and outputs, allowing for versatile connectivity with various industrial devices.

• Durable and Rugged: Designed to endure harsh industrial environments, ensuring long-lasting operation in demanding conditions.

FAQs

1. What is the purpose of the Woodward 5501-367 Simplex LV Discrete FTM Module?

It serves as an interface between discrete devices like sensors, switches, and actuators, and control systems, converting signals for further processing.

2. How many discrete inputs and outputs does the module support?

The module supports 16 discrete inputs and 16 discrete outputs.

3. What communication protocols are supported by the module?

It supports CANopen and MODBUS communication protocols.

4. What is the operating voltage for this module?

The module operates at 24V DC.

5. What is the response time of the module?

The response time is less than 10 milliseconds.

6. What is the power consumption of the Woodward 5501-367 module?

The power consumption is 8W, making it energy-efficient.

7. Can this module be used in extreme temperatures?

Yes, the module can operate in temperatures ranging from -40°C to +70°C.

8. What certifications does the module have?

The module is certified with UL, CE, and RoHS compliance.

9. What is the size of the module?

The module has dimensions of 222 x 371 x 136 mm.

10. How is this module mounted in control panels?

The module is rack-mountable and fits standard 19-inch racks.
