Manufacturer:Yokogawa
Product Number:NFDR541-P00 S2
Product Type:Relay Output Module
Origin:Japan
Dimensions:130 x 111.5 x 32.8mm
Weight :0.3 kg
Views:123
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

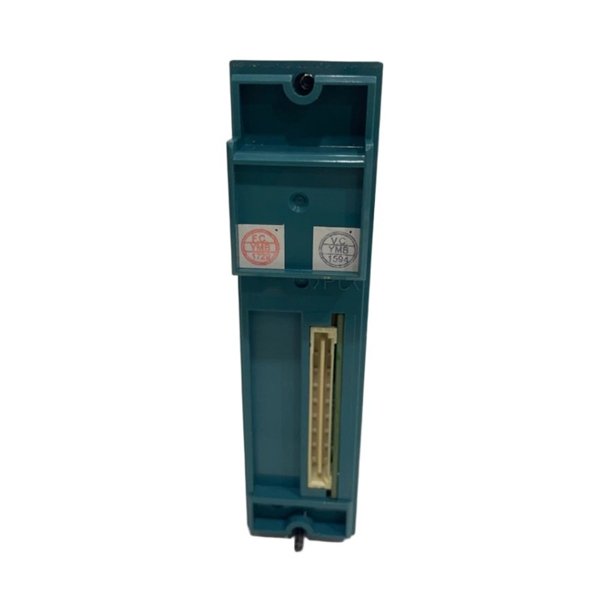

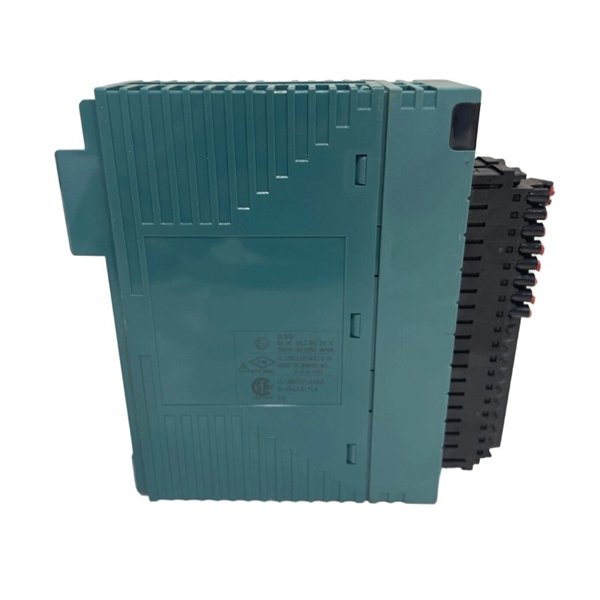

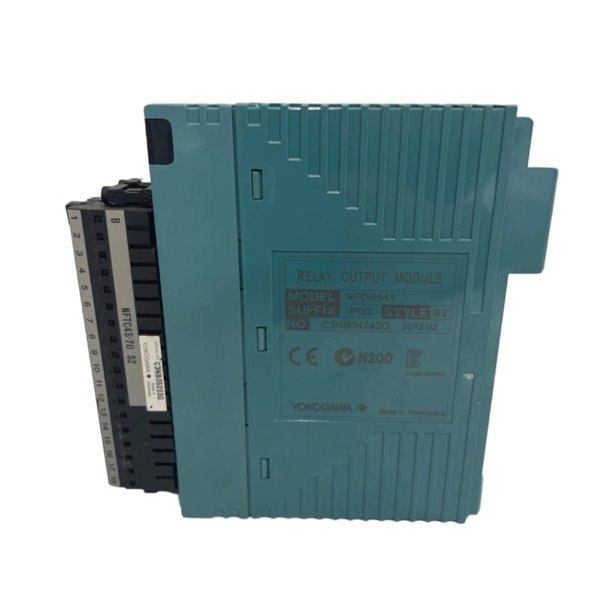

The Yokogawa NFDR541-P00 S2 is a high-performance relay output module designed for industrial automation and control systems. It forms part of the FA-M3/FA-M3V or CENTUM series, providing reliable digital output functionality. This module enables precise control of actuators, alarms, and signaling devices in complex process control environments. Built with robust engineering, the NFDR541-P00 S2 ensures stable operation even under harsh industrial conditions.
| Parameter | Specification |
|---|---|
| Model | NFDR541-P00 S2 |
| Type | Relay Output Module |
| Output Type | SPST Relay |
| Number of Channels | 4 |
| Output Current Rating | 2 A 250 VAC / 30 VDC |
| Response Time | 10 ms |
| Operating Voltage | 24 VDC nominal |
| Power Consumption | 2.5 W typical |
| Operating Temperature | 0–55 °C |
| Storage Temperature | -20–75 °C |
| Dimensions | 130 x 111.5 x 32.8mm |
| Weight | 0.3 kg |
| Mounting | DIN rail or panel mount |
| Communication Interface | Backplane connection to controller |
Driving alarms and signal indicators in control rooms
Activating valves, pumps, or other actuators in process plants
Safety interlock operations requiring reliable switching
Discrete control in chemical, power, and water treatment plants
High Reliability: Designed for continuous industrial operation with stable relay performance.
Versatile Output Control: Can switch AC or DC loads with rated currents up to 2 A.
Fast Response Time: 10 ms typical switching time allows for precise control.
Compact Design: Slim 22.5 mm width saves panel space.
Easy Installation: DIN rail or panel mounting for flexible deployment.
Robust Isolation: Photocoupler isolation prevents signal interference and protects the controller.
Q: What is the maximum switching current of the NFDR541-P00 S2?
A: The module supports up to 2 A per channel at 250 VAC or 30 VDC.
Q: Can it switch DC loads?
A: Yes, it can handle DC loads up to 30 VDC and 2 A.
Q: What is the typical relay response time?
A: Approximately 10 milliseconds.
Q: Is there electrical isolation between input and output?
A: Yes, it uses photocoupler isolation for all channels.
Q: How does it communicate with the main controller?
A: Through the backplane interface of the FA-M3 or CENTUM system.
Q: Can multiple modules be used together?
A: Yes, multiple NFDR541-P00 S2 modules can be installed on the same backplane to expand output channels.
Q: What is the rated operating voltage for the module?
A: 24 VDC nominal input.
Q: Can the module be used in high-temperature environments?
A: It operates safely between 0–55 °C.
Q: What protection features does the module have?
A: Photocoupler isolation protects the system against electrical noise and voltage spikes.
Q: How is the module mounted?
A: It supports both DIN rail and panel mounting methods.
