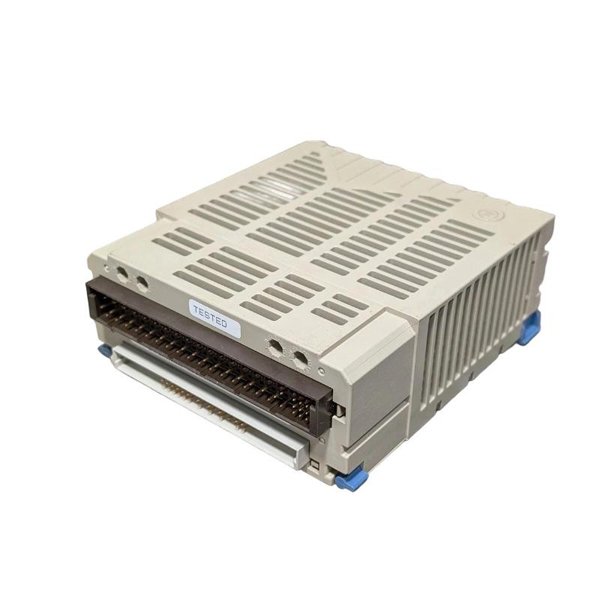

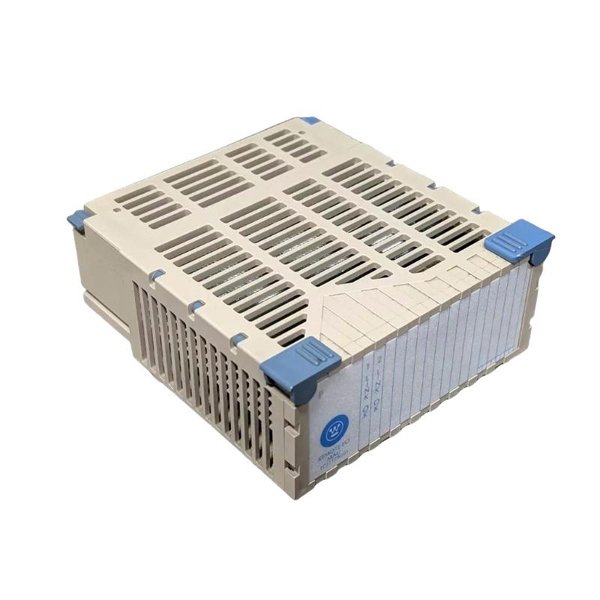

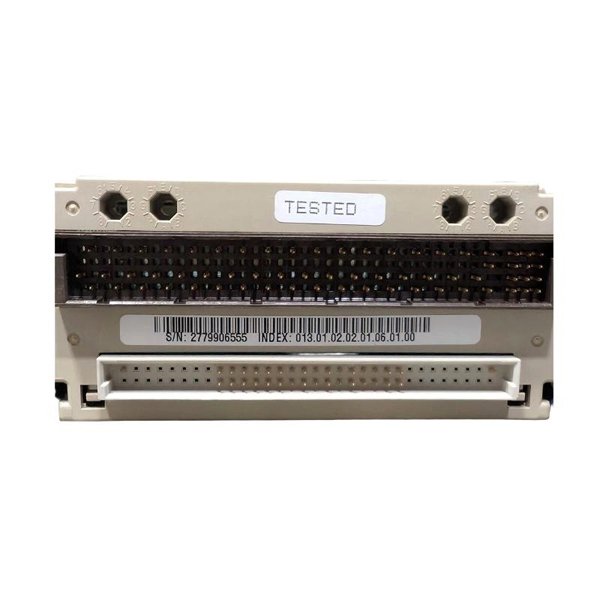

The Ovation 1C31179G01 Remote I/O Module is designed to address the growing need for decentralized control and monitoring in industrial processes. It provides a flexible and scalable solution for connecting remote field devices such as sensors, actuators, and other equipment to the central control system.

This module supports both analog and digital signals and offers the ability to control and monitor up to 16 I/O channels remotely. It is designed to ensure that critical data is accurately communicated to the Ovation system, while also allowing operators to send control commands back to field devices.

The module features reliable communication protocols, making it easy to integrate with existing control systems, even across geographically dispersed locations. Its compact size and rugged construction allow it to perform in harsh industrial environments while maintaining high performance.

Technical Specifications

Applications

The Ovation 1C31179G01 Remote I/O Module is designed for use in a wide range of industries where the need for distributed monitoring and control is essential. Some of the key applications include:

1. Power Generation: Used for monitoring and controlling generators, turbines, and other critical systems in power plants.

2. Oil & Gas: Connects remote field devices, such as pressure sensors, temperature monitors, and flow meters, in oil fields or drilling sites.

3. Chemical Processing: Facilitates the monitoring and control of chemical reactions, temperature, pressure, and flow in production facilities.

4. Water Treatment: Used in water and wastewater treatment plants to control pumps, filtration systems, and dosing equipment.

5. Manufacturing: Provides distributed control over automated production lines, allowing real-time monitoring and feedback from remote sensors and actuators.

6. Building Automation: Enables remote control and monitoring of HVAC systems, security systems, and lighting in large commercial and residential buildings.

Advantages

1. Remote I/O Capability: Enables control and monitoring from distant or hard-to-reach locations, reducing the need for additional equipment and installation costs.

2. Scalability: The module supports up to 16 I/O channels, allowing for future expansion as system requirements grow.

3. Versatile Signal Handling: Supports both analog and digital signals (e.g., 4-20mA, 0-10V), making it adaptable to a wide range of field devices.

4. Compact and Rugged Design: Built to withstand tough industrial conditions with a small form factor for easy integration into tight spaces.

5. Seamless Integration: Easily integrates with the Ovation control system, ensuring reliable data communication and control.

6. High Reliability: The module operates in a wide temperature range (-20°C to 60°C) and is built for continuous, long-term use in demanding environments.

7. Energy Efficient: Designed with a 24V DC power supply, the module helps minimize energy consumption.

8. Certification and Compliance: CE and UL certified, ensuring that the module meets international safety and quality standards.

9. Flexible Communication: Supports both Modbus and Ethernet/IP protocols, ensuring compatibility with various control systems and communication networks.

10. Improved Productivity: Remote I/O management allows for faster response times, minimizing downtime and improving system efficiency.

FAQ

1. What is the primary purpose of the Ovation 1C31179G01 Remote I/O Module?

   • The module facilitates remote connection and control of input/output devices, such as sensors and actuators, within an industrial environment. It ensures real-time monitoring and control over a distributed network.

2. What types of signals can the Ovation 1C31179G01 handle?

   • It supports both analog signals (e.g., 4-20mA, 0-10V) and digital signals, making it versatile for various field devices.

3. How many I/O channels does the module support?

   • The Ovation 1C31179G01 can handle up to 16 I/O channels, allowing for extensive remote monitoring and control.

4. What is the power supply requirement for this module?

   • The module operates on a 24V DC power supply, which ensures energy efficiency while maintaining high performance.

5. What are the environmental conditions for operating the module?

   • The module operates within a temperature range of -20°C to 60°C, making it suitable for a variety of industrial applications.

6. Can the Ovation 1C31179G01 be used outdoors?

   • While designed for industrial environments, the module should be installed in a protective enclosure if used outdoors to shield it from environmental elements.

7. Is the Ovation 1C31179G01 compatible with other Ovation modules?

   • Yes, it seamlessly integrates with other Ovation modules, making it easy to expand and scale the Ovation control system.

8. What communication protocols are supported by the module?

   • The module supports Modbus and Ethernet/IP communication protocols, ensuring compatibility with modern control systems.

9. How is the module mounted?

   • The Ovation 1C31179G01 is designed for DIN rail mounting, allowing easy installation in control panels.

10. What industries typically use the Ovation 1C31179G01 Remote I/O Module?

    • The module is commonly used in industries such as power generation, oil & gas, chemical processing, water treatment, manufacturing, and building automation.
