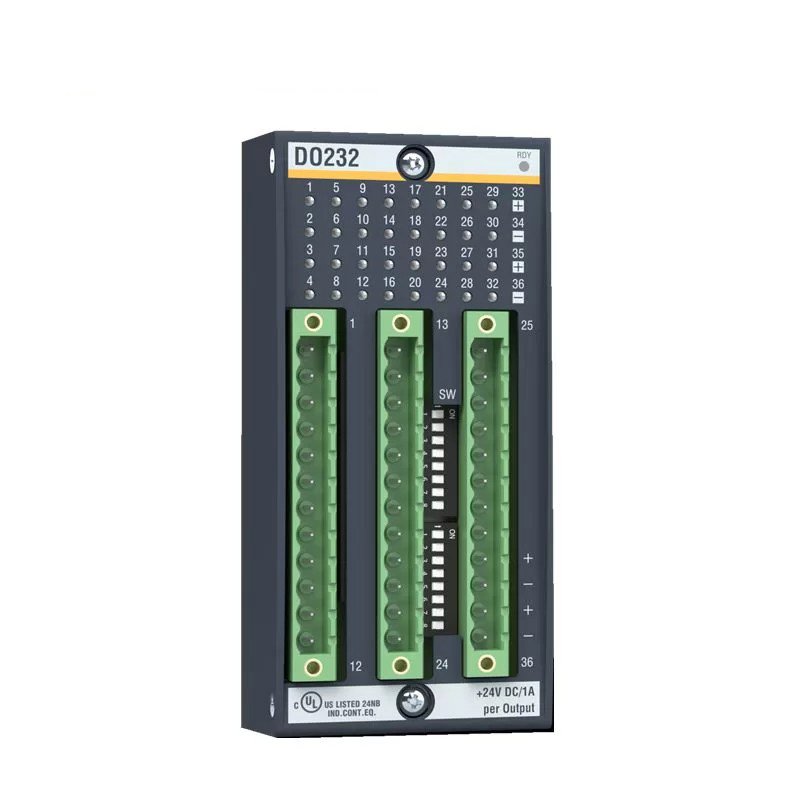

Bachmann DO232 Digital Output Module

The Bachmann DO232 is a digital output module designed for industrial automation. It provides a compact and reliable solution for controlling various electrical devices and systems. Typically, it works with programmable logic controllers (PLCs) to manage discrete outputs.

Key Features

• 32 Digital Outputs: The DO232 includes 32 individual digital outputs. This feature enables simultaneous control of multiple devices or processes.
• 24 VDC Output Voltage: It operates at 24 volts DC. This voltage is compatible with a broad range of industrial equipment.
• High Current Capacity: Each output handles up to 1 ampere. This capacity supports most application needs.
• Isolation: The module features output isolation from its power supply and other components. This design enhances reliability and prevents interference.
• Grouping: Outputs are often grouped. This organization allows for flexible and efficient control.
• Parallel Connectability: Outputs can connect in parallel. This setup increases the current capacity when needed.

Technical Specifications

• Number of Outputs: 32
• Output Voltage: 24 VDC
• Output Current: 1 A per output
• Isolation: Yes
• Mounting: DIN rail
• Operating Temperature: -20°C to +60°C

Applications

The Bachmann DO232 is used in various industries:

• Automation: It controls motors, valves, solenoids, and other actuators.
• Process Control: It monitors and manages industrial processes.
• Machine Building: It integrates into custom-built machinery.
• Building Automation: It controls lighting, HVAC systems, and security systems.
