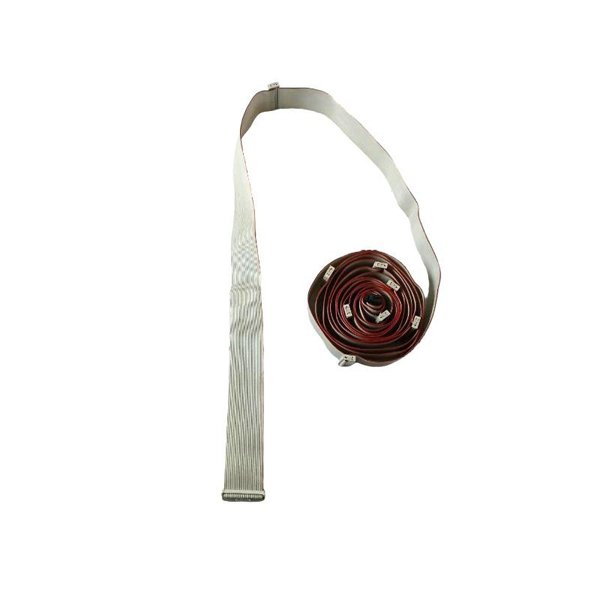

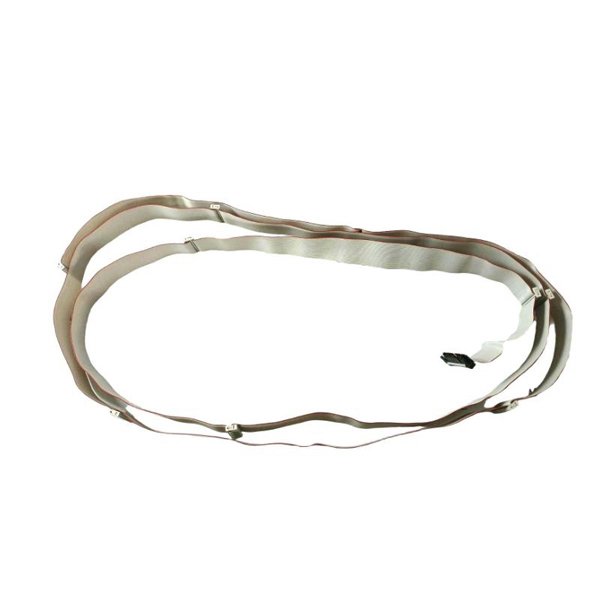

The Honeywell FS-IOBUS-CPIOX is an I/O bus cable designed to connect the controller chassis to the I/O chassis in Honeywell’s safety and process control systems. It ensures reliable communication between control processors and field I/O modules, maintaining high system integrity and performance in critical applications.

Technical Specifications

Applications

• Safety and process control systems

• Connection between controller and I/O racks

• Power plants, oil & gas, and chemical industries

• Mission-critical industrial automation environments

Advantages

• High reliability in harsh industrial environments

• Secure locking connectors for stable connections

• Optimized signal integrity and shielding

• Lightweight and easy to install

• Fully compatible with Honeywell Safety Manager and ControlEdge systems

FAQ

Q1: What is the main purpose of the FS-IOBUS-CPIOX?

A1: It connects the controller chassis to the I/O chassis for data and control signal transmission.

Q2: Is it compatible with Honeywell Safety Manager systems?

A2: Yes, it is fully compatible with Honeywell Safety Manager and ControlEdge systems.

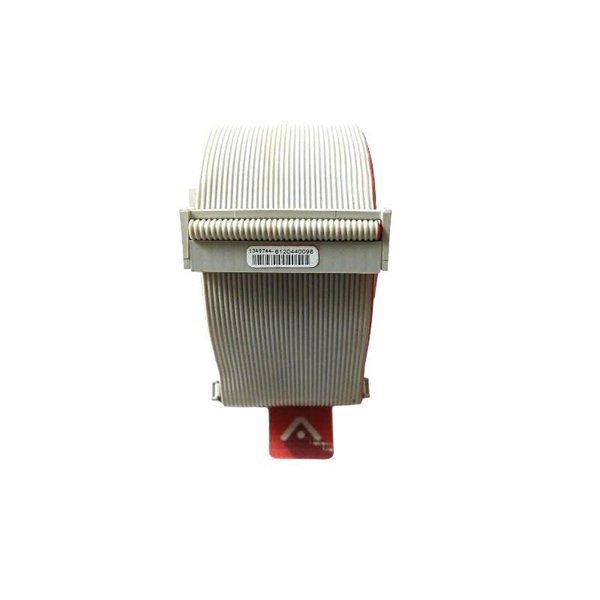

Q3: What type of connector does it use?

A3: It uses a 34 pole latch (female) connector.

Q4: How much does the cable weigh?

A4: The weight of the cable is 0.31 kg.

Q5: Can it be used in high-temperature environments?

A5: Yes, it supports operating temperatures from -20°C to +70°C.

Q6: Are custom lengths available?

A6: Yes, Honeywell can supply custom cable lengths as required.

Q7: Does it support redundant configurations?

A7: Yes, it can be used in redundant setups for added reliability.

Q8: Is the cable shielded?

A8: Yes, it features industrial-grade shielding for signal integrity.

Q9: How is the connector secured?

A9: The connector uses a secure latch mechanism to prevent disconnection.

Q10: Can it be used outdoors?

A10: It is intended for indoor industrial use, with appropriate environmental protection.
