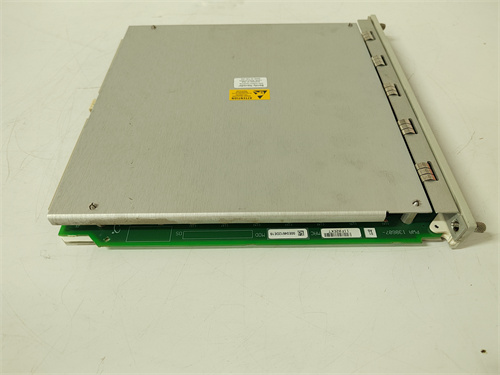

BENTLY 3500 22M 138607-01 Product Overview

The 3500/22M 138607-01 transient data interface(TDI)module is the interface between the 3500 monitoring system and compatible software(such as System 1 condition monitoring and diagnostic software and 3500 system configuration software).It combines the functions of the 3500/20 rack interface module(RIM)and the data collection capabilities of a communication processor(such as TDXnet)to continuously collect steady-state and transient dynamic(waveform)data and pass this data to the host software via an Ethernet link.

Product Features

Data Collection and Communication

The TDI module is able to continuously collect steady-state and transient dynamic data from M series monitors(such as 3500/40M,3500/42M,etc.).

The collected data is quickly and accurately transmitted to the host software through an Ethernet connection to ensure the real-time and accuracy of the data.

Compatibility and Integration

The TDI module integrates seamlessly with the 3500 monitoring system and its compatible software,providing convenient data access and management.

Supports a variety of communication protocols and interfaces for easy integration with other industrial automation equipment and systems.

Modular Design

The TDI module adopts a modular design,making installation,maintenance and expansion simpler and more flexible.

It is located in a slot near the 3500 rack power supply,usually occupying slot 1(next to the power supply),ensuring the compactness and reliability of the system.

Power Consumption and Interface

The TDI module consumes 10.5 watts of power and uses a USB-B front panel interface.

Supports 10Base-T or 100Base-TX Ethernet(auto-sensing)and 100Base-FX fiber optic Ethernet connections.

Alarm and Reset

The TDI module provides a rack reset button for easy system reset when needed.

Supports the capture and storage of pre-alarm and post-alarm data,which helps fault analysis and diagnosis.

Static and Dynamic Data Capture

The standard configuration of the TDI module includes static data capture capability.

Using the optional channel-enabled disk,dynamic and high-resolution transient data can be captured to meet higher-level data analysis and diagnostic needs.

Application Fields

The 3500/22M 138607-01 transient data interface module is widely used in industrial automation and mechanical equipment monitoring,such as power,petrochemical,metallurgy,aerospace and other fields.It is used to monitor rotating mechanical equipment such as turbines,compressors,pumps,etc.,and provides accurate and real-time data to help enterprises achieve efficient and reliable equipment operation and maintenance.
