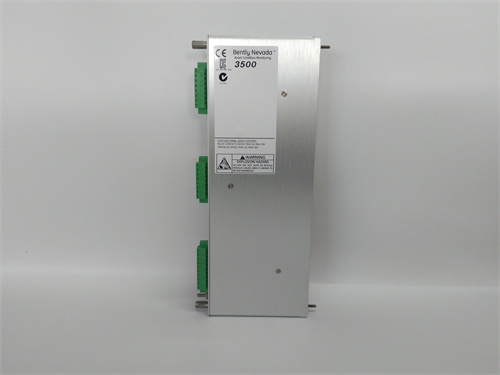

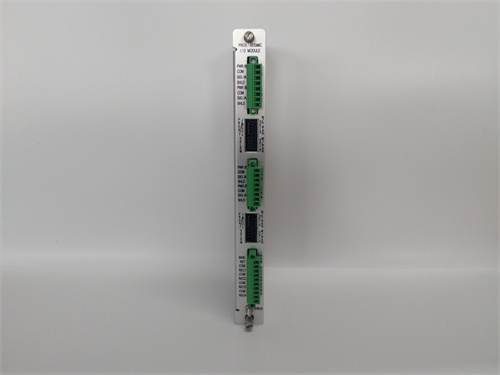

BENTLY 128229-01 Product Introduction

BENTLY 128229-01 is able to receive inputs from proximity and ground alarm sensors,condition these signals to provide various vibration and position information,and compare the conditioned signals with user-programmable alarms.This device is an important component in machine protection applications,driving alarms by continuously comparing monitored parameters with configured alarm set points,thereby providing important machine information to operators and maintenance personnel.

Functional Features

High-precision signal processing:BENTLY 128229-01 has high-precision signal processing functions to ensure the accuracy of monitoring and diagnostic results.Sensor output signals can be amplified,linearized and filtered to obtain accurate vibration or displacement data.

Multi-channel monitoring:As a four-channel monitor,it is able to monitor multiple sensor inputs simultaneously,which improves the flexibility and reliability of the system.Each channel can be independently programmed and configured to meet different monitoring needs.

Programmability:Using the 3500 rack configuration software,users can program each channel to perform various functions,such as monitoring vibration,thrust position,differential expansion eccentricity,tendon,acceleration,speed,absolute axis and circular acceptance area.

Wide application:BENTLY 128229-01 is widely used in machine protection and multi-field power management,such as vibration and displacement monitoring of compressors,fans,oxygen generators,water pumps,motors,turbines and other equipment.

Technical Specifications

Brand:BENTLY

Model:128229-01

Type:I/O module with internal barrier and internal terminal

Number of channels:4 channels

Input voltage range:typically 21 to 26V DC(may vary depending on product version)

Consumption:2.2W(maximum)

Operating temperature:-20 to+70°C(-4 to+158°F)

Operating relative humidity:5 to 95%(non-condensing)

Operating altitude:-300 to+3,000 meters(-1,000 to+10,000 feet)

Dimensions:approximately 11.4cm x 4.46cm x 10.5cm(HxWxD)

Application fields

BENTLY 128229-01 is suitable for various occasions requiring high-precision vibration and displacement monitoring,such as industrial automation,machinery manufacturing,energy and power,etc.In industrial automation systems,it can be used as a protection monitoring device for key equipment to improve the reliability and safety of the system.
