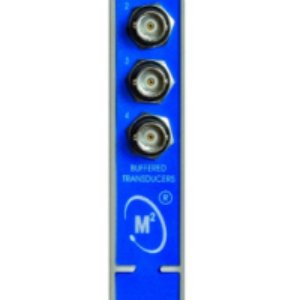

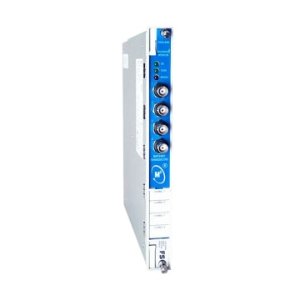

The 3500/40M Proximitor Monitor is a four-channel monitor designed to interface with Bently Nevada proximity transducers. It conditions input signals to provide various vibration and position measurements, comparing them with user-defined alarms.

Users can program each channel with the 3500 Rack Configuration Software to perform functions such as radial vibration monitoring, eccentricity measurement, REBAM analysis, thrust position monitoring, and differential expansion measurement.

Its primary functions include:

• Continuous machinery protection by comparing monitored parameters with configured alarm setpoints to trigger alarms.
• Provision of essential machine information for operational and maintenance purposes.

Each channel typically generates static values based on the conditioned input signal. Users can configure alert and danger setpoints for these static values. The monitor channels are programmed in pairs, with Channels 1 and 2 performing one function while Channels 3 and 4 perform another (or the same) function.

Features

• 1 to 4 proximity transducer signals
• Front panel LEDs: OK, TX/RX, Bypass
• User-programmable alarms
• 7 watt power consumption
• Total input impedance:
• Standard I/O 10 kΩ
• Accuracy:
  • Direct/gap/1X/2X: ±0.33% of F.S.
  • Smax: ±5% maximum

Ordering Information

Proximitor Monitor

• 3500/40M – AA-BBA: I/O Module Type
  • 01 Proximitor I/O Module with Internal Termination
  • 02 Proximitor I/O Module with External Terminations
  • 03 Proximitor I/O Module with Internal Barriers and Internal Terminations

  B: Hazardous Area Approval Option

  • 00 None
  • 01 CSA / NRTL / C (Class 1, Division 2)
  • 02 ATEX / IECEx / CSA (Class 1, Zone 2)

  Note: Agency Approval Option B-02 is only available with Ordering Option A-03.

External Termination Blocks

• 125808-01 Proximitor ET Block (Euro Style Connectors)
• 128015-01 Proximitor ET Block (Terminal Strip Connectors)
• 132242-01 Proximitor/ Seismic TMR ET Block (Euro Style Connectors)
• 132234-01 Proximitor/Seismic TMR ET Block (Terminal Strip Connectors)

Cables

• 3500 Transducer XDCR signal to External Termination (ET) Block Cable
• 129525 – AAAA-BB A: I/O Cable Length
• 0005: 5 feet (1.5 metres)
• 0007: 7 feet (2.1 metres)
• 0010: 10 feet (3.0 metres)
• 0025: 25 feet (7.6 metres)
• 0050: 50 feet (15.2 metres)
• 0100: 100 feet (30.5 metres) B: Assembly Instructions
• 01: Not assembled
• 02: Assembled

Spares

• 176449-01: 3500/40M Proximitor Monitor

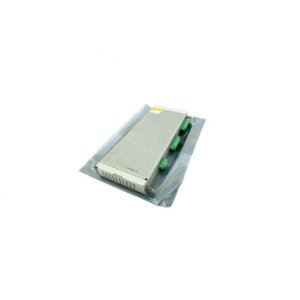

• 125680-01: Proximitor I/O Module with Internal Terminations
• 126615-01: Proximiotr I/O Module with External Terminations
• 135489-04: Proximitor I/O Module with Internal Barriers and Internal Terminations
• 149716-01: TMR Proximitor I/O Module with External Terminations
• 143488: 3500/40M Monitor User Guide
• 00580434: Internal I/O Module connector header, Euro style, 8-pin
• 00502133: Internal I/O Module connector header, Euro style, 12-pin
• 140734-01：PROXIMITOR MONITOR I/O MODULE
