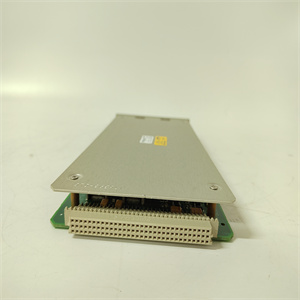

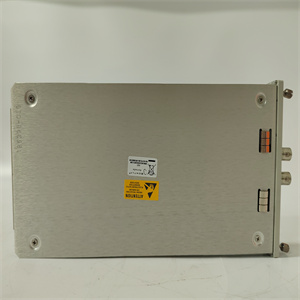

Bently Nevada 3500-25 149369-01 Enhanced Keyphasor Module Product Introduction
The BENTLY 3500/25 Enhanced Keyphasor Module is a part of the Bently Nevada 3500 machinery protection system. It is designed to provide accurate, reliable phase and speed measurements for a variety of rotating machinery applications. The module features a rugged construction and is designed to withstand harsh industrial environments.
Key Features
- Wide input range: 1 to 1,200,000 CPM (0.017 to 20 kHz)
- High output accuracy: ±0.1° phase, ±0.05% speed
- Low input impedance: 21.8 kΩ minimum
- Buffered output: 504 Ω maximum
- Rugged construction: IP67 rated
Product Applications
The BENTLY 3500/25 Enhanced Keyphasor Module is commonly used in a variety of rotating machinery applications, including
- Pumps
- Compressors
- Turbines
- Generators
- Motors
Product Specifications
| Specification | Value |
|---|---|
| Input range | 1 to 1,200,000 CPM (0.017 to 20 kHz) |
| Output range | 1 to 99,999 CPM (0.017 to 1667 Hz) |
| Input impedance | 21.8 kΩ minimum |
| Output impedance | 504 Ω maximum buffered output impedance |
| Accuracy | ±0.1° phase, ±0.05% speed |
| Power supply | 24 VDC ±20% |
| Power consumption | 5 watts maximum |
| Operating temperature | -40°C to +85°C (-40°F to +185°F) |
| Storage temperature | -65°C to +90°C (-85°F to +194°F) |
| Humidity | 0% to 95% non-condensing |
| Vibration | 0.06 g RMS, 20 Hz to 2 kHz |
| Shock | 5 g, 2 ms half-sine pulse |
| Enclosure rating | IP67 |
| Weight | 3 kg (6.6 lbs) |
Additional Information
For more information on the BENTLY 3500/25 Enhanced Keyphasor Module, please refer to the Bently Nevada product documentation. You can also contact a Bently Nevada representative for assistance.
