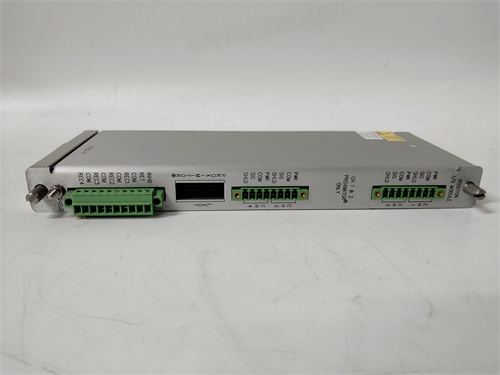

BENTLY 135137-01 Product Overview

BENTLY 135137-01 is designed and developed by Bently Nevada as part of the 3500/45 monitoring system.This position monitor is a 4-channel device that can receive inputs from rotary potentiometers,proximity sensors,DC linear variable differential transformers(DC LVDT),AC linear variable differential transformers(AC LVDT)and rotary position sensors(RPT).

Functional Features

High accuracy and reliability:BENTLY 135137-01 has high accuracy and reliability,and can accurately collect and transmit digital input signals to ensure system stability and accuracy.

Multi-channel input:The module has 4 independent monitoring channels,each of which can receive different types of sensor inputs,which improves the flexibility and reliability of the system.

Programmability:Users can program alarm set points,monitoring parameters,etc.to meet different application requirements.This can be done through the 3500 Frame configuration software or other related software.

Digital signal processing:The module may contain a processor and memory for high-precision processing and storage of input signals.Digital signal processing algorithms such as filtering,amplification,and calibration can be performed to extract useful information.

Communication interface:The module may provide a standard digital interface,such as a serial communication interface(such as RS-232,RS-485)or an Ethernet interface,allowing the module to exchange,transmit,or remotely monitor data with other devices or systems.

Fault diagnosis function:The module may have a fault diagnosis function for detecting and reporting abnormal conditions of sensors or signal processing modules,which helps to promptly discover and solve potential problems and improve system reliability and safety.

Technical Specifications

Brand:BENTLY

Model:135137-01

Manufacturer:Bently Nevada

Series:3500

Product Type:I/O Module with Internal Terminals

Dimensions:241mm x 24.4mm x 99.1mm

Weight:Approximately 0.44kg(may vary depending on product version)

Input Current:May include 100-400A(may vary depending on product version and configuration)

Voltage:Typically 24V(may vary depending on product version)

Application Fields

BENTLY 135137-01 can be widely used in various industrial fields,especially in situations where precise monitoring of the displacement and rotational position of mechanical systems is required,such as

Industrial Automation:Used to monitor and control the position or vibration of mechanical parts on production lines.

Power Plant:Monitor the displacement of rotating parts of key equipment(such as turbines,generators).

Aerospace:Monitor the displacement of moving parts in aerospace applications,such as aircraft,missiles or satellites.

Manufacturing:Measure and monitor the position of production equipment to ensure the accuracy of the production process.
