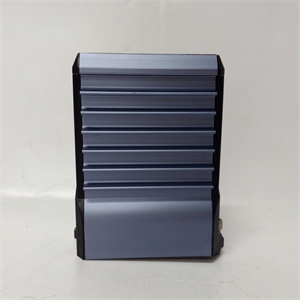

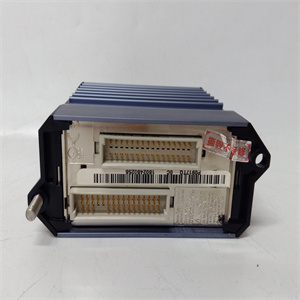

FOXBORO FBM215 Product Introduction

FOXBORO FBM215 module is a HART communication output module designed for industrial automation launched by Foxboro.It supports any combination of standard 4 to 20mA devices and HART devices,and provides eight isolated output channels.The FBM215 module can serve as a HART communication field device host,enabling the Foxboro DCS(distributed control system)to request and receive two digital messages per second from field devices.

Main Features

Eight-channel isolated output

The FBM215 module provides eight isolated output channels,each of which can output a standard 4 to 20mA analog signal or a digital HART frequency shift keying(FSK)signal superimposed on an analog signal.

HART communication function

Supports HART general commands,common commands,and specific device commands,but does not support burst communication mode.

Message pass-through function can be used to support two-way digital communication of HART devices.

Galvanic Isolation

All output channels are electrically isolated from each other,ground and module logic,ensuring signal independence and safety.

Rugged and Durable

Modules are designed with rugged housings for use in G3(harsh)environments.

Chassis designed specifically for mounting Foxboro DCS Fieldbus Modules(FBMs)provide various levels of environmental protection.

Easy Installation and Maintenance

Modules are mounted on Compact 200 Series baseplates and can be mounted on DIN rails or mounted horizontally in racks using kits.

When removing/replacing modules,there is no need to remove field device terminal cables,power or communication cables.

Visual Operation

Light Emitting Diodes(LEDs)are installed on the front of the module to visually display the module’s operating status and channel communication activity.

Wide Compatibility

HART instruments that comply with HART specifications 5,6 or 7 can be used.

Supports HART Universal Commands that interface with Foxboro Evo™Control Core Service System.

Application Fields

FOXBORO FBM215 modules are widely used in the following fields

Industrial Automation:used for HART communication and analog signal output control in factory automation,mechanical equipment and production lines.

Process Control:used to monitor and control process variables and achieve precise process control in process control fields such as chemical,petroleum,and pharmaceutical.

Manufacturing:used for signal transmission and control in manufacturing automation systems.

Technical Parameters(Part)

The main technical parameters of the FBM215 module may include(but are not limited to)

Number of output channels:8

Signal type:standard 4 to 20mA analog output signal,digital HART FSK signal superimposed on the analog output signal

Communication mode:point-to-point,master/slave,asynchronous,half-duplex,1200 baud

Error checking:each byte has a parity check,and each message has a CRC check byte

Maximum distance(FBM215 to field device):in accordance with HART FSK physical layer specification HCF_SPEC-54,up to 3030 meters(10,000 feet)

Current output:analog accuracy(including linearity)is±0.05%of the range(between 4mA and 20mA),and the maximum output load is 750Ω

Power supply requirements:input voltage range(redundant)is 24V DC±5%,and the maximum power consumption is 7W

Temperature range:the operating temperature range of the module and terminal components is-20 to+70°C(-4 to+158°F)
