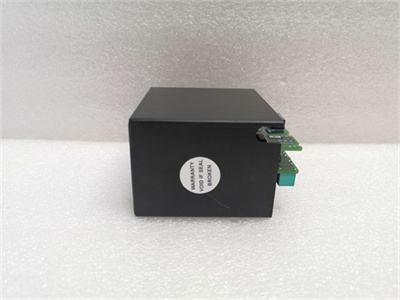

GE IC670ALG310 Product Overview

The GE IC670ALG310 is an 8-point isolated analog voltage source output module that accommodates two groups(4 each)of isolated 8 voltage outputs.The module is designed for industrial automation and control systems,providing high-precision and high-reliability analog signal output.

Technical characteristics

Analog output channels

Provides 8 analog voltage output channels,each with user-configurable scaling.

Supports 8 output voltage channels from-10V to+10V with 14-bit resolution.

An overrange output up to approximately 10.25V is provided.

Data Type and Calibration

Use word and bit data types.

Can be field calibrated or reset to factory calibration,all calibration data is stored in flash memory.

Channel configuration and status indication

Independent channel configuration,including output range and scale parameters.

Reporting underrange/overrange fault LED indicators,a single indicator shows the module status

On:Normal operation.

Flashing intermittently:Module failure.

OFF:No backplane power,no user power,or fatal fault.

Overrange/Underrange

If the engineering unit value sent by the host results in an output value within approximately 50mV of the module’s maximum or minimum value,the overrange/underrange indication will be triggered.

User power supply and interface

The module needs to be powered by a user power supply.

The following types of data are used:0-3 bytes of discrete input data(used to display module and channel status),0-2 bytes of discrete output data(used to clear alarms).

Module configuration and status

Each channel can be configured as active or inactive.If a channel is inactive,its output is 0V and the analog output data of that channel is not used.

The alarm(optional discrete input)data for channels configured as inactive will not be updated.If a channel’s configuration changes from Active to Inactive,the module stops updating its alarm data.

The module’s local output default value can be configured to determine whether the module sets the actual output voltage to zero volts or holds its last value when a module error occurs.

Diagnosis and alarm functions

Enhanced diagnostic capabilities easily detect over-range and under-range conditions,user power supply failures and uncalibrated modules,ensuring stable system operation.

Users can set alarm functions for different events.When the output value does not meet the 50mV requirement of the module’s maximum or minimum output setting,the module will treat the output value as under-range and over-range and trigger an alarm.

Communication interface

It usually has a communication interface that can exchange data and communicate with control systems or other devices.

Other features

Built-in diagnostics and self-test functions are used to detect module status and performance issues to ensure normal operation of the module.

High reliability and shock resistance,designed for use in industrial environments,ensuring stable operation under harsh conditions.

Application fields

GE IC670ALG310 modules are widely used in the following fields

Industrial control systems:play an important role in the control and management of various production lines.

Process control:Applicable to process monitoring and regulation in chemical,pharmaceutical,food processing and other industries.

Data collection:used to collect and analyze key data in the production process to provide support for production optimization.

Monitoring and feedback control:Excellent performance in real-time monitoring and feedback control of equipment operating status.

Conclusion

GE IC670ALG310 is a powerful and stable analog output module with high accuracy,high reliability,easy installation and configuration.It can meet the needs of various industrial automation applications and provide strong support for the stable operation of industrial automation and control systems.
