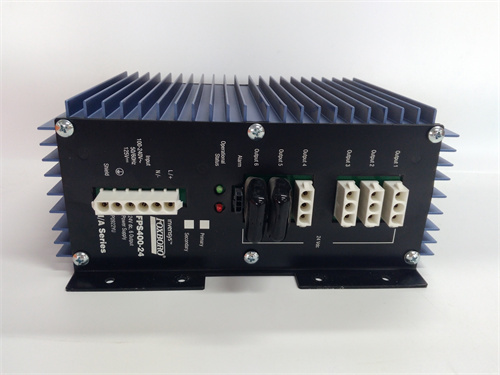

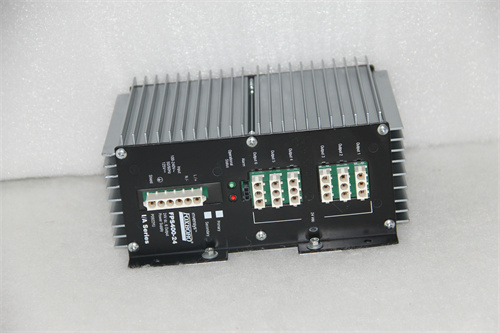

FOXBORO FPS400-24 Product Details

FOXBORO FPS400-24 is a type of Foxboro standard 200 series power supply,designed for industrial automation and process control applications.It provides 24V DC power to the standard 200 series baseboard,with a power of up to 400W,and is certified for use in Zone 2 and Zone 2 applications.

Input Voltage and Power Type

FPS400-24 provides two power supply options with different input voltages

120/240V AC or 125V DC input(model P0922YU).

24V DC input(model P0922YC).

Product Features

Wide range of input voltage:FPS400-24 can accept a wide range of AC and DC input voltages to meet the power supply requirements of different regions around the world.

High efficiency:The power module has high conversion efficiency,the P0922YU model can reach up to 95%,and the P0922YC model is also highly efficient,reducing energy consumption.

Power factor correction:The product has power factor correction function,which helps to improve the quality of the power grid.

Protection function:It has dual-stage current limiting and overvoltage shutdown circuits to protect the module and load from damage.

Transformer isolation:The 24V DC output is isolated by a transformer,which improves the stability and safety of the power supply.

Certification and standards:The product complies with international standards such as UL,UL-C and CENELEC,and is suitable for harsh environments.

Installation and maintenance:It supports horizontal or vertical DIN rail installation,which is convenient for users to install and maintain.

Application field

The FPS400-24 power module is widely used in industrial automation,process control,power systems,manufacturing and other fields.

It can be used to provide stable power supply for control systems,fieldbus modules(FBM),field equipment,etc.
