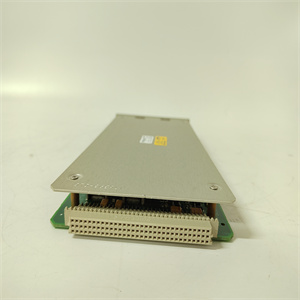

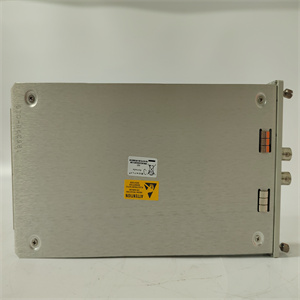

BENTLY 3500/25 149369-01 Product Introduction

BENTLY 3500/25 149369-01 is part of the Bently Nevada 3500 series vibration monitoring system,which is widely praised for its modularity and scalability and is widely used in the industrial field.The 149369-01 module is a key component in the series,responsible for providing key phase detector signals for accurate measurement of parameters such as rotation speed,vibration amplitude and phase of rotating shafts.

Technical Specifications

Voltage and Current

Key phase sensor power supply:-24 Vdc,maximum 40 mA per channel(also said to be voltage range 18 to 36VDC,maximum current 500mA).

Power consumption:typical value is 3.2 watts(also said to be maximum 3.2W).

Dimensions and weight

Dimensions:119.9 mm high(some say 1U high,about 3.5 cm,19 inches wide,about 48.3 cm,2.5 inches deep,about 6.4 cm),24.4 mm wide,256.5 mm deep.

Weight:about 0.34 kg(some say about 3.5 kg).

Operating temperature

-30°C to+65°C(some say-40°C to 85°C),depending on the use of the internal safety barrier I/O module or the key phase I/O module.

Input and output

Input signal:analog signal from a proximity probe or magnetic pickup,input signal range+0.8 V to-21.0 V(non-isolated input/output module)or+5V to-11V(isolated input/input module),input impedance minimum 21.8 kΩ.

Output signal:Digital keyphaser signal,used to indicate when a specific mark on the rotating shaft is aligned with the keyphaser sensor,output range 1 to 99999 cpm(0.017 to 1667 Hz),output impedance maximum buffered output impedance 504Ω.

Number of channels

This module is a dual-channel module that can monitor two different signal sources at the same time.In normal configuration,the 3500 mechanical protection system can accept four keyphaser signals;in paired configuration,it can accept eight keyphaser signals.

Response time

Less than 1 millisecond.

Compatibility

This module is compatible with other modules in the 3500 series and can be seamlessly integrated into existing systems.At the same time,it also supports field-upgradeable firmware and asset management data reporting.

Application and Function

The BENTLY 3500/25 149369-01 module is mainly used to provide keyphase signals for the monitor module in the 3500 frame.By receiving input signals from eddy current sensors or electromagnetic sensors and converting them into digital key phase signals,the module can accurately indicate when the key phase mark on the shaft passes the key phase probe.This is essential for measuring machine speed,monitoring machine axial vibration,and predicting the operating status of equipment.

In addition,the module is also widely used in industrial fields such as oil and gas,power,petrochemical,papermaking,and steel for monitoring and protecting key rotating equipment such as generators,turbines,pumps,and compressors.By monitoring vibration and other parameters in real time,timely detecting equipment abnormalities and taking corresponding maintenance measures,it helps to improve equipment reliability and efficiency,reduce downtime,and prevent accidents caused by mechanical failures.
