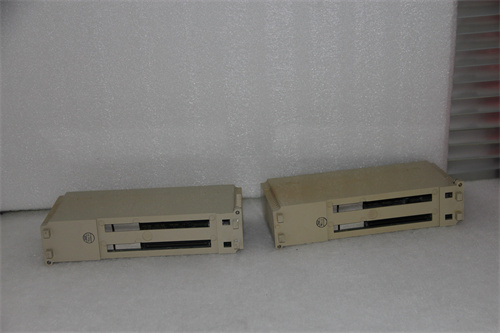

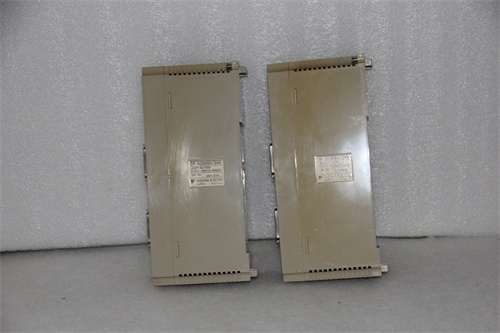

Yaskawa CP-9200SH Product Introduction

Yaskawa CP-9200SH is an integrated controller.The controller consists of multiple modules,including power module,motion module,communication module,etc.Each module can execute user programs independently.

Module composition and function

Power module:can be set to 24V,100V and 200V,divided into short mounting base and long mounting base.Up to four mounting bases can be connected,and multiple modules can be installed on each base.

CPU module:equivalent to the human brain and heart,constantly collecting input signals,executing user programs,and refreshing the system output.The CPU module is mainly composed of CPU chip and memory,and the memory is used to store programs and data.

Motion module:used to realize the motion control of the machine,including the setting and adjustment of parameters such as speed,position,acceleration,etc.

Communication module:supports multiple communication protocols,used to realize data exchange and communication between the controller and other devices.

SVA module:It has motion control function,and also has the functions of general counter modules such as reversible counter,interval counter and frequency measurement.Users can achieve motion control suitable for the machine by setting servo parameters.

Technical features

High performance:CP-9200SH has powerful processing power and high-speed data processing capabilities,which can meet the needs of complex machine control.

High reliability:With modular design,each module is relatively independent,which reduces the failure rate.At the same time,the controller also supports hot-swap function,which is convenient for module maintenance and replacement.

Flexibility:Users can choose different modules and configurations according to actual needs to meet different machine control needs.

Easy programming:The controller supports multiple programming languages,such as ladder diagrams,instruction tables,etc.,which is convenient for users to program and debug.

Application field

CP-9200SH is widely used in industrial automation,robot control,CNC machine tools,production line control and other fields.Its high performance,high reliability and flexibility make it an ideal choice for various complex machine control systems.
