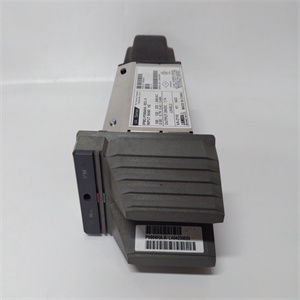

FOXBORO IPM2-P0904HA Product Details

IPM2-P0904HA is an industrial power module,mainly used to provide power for various modules in Foxboro I/A series control systems.The following is a detailed introduction to the product.

Basic features

Input voltage:It has an optional input voltage range of 100/120/220/240 VAC,which provides users with flexible options to adapt to different grid voltage requirements.

Output voltage:It provides a stable 39 VDC output voltage to ensure that the connected modules can obtain a stable power supply.

Status indicator:Equipped with a status indicator,you can easily monitor the working status of the power module and detect and deal with potential problems in time.

Protection function

Overcurrent protection:When the output current exceeds the rated value,the IPM2-P0904HA will automatically cut off the power supply to protect the connected devices and modules from damage.

Overvoltage protection:When the output voltage is too high,the power supply will also be automatically cut off to ensure the safe operation of the system.

Short circuit protection:When a short circuit occurs at the output end,the power module can also quickly cut off the power supply to prevent damage caused by the short circuit.

Application Advantages

High reliability:It uses industrial-grade components with high reliability and is suitable for working in harsh industrial environments.

Good compatibility:It has good compatibility with the Foxboro I/A series control system and can be directly replaced without additional adaptation or adjustment.

Easy installation:The modular design makes the installation process more convenient and quick,reducing installation costs and time.

Simple maintenance:The status indicator light is clear and the fault diagnosis is convenient,so users can easily identify and handle faults.

Technical parameters

Output current:1.7A

Operating temperature:0℃~55℃,which ensures that the power module can work normally under various environmental conditions.

Application field

Process control:IPM2-P0904HA can be used in process control systems in chemical,petroleum,electric power and other industries to provide stable power supply for various sensors,actuators,etc.

Industrial automation:It is widely used in various industrial automation systems,such as motor control and material handling on production lines.

Data acquisition:In the data acquisition system,it provides power support for various data acquisition equipment.

In summary,IPM2-P0904HA is a powerful and stable industrial power module with a wide range of applications and significant advantages.For more information or to purchase this product,please visit the relevant official website or contact its technical support team.
