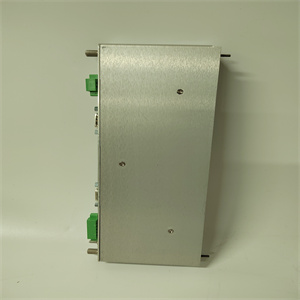

Bently Nevada 3500/20-01-02-00 125768-01 RIM I/O Module Product Details

The Bently Nevada 3500/20-01-02-00 125768-01 RIM I/O Module with RS232/RS422 Interface is a crucial component of the Bently Nevada 3500 System, which is widely used for machinery protection and condition monitoring.

General Information

• Manufacturer Bently Nevada
• Part Number 3500/20-01-02-00 125768-01
• Product Type RIM I/O Module with RS232/RS422 Interface (Spares)
• Series 3500 System

Description

This module serves as a primary interface to the 3500 rack, enabling communication between the rack and external devices. It also performs various functions essential for system operation, including

• Configuring the rack
• Retrieving machinery information
• Supporting external communications processors

Key Features

• RS232/RS422 Communication Interface Provides a versatile communication link for data exchange with external devices, including PCs, PLCs, and SCADA systems.
• Data Transmission Protocol Utilizes a proprietary protocol for reliable and secure data transfer between the rack and external systems.
• Modbus TCP/IP Support Enables integration with Modbus TCP/IP networks, facilitating communication with industrial control systems and other Modbus-compatible devices.
• Redundancy Options Supports redundant configurations to enhance system reliability and minimize downtime.

Applications

The Bently Nevada 3500/20-01-02-00 125768-01 RIM I/O Module with RS232/RS422 Interface finds extensive applications in various industries for machinery protection and condition monitoring, including

• Oil and gas
• Power generation
• Petrochemical
• Manufacturing
• Pulp and paper

Specifications

• Communication Interface RS232/RS422, Modbus TCP/IP
• Baud Rate Up to 38.4 kbaud
• Power Requirements 24 VDC
• Operating Temperature -40°C to 85°C (-40°F to 185°F)
• Storage Temperature -40°C to 85°C (-40°F to 185°F)
• Humidity 95% non-condensing
• Dimensions 241.3 mm x 24.4 mm x 241.8 mm (9.5 in. x 0.96 in. x 9.52 in.)
• Weight 2.2 kg (4.85 lbs.)
