Schneider E69F-BI2 Product Overview

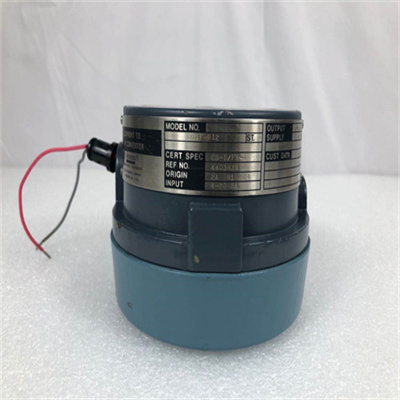

The E69F-BI2 is a field-mounted current-to-pneumatic (I/P) signal converter manufactured by Schneider Electric (formerly Foxboro). It is designed to convert a 4-20 mA DC input signal into a proportional pneumatic output signal ranging from 20 to 100 kPa (3 to 15 psi) or 0.2 to 1.0 bar or kg/cm².

Parameters

• Part Number E69F-BI2
• Series E69F
• Input Signal Range 4-20 mA DC
• Input Impedance 170 Ω
• Output Signal Range 20-100 kPa (3-15 psi) or 0.2-1.0 bar or kg/cm²
• Output Action Direct or reverse
• Supply Pressure 35-250 kPa (5-36 psi)
• Air Consumption 0.75 cfm (standard conditions) at 140 kPa or 20 psi supply
• 1.0 cfm (standard conditions) at 240 kPa or 35 psi supply
• Operating Temperature -40°C to 85°C (-40°F to 185°F)
• Enclosure Bolted cover, weatherproof (for use in all non-explosionproof applications)
• Dimensions 150 x 76 x 51 mm (5.91 x 3.00 x 2.01 in)
• Weight 1.3 kg (2.87 lb)

Features

• High accuracy and repeatability
• Rugged construction for harsh environments
• Easy to install and maintain
• Wide range of output signal options
• Intrinsically safe (IS) and explosionproof (XP) options available

Applications

The E69F-BI2 is commonly used in a variety of industrial applications, including

• Process control
• Pneumatic valve actuation
• Signal conditioning
• Loop control
