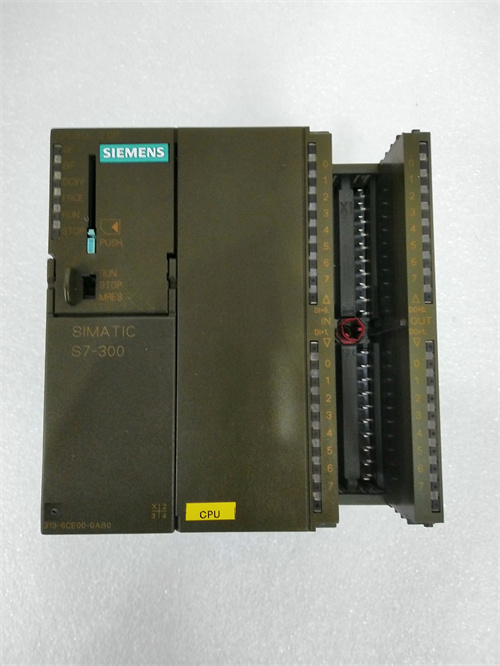

Siemens 6ES7313-6CE00-0AB0 Product Introduction

Siemens 6ES7313-6CE00-0AB0 is a PLC(Programmable Logic Controller)product produced by Siemens,specifically a CPU module in the SIMATIC S7-300 series.The following is a detailed introduction to the product.

Basic information

Brand:Siemens

Model:6ES7313-6CE00-0AB0

Series:SIMATIC S7-300

Type:CPU module(COMPACT CPU WITH MPI)

Technical specifications

Number of input and output points:16 digital inputs(DI)/16 digital outputs(DO)

Counters:3 fast counters(30KHZ)

Communication interface:Integrated DP interface(PROFIBUS-DP)

Power supply:Integrated 24V DC power supply,rated voltage 24V(allowable range 20.4V to 28.8V)

Working memory:32KBYTE(not expandable),Micro Memory required Card(MMC)

Load memory:Expandable FEPROM,up to 4Mbyte(using MMC)

Processing speed:Bit operation typical value is 0.1µs,word operation typical value is 0.2µs,fixed-point arithmetic operation typical value is 0.5µs,floating-point arithmetic operation typical value is 1µs

Program and data capacity:Program capacity is 516,data capacity is 1288(this data may vary depending on different sources or configurations)

Functional characteristics

High performance:Provides high-speed instruction processing and floating-point computing capabilities,suitable for applications in the mid-to-low-end performance range.

Modular design:Supports modular expansion,which is convenient for users to configure according to actual needs.

Integrated communication:Integrated PROFIBUS-DP interface,convenient for communication and data exchange with other devices.

User-friendly:Provides a user-friendly parameter assignment and programming environment,reducing entry barriers and training costs.

Diagnostic function:The CPU’s intelligent diagnostic system continuously detects system functions,records error information and specific system events,and facilitates troubleshooting.

Password protection:Use the password protection function to protect user information from unauthorized copying and modification.

Application scenarios

Industrial automation:used to control various equipment on the production line to achieve automated production.

Process control:used to monitor and control the production process in the chemical,petroleum,pharmaceutical and other industries.

Machinery manufacturing:participate in the programming and control of machine tools,production lines and other equipment to improve production efficiency.
