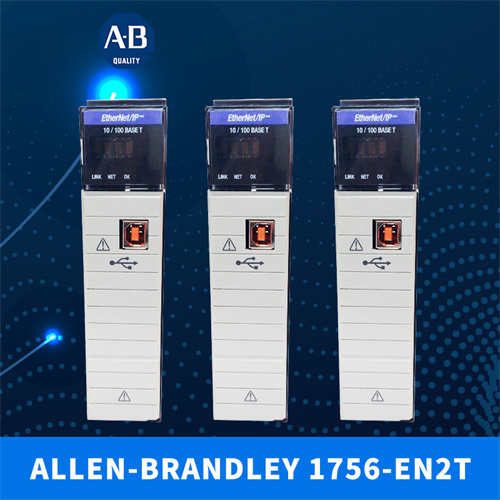

A-B-1756-EN2T Product Details

A-B-1756-EN2T is an EtherNet/IP communication module of the ControlLogix series produced by Rockwell Automation.This module is mainly used to establish communication connections between ControlLogix controllers and other devices that support the EtherNet/IP protocol to achieve data exchange and control.

Product Features

High performance:Supports high-speed communication of 10/100 Mbps,which can meet the needs of real-time data transmission.

Multiple connections:Supports 128 TCP/IP connections and 256 Logix connections,and can connect multiple devices.

Flexible configuration:Through software configuration,the parameters of the module can be flexibly set to adapt to different application scenarios.

High reliability:Adopts industrial-grade electronic components with high reliability and stability.

Main functions

EtherNet/IP communication:Realize communication with other devices through the EtherNet/IP protocol.

Data transmission:Transmit control information,I/O data,etc.

Network management:Provides network management functions to facilitate users to configure the network and diagnose faults.

Product application

Industrial automation system:Used to build distributed control systems to achieve interconnection between multiple devices.

Process control system:Used to collect process data and realize process control.

Data acquisition system:Used to collect field data and transmit it to the host computer.

Technical parameters(please refer to official data for specific parameters)

Network interface:1 10/100 Mbps Ethernet interface

Supported protocol:EtherNet/IP

Number of connections:128 TCP/IP connections,256 Logix connections

Power supply:From ControlLogix controller

Operating temperature:0℃~55℃
