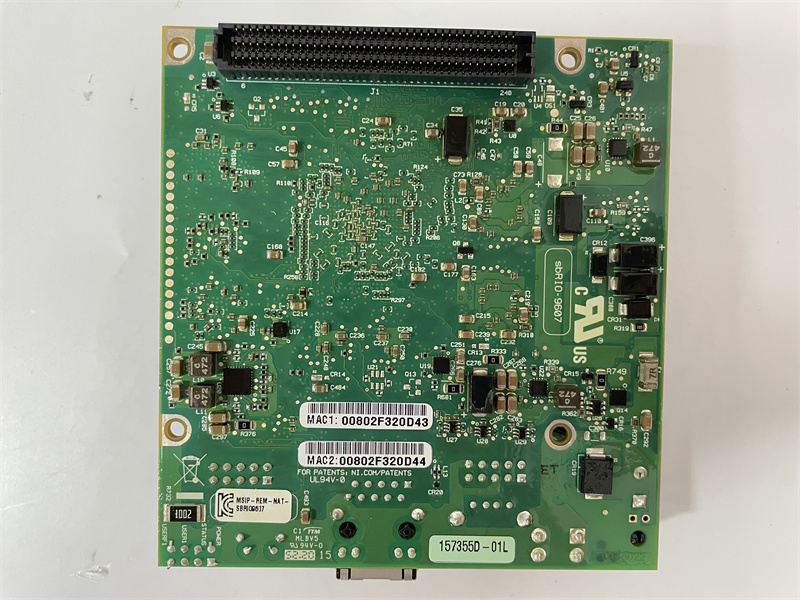

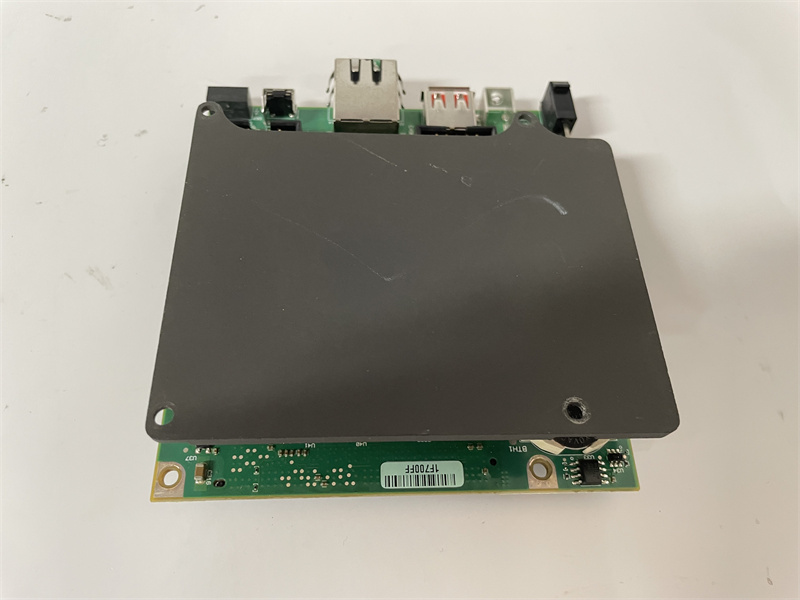

NI SBRIO-9607 Product Overview

NI SBRIO-9607 is an embedded system control motherboard module of the Single-Board RIO(Reconfigurable I/O)series launched by National Instruments(NI),which is usually used for data acquisition,signal processing and embedded control applications.The following is a detailed introduction to the product.

Product Overview

Part Number:783816-02 and 783816-01.

Development Company:National Instruments.

Product Series:CompactRIO Series.

Core Components and Architecture

Processor:Dual-core processor with ARM Cortex-A9 architecture,providing a processor speed of 667 MHz.

FPGA:Made of Xilinx Zynq-7000 reconfigurable FPGA,it can be reconfigured to adapt to different real-time control tasks and data processing requirements,providing low latency and high throughput data processing capabilities.

Storage and Durability

Memory:With 512 MB non-volatile memory and 512 MB volatile memory(DRAM).

Durability:100,000 cycles of flash memory restart durability.

IV.Input,Output and Connectivity

RMC Connector:Provides a RIO Mezzanine Card(RMC)connector with 96 single-ended digital input/output lines that connect directly to the FPGA.

Digital I/O:Up to two additional peripherals and C Series devices can be added through the RMC connector.

I/O Interface:Includes digital input/output(DIO),analog input/output(AI/AO),counter/timer,etc.,as well as communication interfaces such as UART,SPI and Ethernet for connecting to external sensors,actuators and other devices.

Software and Operating System

Operating System:Supports NI Linux Real-Time(32-bit)real-time operating system to ensure high-precision and reliable real-time control performance.

Software Support:Can be tightly integrated with NI’s LabVIEW system design software,allowing users to quickly develop applications,control algorithms and user interfaces using graphical programming methods.

VI.Application Fields

NI SBRIO-9607 is widely used in real-time control,data acquisition,signal processing,and industrial automation due to its powerful processing capabilities,rich I/O interfaces,and flexible programmability.For example,it can be used to implement high-precision digital filters to remove noise or specific frequency bands in signals,thereby meeting the needs of signal processing applications.

Product Features

High performance:Equipped with high-performance embedded processors and FPGAs,it provides powerful data processing and control capabilities.

Flexibility:FPGA programmability enables it to adapt to different real-time control tasks and data processing requirements.

Reliability:Industrial-grade design,suitable for harsh industrial environments and long-term stable operation applications.

Easy to integrate:Tightly integrated with NI’s LabVIEW system design software to reduce development difficulty and cost.
