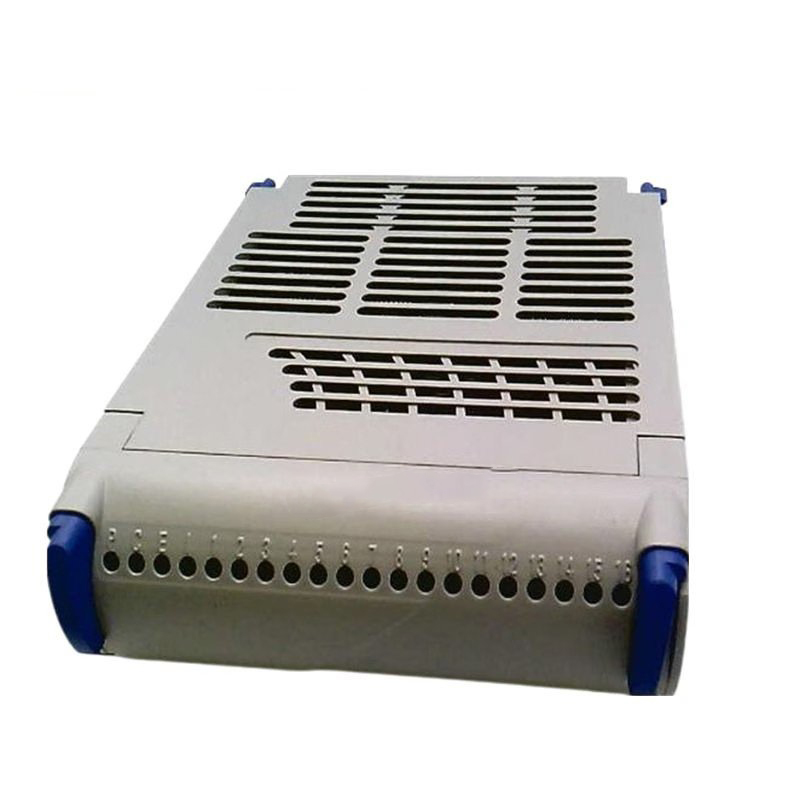

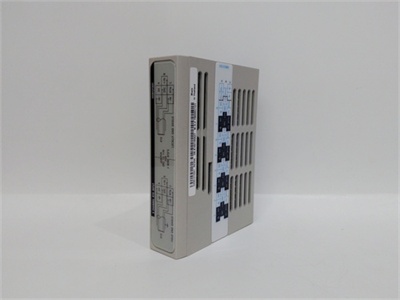

WESTINGHOUSE 5X00357G04 Product Overview

WESTINGHOUSE 5X00357G04 is a high-performance input contact module designed specifically for industrial automation control systems,supporting the acquisition and transmission of digital and analog signals.This module adopts a modular structure,compatible with multiple communication protocols,and is suitable for equipment status monitoring and control in fields such as power,chemical,metallurgical,and energy.It has the characteristics of high reliability,fast response,and flexible configuration.

technical specifications

Parameter Name Specification Unit

Input type:digital quantity,analog quantity(voltage/current)-

Communication interface RS-485,MODBUS RTU-

Signal range 0-5V DC,4-20mA-

Response time≤50ms-

Working temperature-20°C to+70°C-

Installation method DIN rail type-

Protection level IP20-

Power requirement 24V DC±10%V

Main features and advantages

High reliability:Designed with anti-interference circuits and manufactured with high-quality materials,it supports long-term stable operation and is suitable for harsh industrial environments.

Fast response:Modular structure and optimized signal processing algorithms ensure real-time capture of signal changes,with a response time of less than 50 milliseconds.

Multi signal compatibility:Supports digital contact inputs(such as switch signals)and analog inputs(voltage/current)to meet the requirements of complex control systems.

Flexible configuration:input type and signal range can be customized through software,and different sensor or device interfaces can be adapted.

Communication compatibility:Built in RS-485 interface and MODBUS RTU protocol,easy to integrate into mainstream control systems such as PLC and DCS.

application area

Industrial automation:used for monitoring the status of production line equipment(such as motor start stop,valve switch feedback).

Energy management:integrated into the power system,real-time collection of parameters such as transformer temperature and current.

Process control:Monitor analog signals such as pressure and flow in the chemical and metallurgical industries to ensure production safety.

Safety monitoring:As an input interface for fire protection systems and emergency shutdown devices,it improves the speed of fault response.
