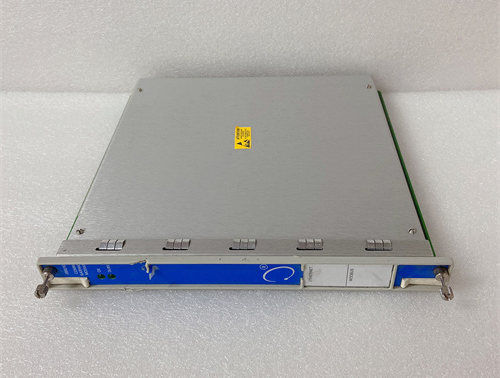

BENTLY 3500/92 Product Overview

BENTLY 3500/92 is a communication gateway module produced by Bently Nevada,which is widely used in industrial automation and monitoring systems.The following is a detailed introduction to BENTLY 3500/92.

Product Overview

The BENTLY 3500/92 communication gateway module has powerful communication capabilities and supports Ethernet TCP/IP and multiple serial communication protocols(such as RS232/RS422/RS485).It can be integrated with various process control and other automation systems to achieve real-time data transmission and remote monitoring.

Technical Features

Wide communication protocol support

Support Modicon Modbus protocol(via serial communication).

Support Modbus/TCP protocol(an alternative form of serial Modbus for TCP/IP Ethernet communication).

Support Bently Nevada proprietary protocol for communication with 3500 frame configuration software and data acquisition software packages.

Flexible Ethernet connection

Use RJ45 connector to support 10BASE-T star configuration Ethernet network.

Provide high-speed data exchange capability to ensure the real-time and accuracy of data.

Configurable Modbus registers

The 3500/92 module has a configurable Modbus register utility that provides the same functions as the original 3500/90 module.

Communication through Modbus registers improves the flexibility and customizability of the device.

High reliability design

The use of high-quality materials and manufacturing processes ensures that the module works stably in various industrial environments.

Supports dual power supply slots and waterproof housings(such as NEMA 4X),suitable for environmental protection or air purification occasions.

System configuration protection

The system configuration is protected by a software password to prevent unauthorized changes or tampering with the configuration.

Ensure the security and stability of the system.

LED indicators

The LED indicators on the front panel of the device(such as OK LED and TX/RX LED)can display the operating status and communication status of the device.

Convenient for users to troubleshoot and maintain equipment.

Application areas

The BENTLY 3500/92 communication gateway module is suitable for various industrial automation and monitoring systems,including but not limited to

Power industry:used to monitor the operating status of equipment such as generators and transformers.

Oil and gas industry:used to monitor wellhead equipment,pipeline transportation and other processes.

Manufacturing industry:used for equipment monitoring and fault diagnosis on production lines.

Transportation:used for equipment monitoring in railways,roads and aviation.

Other industrial applications that require remote monitoring and data management.
